UNION SWITCH & SIGNAL Microlok II System Startup, Troubleshooting, and Maintenance
4-50 September 2000 SM-6800C Rev. 2.5
4.14 CONFIGURING THE PROGRAM SETTINGS

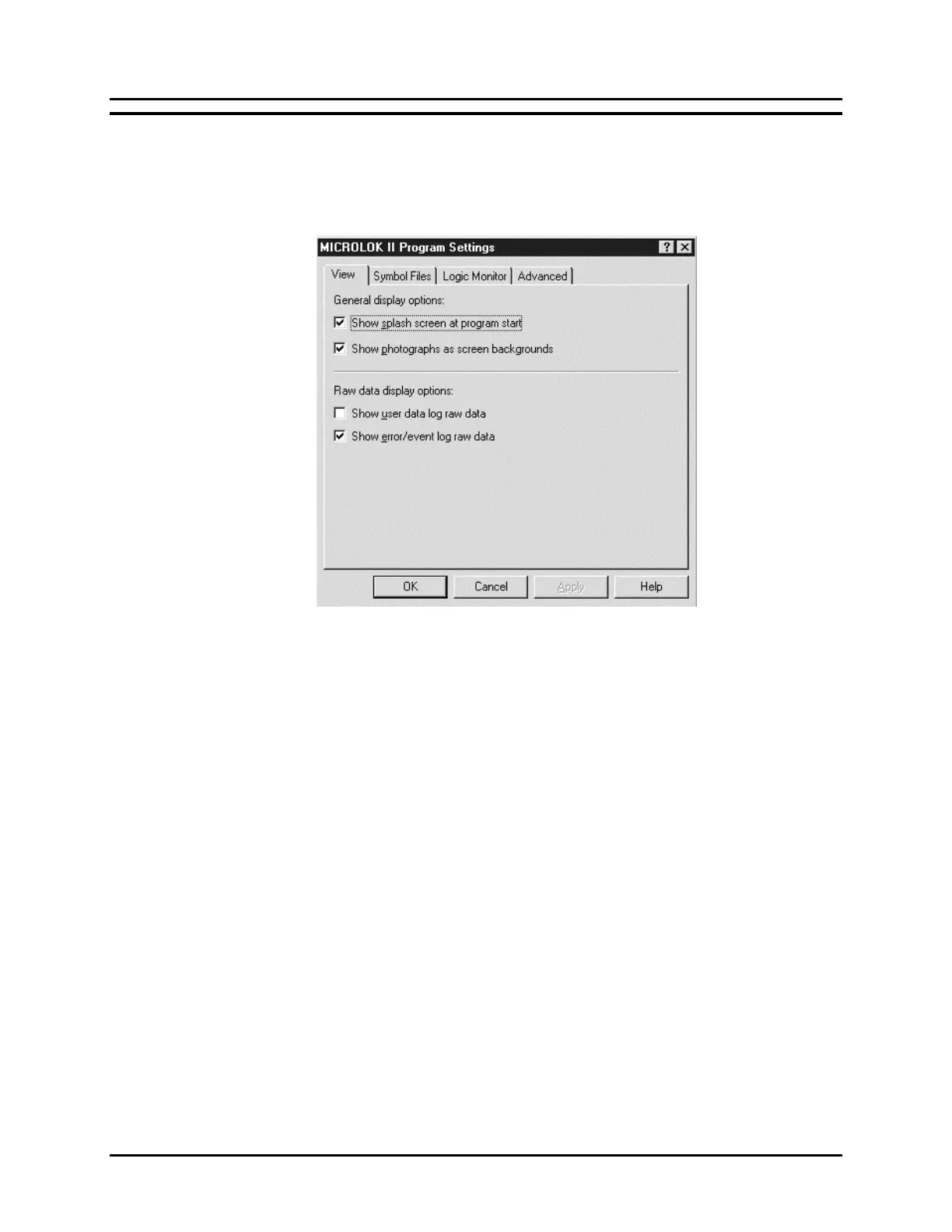

The Program Settings dialog is used to modify the way in which the system stores and displays
data. These options can also change the general appearance of the screens. The four categories of
settings are shown in the example below, which is the default Program Settings display.
The program settings options enable you to modify the settings in four listed categories:
• View – (The default category, as shown in the example above.) You can specify display
options for the general display and for the type of raw data that the system provides. The raw
data displayed for both the user data log and event and error logs is the data being sent
directly from the system before the tool interprets it.
• Symbol Files – When you click on the “Symbol Files” category tag, the display appears as
shown below.
