UNION SWITCH & SIGNAL Microlok II System Startup, Troubleshooting, and Maintenance
4-32 September 2000 SM-6800C Rev. 2.5
4.9 RESETTING THE MICROLOK II SYSTEM
This tool enables you to reset the Microlok II CPU from the laptop computer. The reset function
is used mainly to clear system faults and return the system to normal operation.
To reset the Microlok II CPU, click on the
Reset MICROLOK II button on the Maintenance Tools

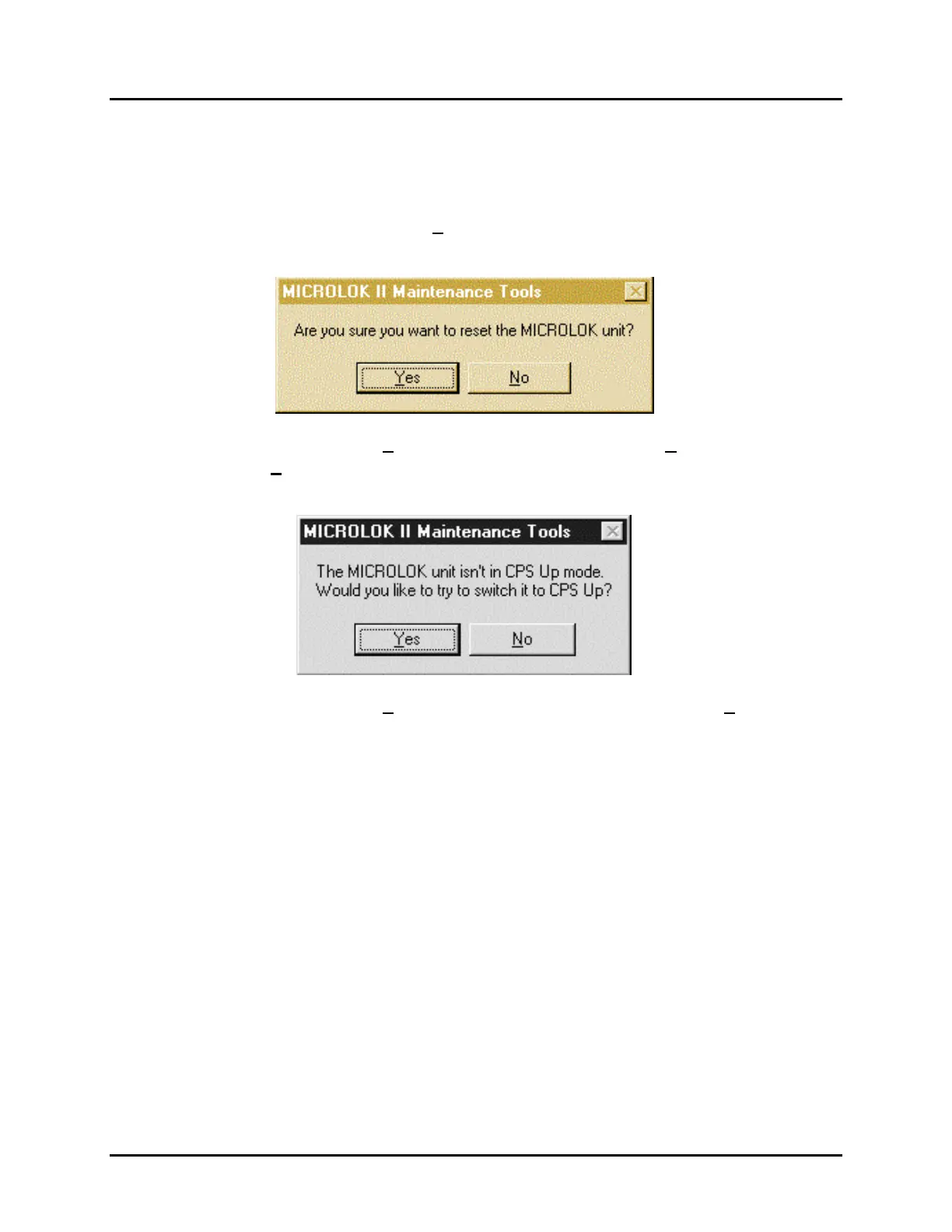

main menu. The system displays a confirmation screen, as shown below:
The system prompts you to click on Yes to confirm the reset operation, or No to cancel the
request. Click on the Yes button to reset Microlok II. At this point, if the CPS is down the system
displays the following window.
The system prompts you to click on Yes if you would like to set it to CPS up, and No if no
attempt is desired. The system then resets itself with no further user interaction.
When the reset is complete, the CPU upper 4-character display will scroll the phrase US&S
MICROLOK II
and the lower 4-character display will scroll the pre-programmed application name.
The Maintenance Tools main menu will again be displayed on the laptop computer screen.
