4.12 CONFIGURING THE MICROLOK II SYSTEM
NOTE
The following subsections present general information concerning the use of the Tools
program in configuring the Microlok II system. Refer to chapter 6 in this manual for the
complete configuration procedure.
The configuration tool provides a wide variety of options for checking and modifying the
configuration of the Microlok II system hardware and software. Three types of options are
provided within this tool:
• System configuration options enable you to modify the general system parameters and the
user parameters, and to assign specific parameters to the user data log (section 4.6.2).
• Board configuration options enable you to enable/disable and configure the individual
Microlok II system printed circuit boards.
• Link configuration options enable you to configure the Microlok II system communication
links.
Use the following procedure to access the system configuration options:

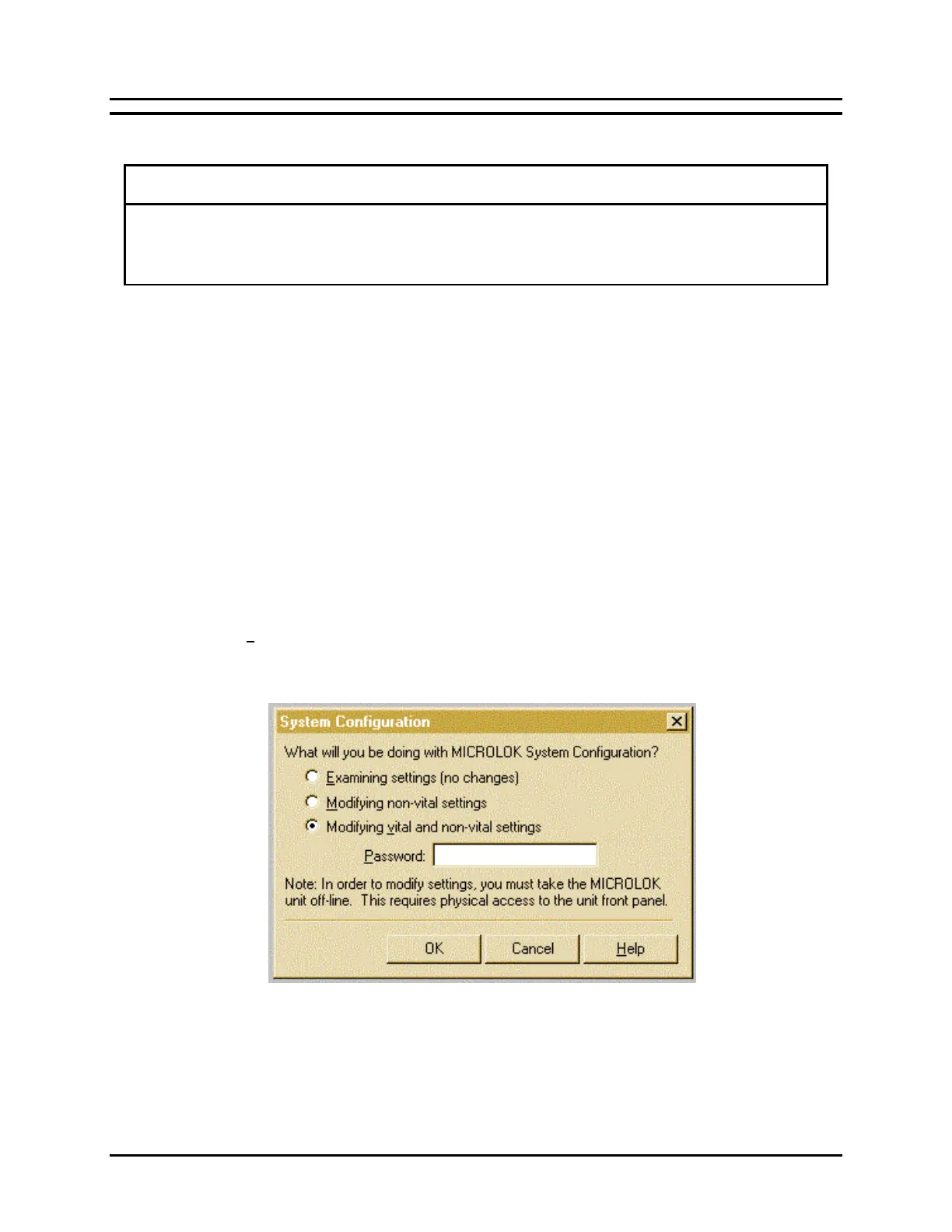

1. Click on the System Configuration button on the Maintenance Tools main menu. The system
displays a password dialog box that lets you specify whether you wish to view or change
configuration settings:
17. Determine whether you want to examine the configuration settings, modify the non-vital
settings only, or modify all settings. If you opt to examine the settings, the system will permit
no changes to the displayed configuration parameters. The default selection on the form is to
modify vital and non-vital settings. Click on the appropriate option.
