6.2.9 Configuring the Non-vital Bi-polar Output Boards (NVB.Out)
To configure a non-vital bi-polar output board, click on one of the NVB.Out selection buttons on

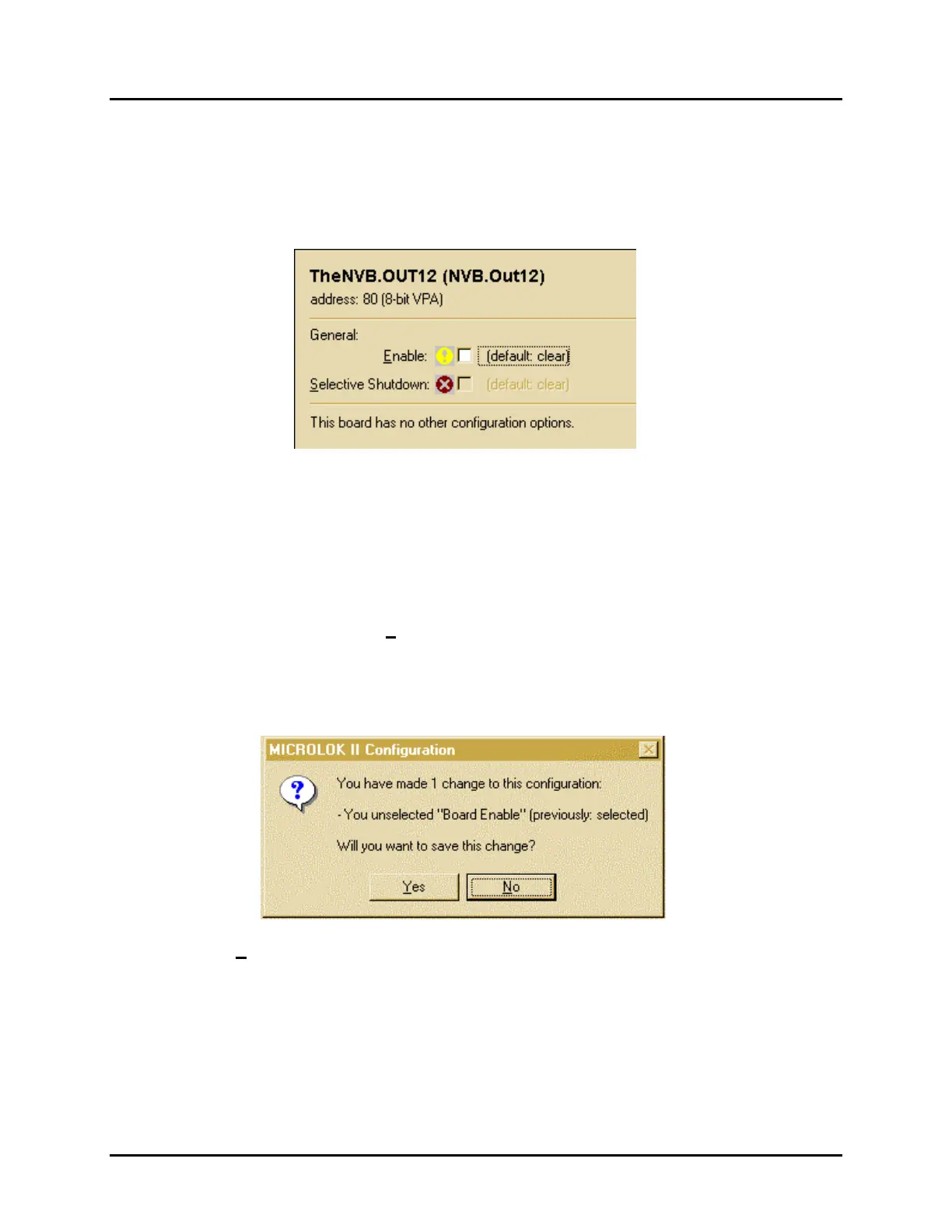

the system configuration selection screen. A dialog box similar to the one shown below will
appear.
The only configurable option for the non-vital bi-polar output board is the Enable option.
Selective Shutdown is not yet implemented and will remain disabled. Enable is user
configurable through the Tools program only if it is identified as an adjustable parameter in the
application software. Use the following procedure to configure the non-vital bi-polar output
board:
1. First, make sure that a check mark appears in the Enable selection box at the top of the
screen. If necessary, click on the Enable selection box to insert a check mark.
2. When Enable has been set to the proper value for the application, click on the Done button at
the lower left corner of the screen. A dialog box similar to the one shown below will be
displayed:
3. Click on the Yes button to save the configuration changes and complete the board
configuration. The system configuration selection screen will again be displayed on the
screen.
4. Repeat steps 1 - 3 for any other non-vital bi-polar output boards that may be installed in the
cardfile.
