Ansul AUTOPULSE IQ-301 - Connecting a Releasing Device to a Control Panel; Connecting a Releasing Device to a Control Panel through a Control or Relay Module

Releasing Applications Connecting Releasing Devices
154 IQ-301 PN 50036:F 10/29/2001
• For a list of compatible solenoid valves, refer to the Device Compatibility
Document.
• Terminate all unused circuits with a 4.7K ELR.

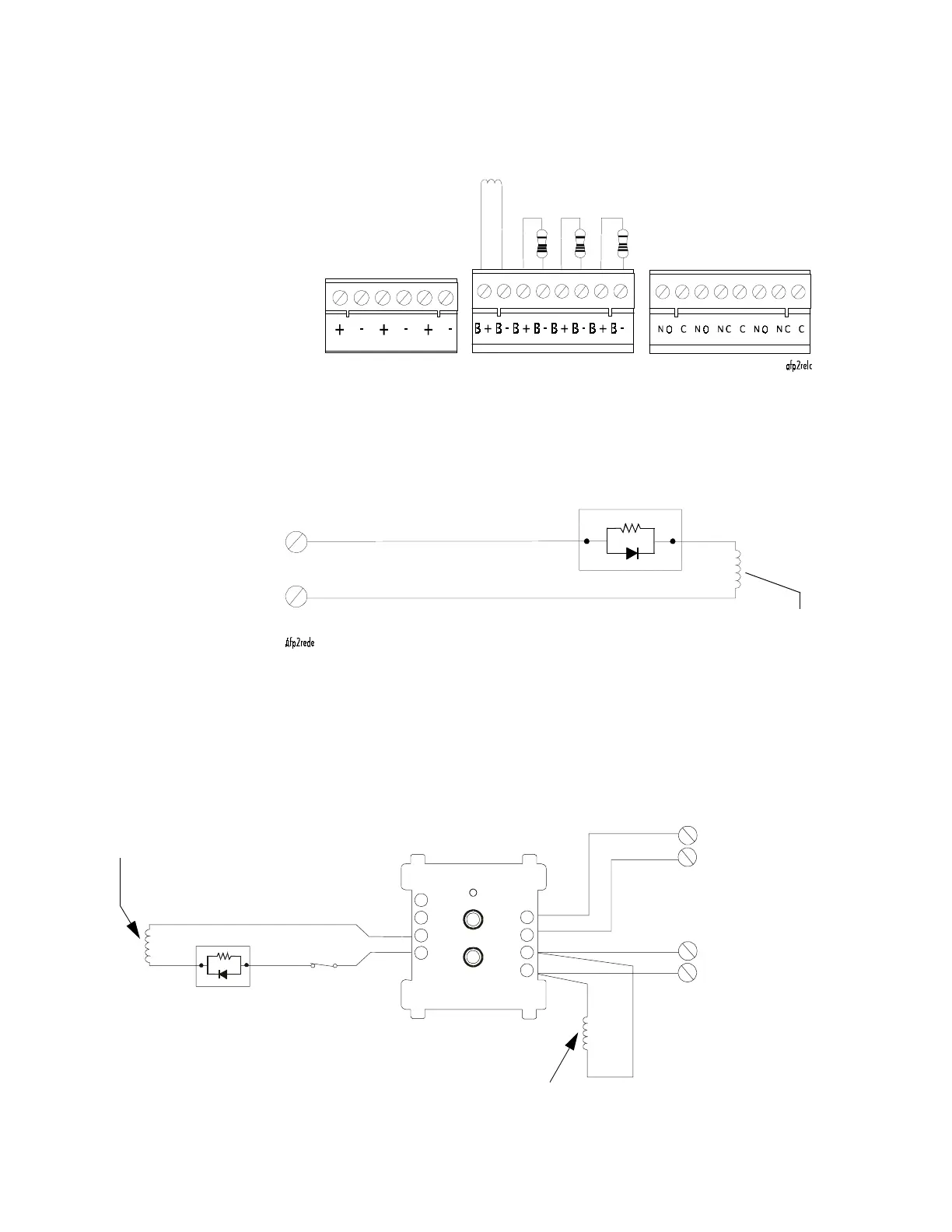

Figure 145 Notification/Releasing Connections
D.3.2 Connecting a Releasing Device to a Control Panel
Figure 146 shows typical connections between the control panel and a releasing device:
Figure 146 Typical Connection of Releasing Device to the Control Panel
D.3.3 Connecting a Releasing Device to a Control Panel
through a Control or Relay Module
Figure 147 shows typical connections of releasing device to the control panel to a via a
control or relay module.
Figure 147 Typical Connection of Releasing Device to Control Module
Compatible Solenoid
Valves
For a list of compatible
solenoid valves, refer to the
Device Compatibility
Document.
TB3
TB1
TB2
Terminate all unused circuits with a 4.7K
ELR as shown.
TB2-1 (+)
TB2-2 (–)
24 VDC UL-listed
releasing device
24 VDC power
from control panel
Brown
Red
REL-4.7K
90
81
72
63
54
24 VDC UL-listed
releasing device
Power Supervision Relay A77-716B
SLC Loop to IQ-301
TB6-5 (-)
TB6-3 (+)
Alarm polarity shown
N.C. supervised
relay contact
REL-47K
Brown Red
24 VDC power
from the IQ-301
TB1-2 (-)
TB1-1 (+)
+
+
+
-
-
-
FCM-1
