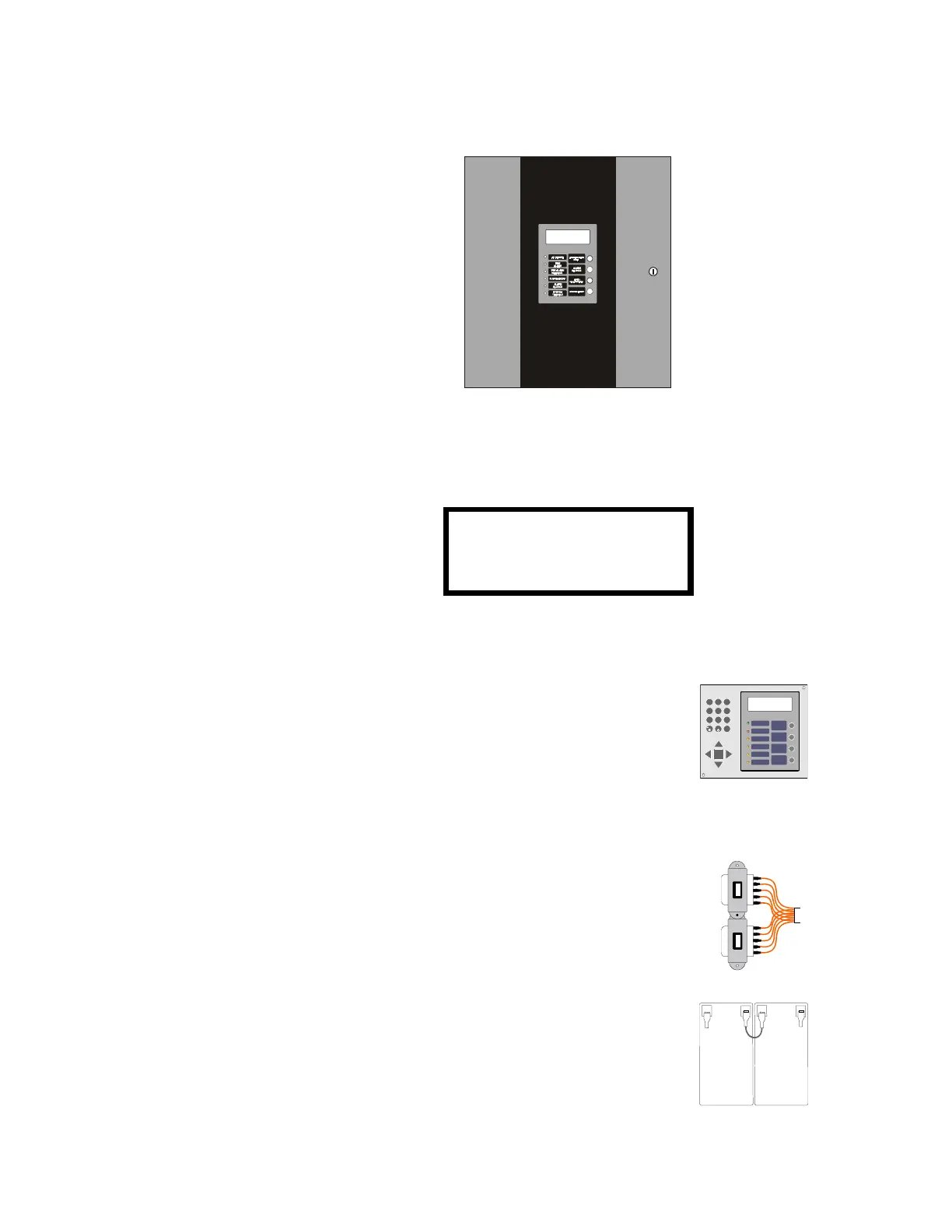

1.4.2 Cabinet
The CPU board mounts in a compact (16.125" x 14.5" x 5.5") cabinet with a front dress
plate. The cabinet provides space for two batteries (up to 12 AH).
1.4.3 LCD Display
The control panel uses an 80-character LCD display (4 rows of 20 characters each). The
display includes a long-life LED backlight that remains on unless AC power is lost
while the system is not in alarm:
Figure 4 LCD Display
1.4.4 Membrane Switch Panel
The membrane switch panel provides LED Status
Indicators, operator keys, and programming keys. The
operator keys and LEDs are visible with the cabinet door
closed. The programming keys are visible only with the
door open. Slide-in labels are provided for switch and
LED descriptions. Refer to “Membrane Switch Panel” on
page 15.
1.4.5 Transformer Assembly
The transformer assembly includes two 100 VA
transformers and a connector.
1.4.6 Batteries
The cabinet provides space for 7 AH or 12 AH batteries
(for 18 AH batteries use the BB-17 battery box). Batteries
must be ordered separately.
