Combination Fire/Burglary Applications Installation
158 IQ-301 PN 50036:F 10/29/2001
4. Plug connector from STS-200 into J11

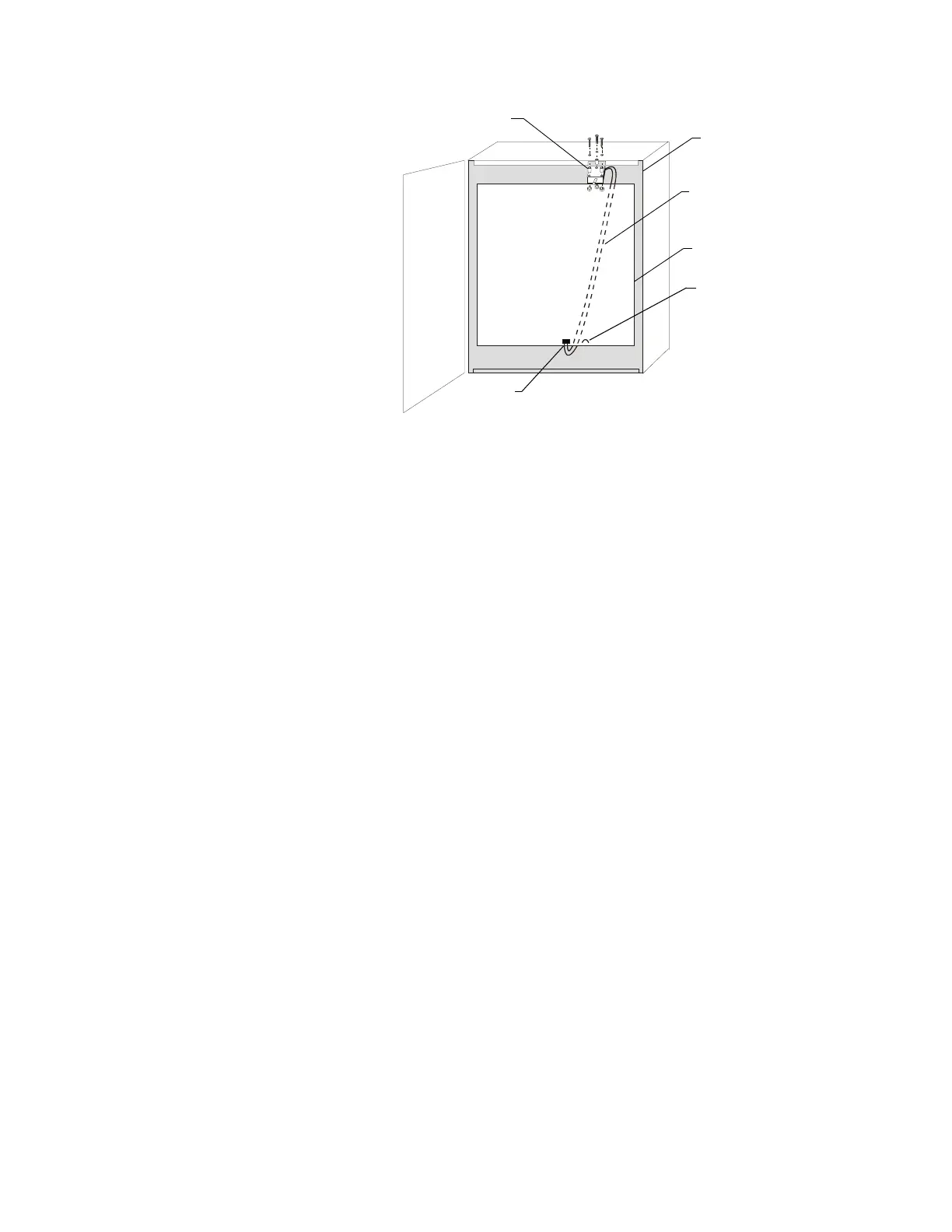

Figure 150 Typical Installation of an STS-200 Tamper Switch
E.2.3 Wiring for Proprietary Security Alarm Applications
Figure 151 shows typical wiring for proprietary security alarm applications with a
control module configured as a Notification Appliance Circuit. Note the following:
1. The control module is configured as a Notification Appliance Circuit and
programmed in the Protected Premises Unit.
2. Supplementary use only applies to UL-listed systems.
STS-200 wire run
behind CPU board
afp2-sts.cdr
Cabinet
CPU board
JP3
J11
STS-200
To Next Page
