Installation Expansion Power Supplies
IQ-301 PN 50036:F 10/29/2001 183
J.4.2 Installing the APS-6R
Mounting the APS-6R
To mount the APS-6R, follow these steps:
1. Place the APS-6R into the cabinet as shown in Figure 165.
2. Insert mounting screws into cabinet; then tighten the screws until the APS-6R is
securely fastened to the cabinet.

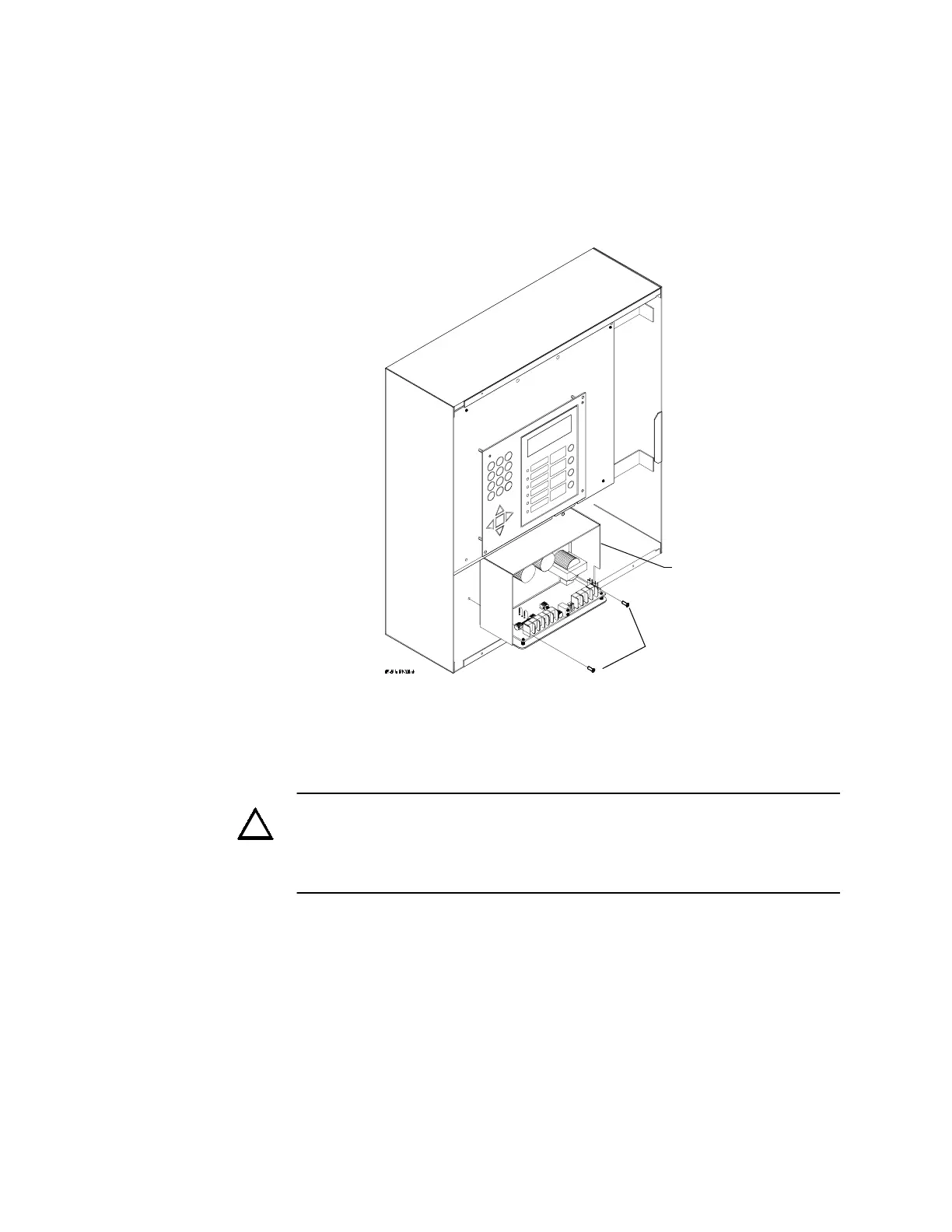

Figure 165 Mounting the APS-6R
Wiring the APS-6R
Wire the APS-6R to the control panel according to the steps in Table 69 and the
drawing in Figure 166.
WARNING: Use extreme caution when working with the AVPS-24 or APS-6R—high
voltage and AC line-connected circuits are present in the AVPS-24 or APS-6R.
Turn off and remove all power sources. To reduce the risk of electric shock—make
sure to properly ground the AVPS-4R or APS-6R. Before connecting AC and DC
power, install the APS-6R cover.
Mounting
APS-6R
!
