Installation AC and DC Power Connections
34 IQ-301 PN 50036:F 10/29/2001
2.4.2 Battery Power Connection (J3)
WARNING: Battery contains sulfuric acid which can cause severe burns to the
skin and eyes, and can destroy fabrics. If contact is made with sulfuric acid,
immediately flush skin or eyes with water for 15 minutes and seek immediate
medical attention.
Observe polarity when connecting the battery to the control panel. To connect the
battery to the control panel, follow these steps:
1. Calculate the battery rating and size required for your installation. For instructions,
refer to Appendix A.
2. Connect the battery cable to J3 on the CPU board using the plug-in connector
provided.

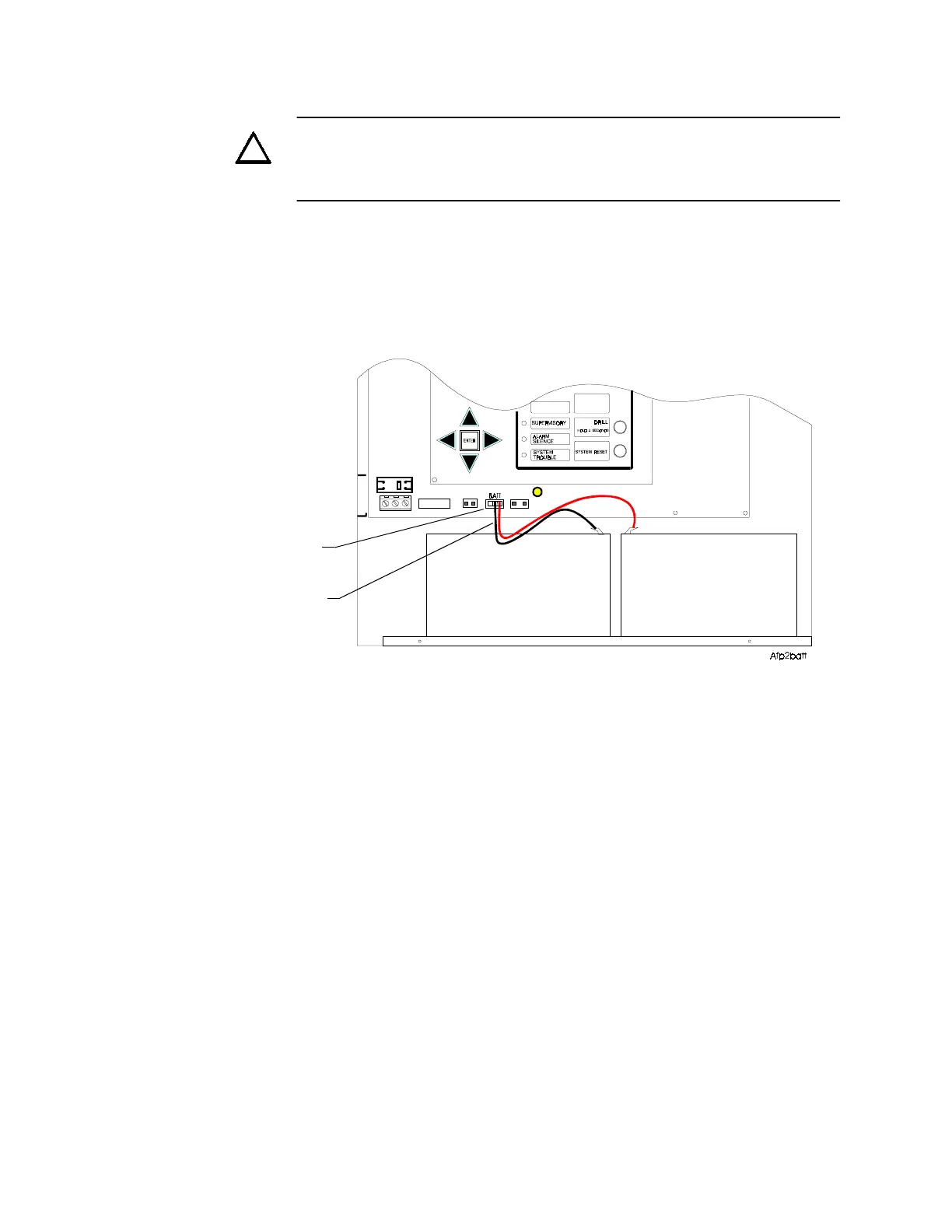

Figure 10 AC and Battery Power Connections
2.4.3 Expansion Power Supplies – AVPS-24 or APS-6R
(Optional)
Expansion power supplies can provide additional notification appliance power for
Notification Appliance Circuits 3 and 4 (TB2) on the control panel. The control panel
can accommodate one of the following expansion power supplies:
• the Audio/Visual Power Supply (AVPS-24); or
• the Auxiliary Power Supply (APS-6R).
For detailed information, including installation instructions, refer to Appendix J
“Expansion Power Supplies”.
!
J3 Battery Power
Battery cable
To Next Page
