Ansul AUTOPULSE IQ-301 User Manual

Releasing Applications Connecting Releasing Devices
156 IQ-301 PN 50036:F 10/29/2001

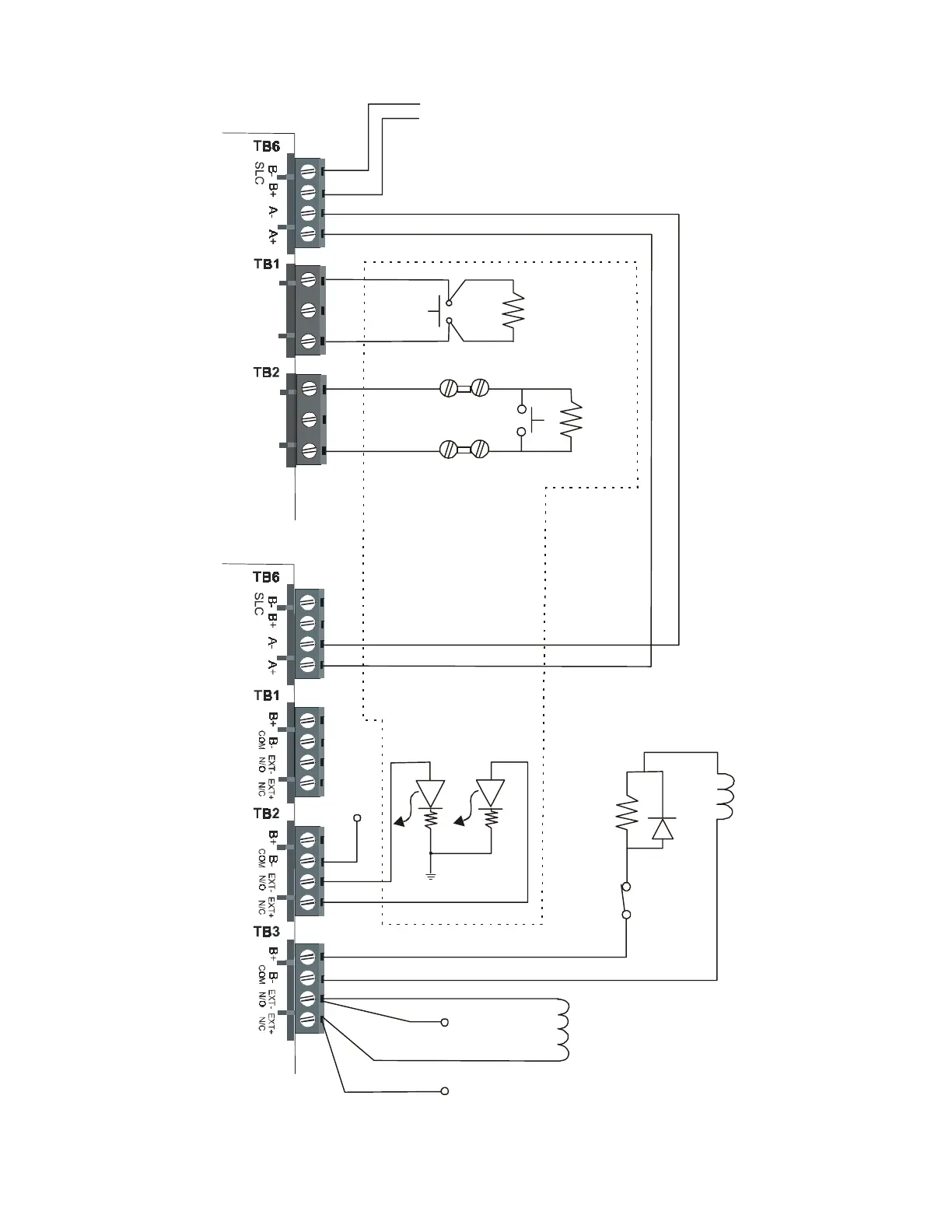

Figure 149 Employing NBG-12LRA Agent Release-Abort Station with XP5 Modules
B+
B+
B-
B-
XP5-M
XP5-C
FM Approved
Releasing
Device
Push-Button
Switch set
for Relay
Push-Button
Switch set
for NAC
TB6-5 (-)
TB6-3 (+)
SLC to IQ-301
SLC
Manual
Abort
Manual
Release
47K,
1/2 w,
N-ELR
47K,
1/2 w,
N-ELR
Agent release pull station
(inside dotted lines)
Release Normal
REL-47K
N.C. Power
Supervision
Relay Contact
IQ-301
24 VDC
TB1-2 (-)
IQ-301
24 VDC
TB1-1 (+)
Power Supervision
Relay A77-716B
IQ-301
+24 VDC
TB1-1 (+)

Ansul AUTOPULSE IQ-301 Specifications

General

Brand	Ansul
Model	AUTOPULSE IQ-301
Category	Fire Alarms
Language	English
