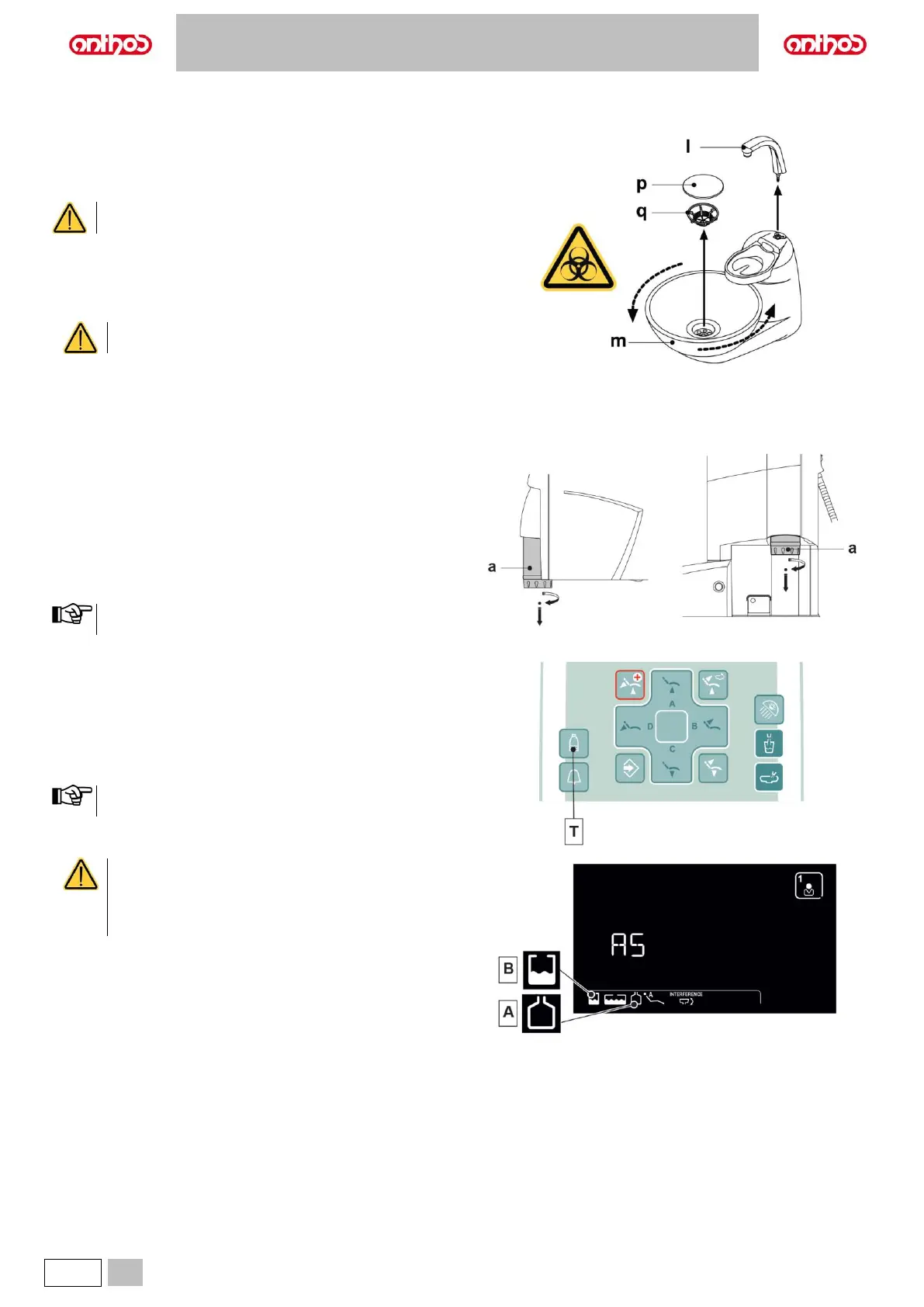

Spout, bowl and bowl filter removal.
• Pull up the spout (l) and take it off.
• Pull up the filter (q) and its cover (p) from the bowl to remove them.
• Release bowl (m) by turning it counter-clockwise, then pull it up to
remove it.
Disinfection and cleaning.
Always wear gloves to prevent contact with infected
material when cleaning the bowl and bowl filter.
The parts are to be cleaned daily at the end of each working day.
• Water dispensers: thoroughly wash with a specially formulated scale-
remover (such as MD 550 Orotol DÜRR).
• Bowl filter: clean with running water and commercially-available
cleaning products.
Do not use acids or abrasive products.
7.2. S.H.S/S SYSTEM (SIMPLIFIED HYGIENIZATION SYSTEM)
Description of the system.
This system features a tank (a) suitable to contain the independent water
supply, preferably distilled water.
The tank has a total capacity of 1.8 litres and feeds:
• The sprays of all the instruments present on dentist's and assistant's
boards.
• The syringe present on the assistant's board.
• The cup filling system.
• The water quick coupling (if available).
The button (T) allows you to turn on/off the independent water supply.
Independent water supply active status is highlighted by icon (A)
appearing on the console DISPLAY.
This system also allows performing a disinfection cycle of instrument
spray ducts using disinfectant in the tank instead of the supply liquid.
Tank reserve warning.
When the fluid inside the tank drops below the reserve level, a special
warning icon (B) appears on dentist's board console.
Filling the tank.
Once tank min. level is reached (approx. 500 cc), fill it as follows:
S.H.S. system cannot be reactivated until liquid correct level in
the tank is restored.
• Remove tank (a) by turning it clockwise.
• Fill the tank until reaching the max. level.
Use distilled water or demineralised/deionised water. For
enhanced hygiene, it can be added with 600 parts per
million (ppm) of hydrogen peroxide by adding 35 ml of
Peroxy Ag+ or 35 ml of 3% Hydrogen Peroxide
(oxygenated water, 10 volumes).
