ANTUNER AT-100M - Quick Start Guide; Connection Setup

2. Quick start

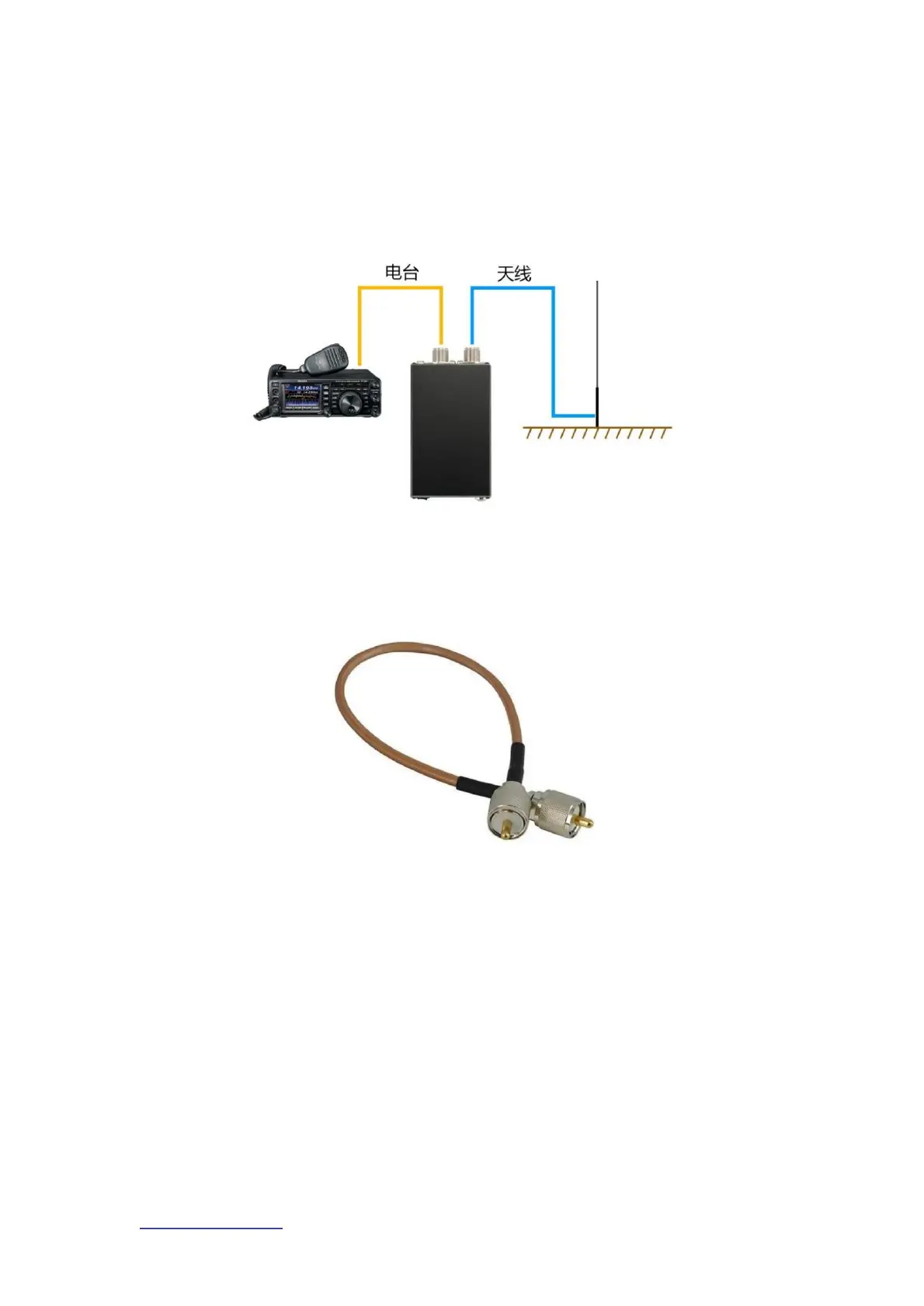

Radio - Antenna - Antenna feeder connection
Please use an M male jumper to connect the radio and the tuner
ANTUNER only researches ultra-small, portable radio peripherals, and completely develops software and hardware at the bottom
BI3QWQ
http://www.antuner.com
2.1 How to connect the tuner to the radio station and antenna feeder
