API “The BOX” Operator’s Manual
Loudspeaker DIM Function
Stereo and Mono Monitoring
The selected C/R SOURCE can be monitored in stereo or mono. Stereo is the default
setting and mono can be selected by engaging the MONO switch.
MONO: Sums the stereo control room loudspeaker outputs to mono
• Left and Right C/R SOURCE selections are summed to mono
when engaged
• Illuminates when engaged

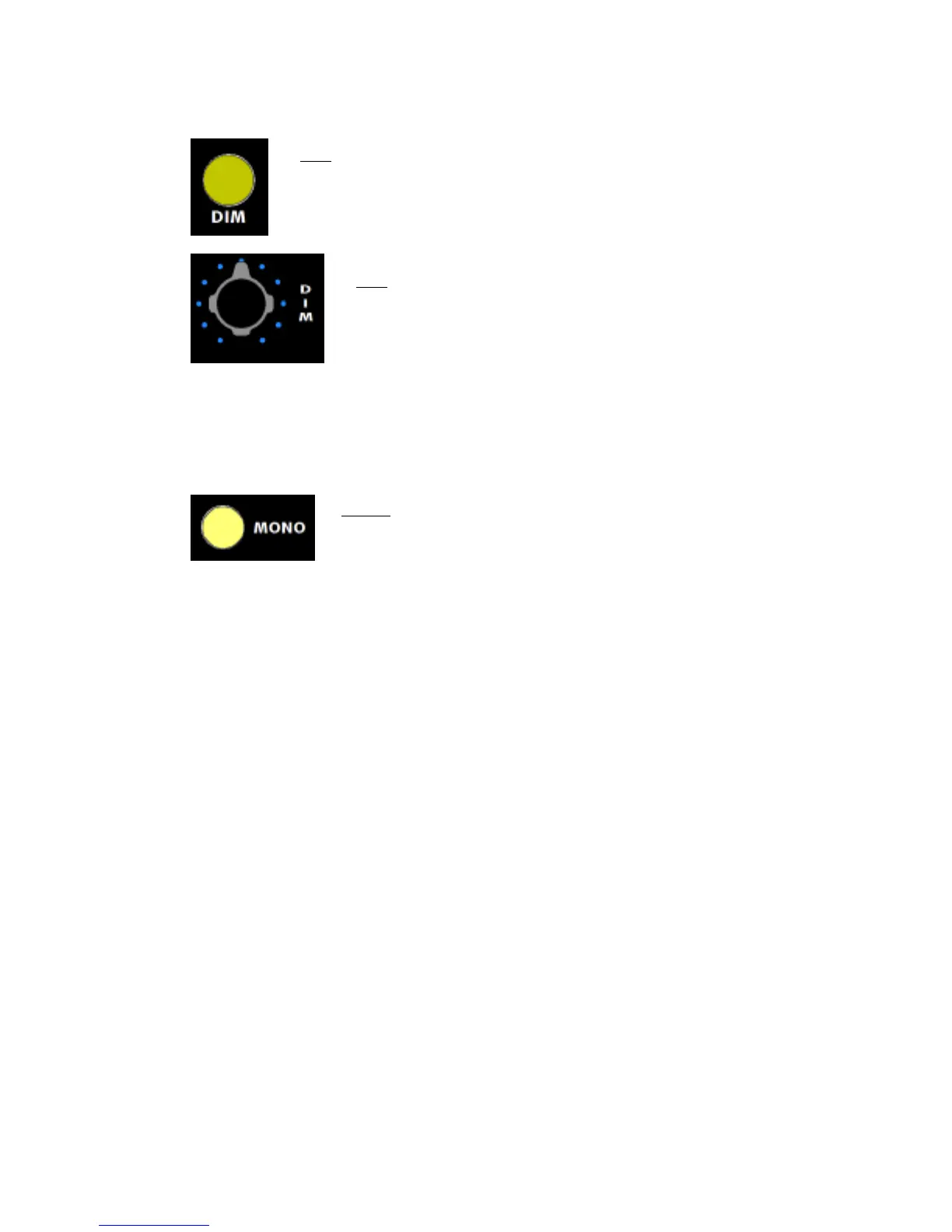

DIM: Activates the control room loudspeaker DIM function when engaged
• Monitor output is attenuated by the amount set with the DIM pot
• DIM activates when the TALK button is engaged
• Illuminates in orange when engaged
DIM: Sets the control room loudspeaker DIM level
• Controls the amount of attenuation applied to the
loudspeaker outputs when DIM is engaged
