1082 Smart Switch Operation Manual
CHA-1082-8000/11
__________________________________________________________________________________________________________
__________________________________________________________________________________________________________
Page 25 of 48
MDL=1019D
Battery
to refresh
Vb = 19.92v
Next, a user selection for Turn-Around-Time (TAT) is displayed. Press to return to the previous
tier sub menu option “SWB Channel”. Press to change Turn-Around-Time (TAT) 62.5ms
(062.5ms displayed) through 875.0ms. Press to confirm the Turn-Around-Time (TAT). The
Smart Switch will display a “Confirmed!” message.
Finally, select configuration is displayed, together with a scrolling message reviewing user
confirmed Interrogate Channel (IC), Acoustic Command Address (ACA) and Turn-Around-Time
(TAT). Press to return to the previous tier sub menu option “SWB Channel”. Press to select
the configuration. The Smart Switch will display a “Waiting...” message followed by either a
“Selected!” message on confirmation from a connected beacon that it has configured successfully,
or a “Failed!” message for the user to retry selection.
After a “Selected!” message, the Smart Switch will automatically return to the previous tier sub
menu option “SWB Channel” and re-establish communication with a connected beacon. The user
can then verify configuration from the identified beacon model and configuration message. Refer
Section 3.4.1.
NOTE: - For beacons that are not Sonardyne Wideband™ compatible, on selection the Smart Switch
will display “Unavailable!” message.
3.5.2 Battery
A connected beacons battery voltage is displayed: -

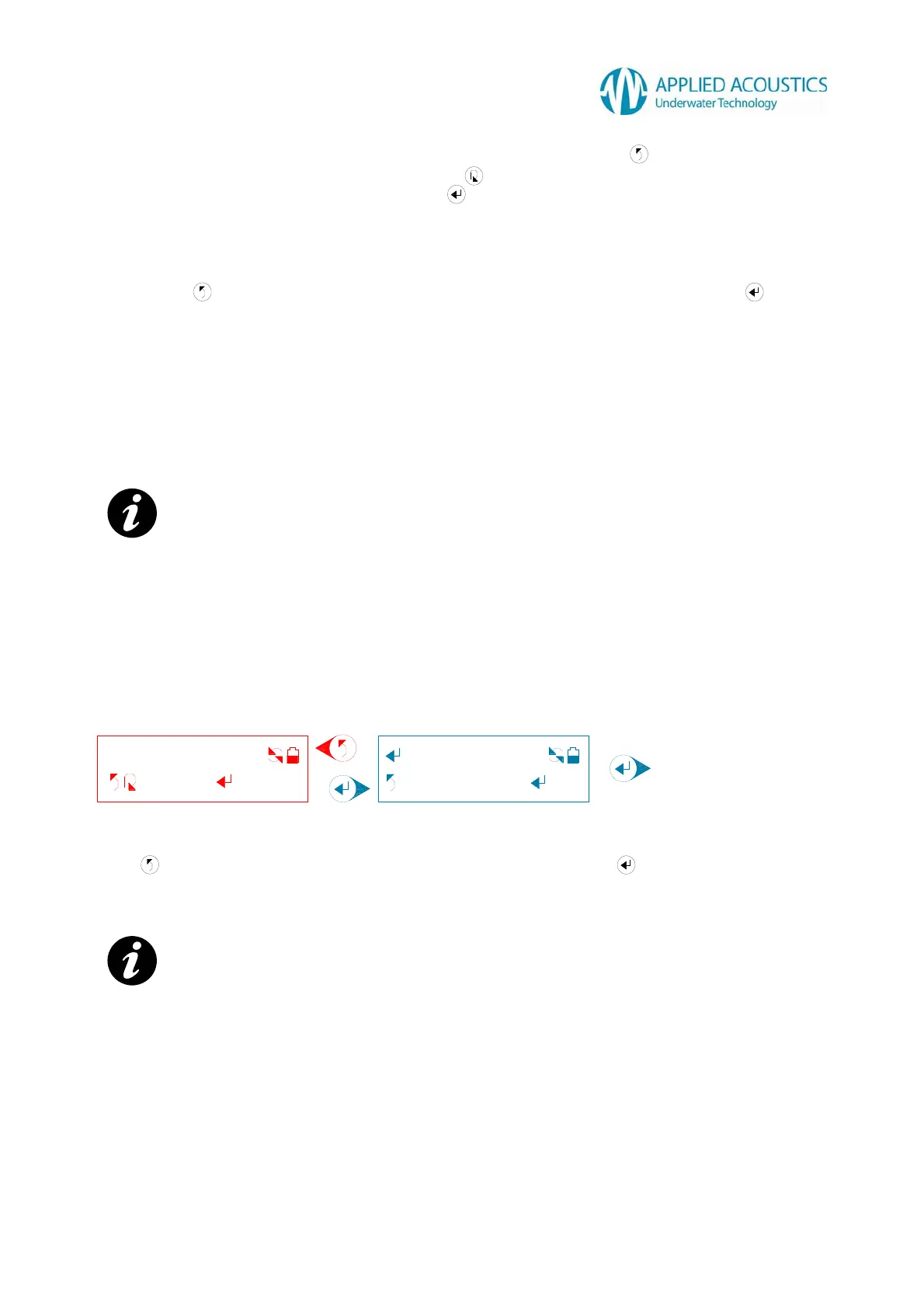

Fig. 15
Press to return to previous tier sub menu option “Battery”. Press to refresh the displayed
beacon battery voltage. The Smart Switch will display a “Refreshed!” message indicating it has
received and refreshed the displayed beacon battery voltage.
NOTE:
- Fig. 15 beacon model and battery voltage for example only.
Refresh display.
