1082 Smart Switch Operation Manual
CHA-1082-8000/11
__________________________________________________________________________________________________________
__________________________________________________________________________________________________________
Page 30 of 48
Standing by
Fast Charge
to confirm
Beacon to CHAR
to confirm
Plug in DC PSU
to confirm
Start charging
Charging. . .
Elapsed 0h00m
Charged!
Ready 3h21m
to exit
Vent beacon PRV
3.8 Fast Charge
NOTE:
- A connected beacons selector switch has a dedicated position for fast charging.
Refer beacon manual for details. Refer Section 3.8.1 Fast Charge Activation Step 1.
NOTE: - For fast charging Model 1060 Beacons ensure Smart Switch firmware is V1.08 or
above.
Activate fast charging of a connected beacon. Fast charge activation is controlled by an electronic
switch within the Smart Switch, sourcing power for beacon fast charging from the 30VDC power
supply unit: -

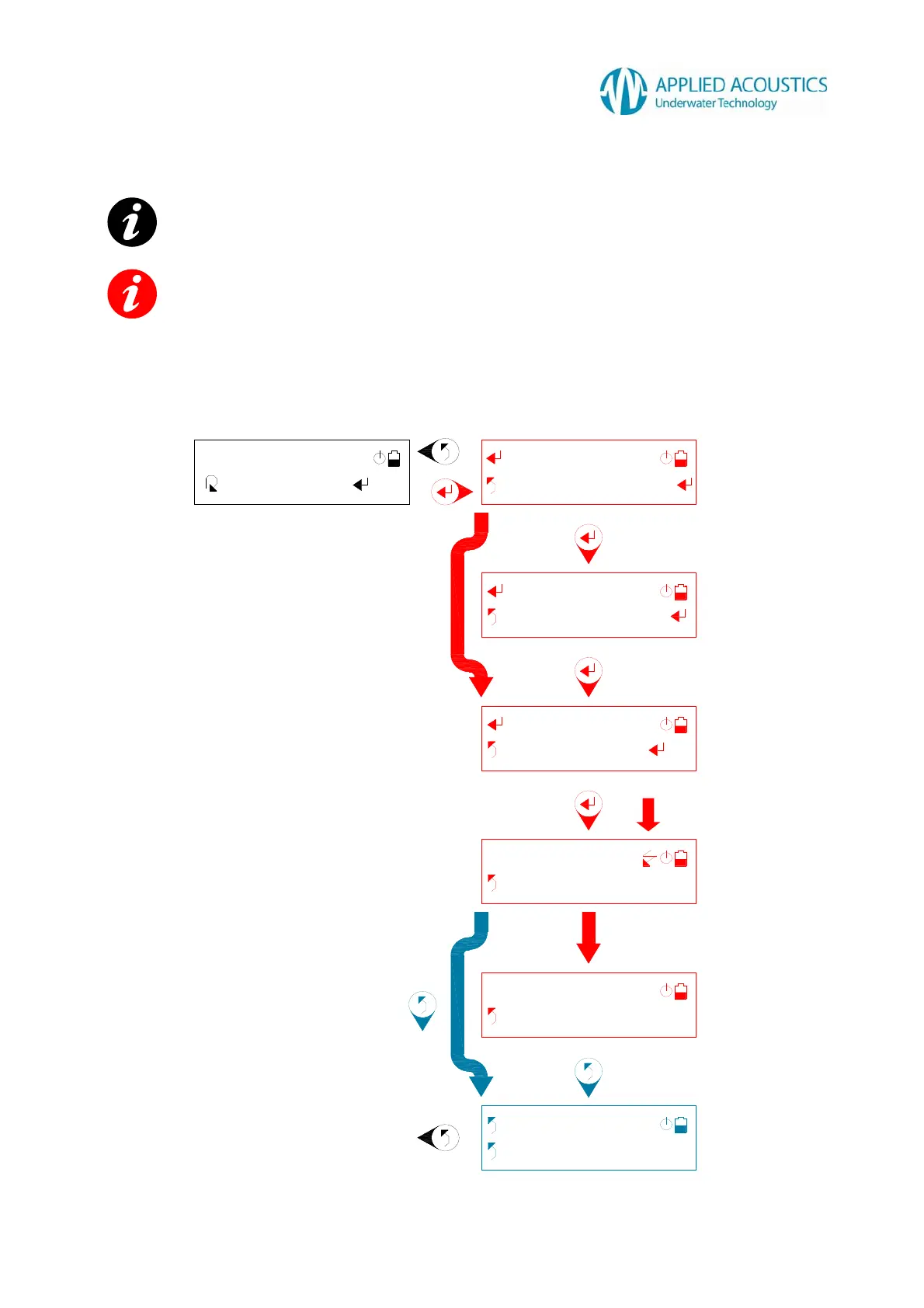

Fig. 24
*
*
Detected 30VDC
power supply unit
is inserted
3.8.1 Step 1
3.8.1 Step 2
3.8.1 Step 3
3.8.2
3.8.3
3.8.4
3.8.3
To Next Page
