11. Appendix A Connector Details

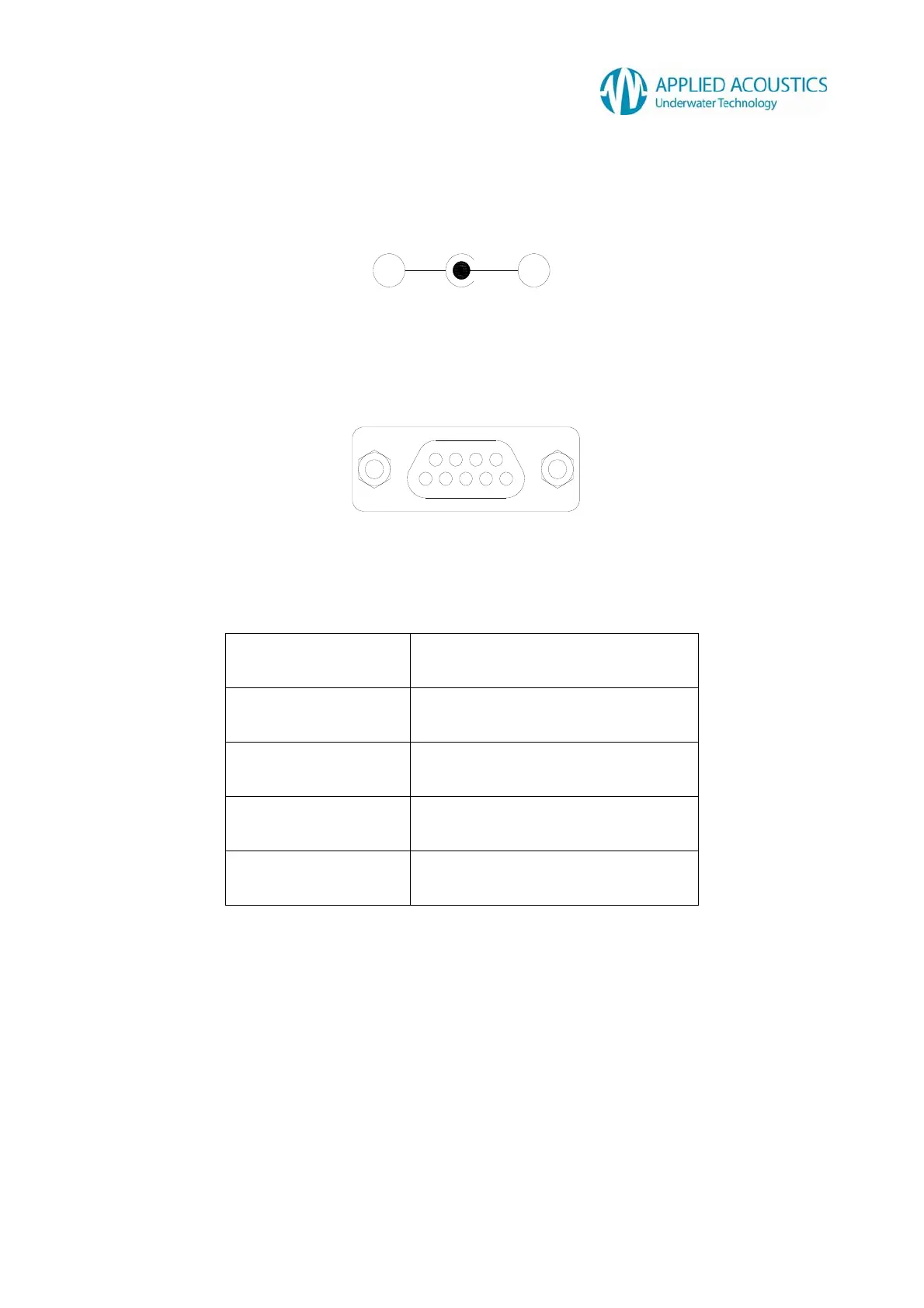

Smart Switch DC Input Socket
Smart Switch 9-Way ‘D’ Socket
9-WAY ‘D’ SOCKET FUNCTION
2
RS232 TXD /
KEY PULSE
3
RS232 RXD /
FAST CHARGE
5 0V
9
FAST CHARGE STATUS /
TRICKLE CHARGE
INNER OUTER
9-WAY ‘D’ SOCKET
FACE VIEW
