4.4.2 Manual Mode - Test Parameters
The Manual Mode allows you to program an AC, DC or AC+DC (coupled) output. Along with the standard
Sine wave, you can also choose from Triangle, Square and Clipped output waveform. Detailed descriptions
of all the available test parameters in Manual Mode are listed in the following table

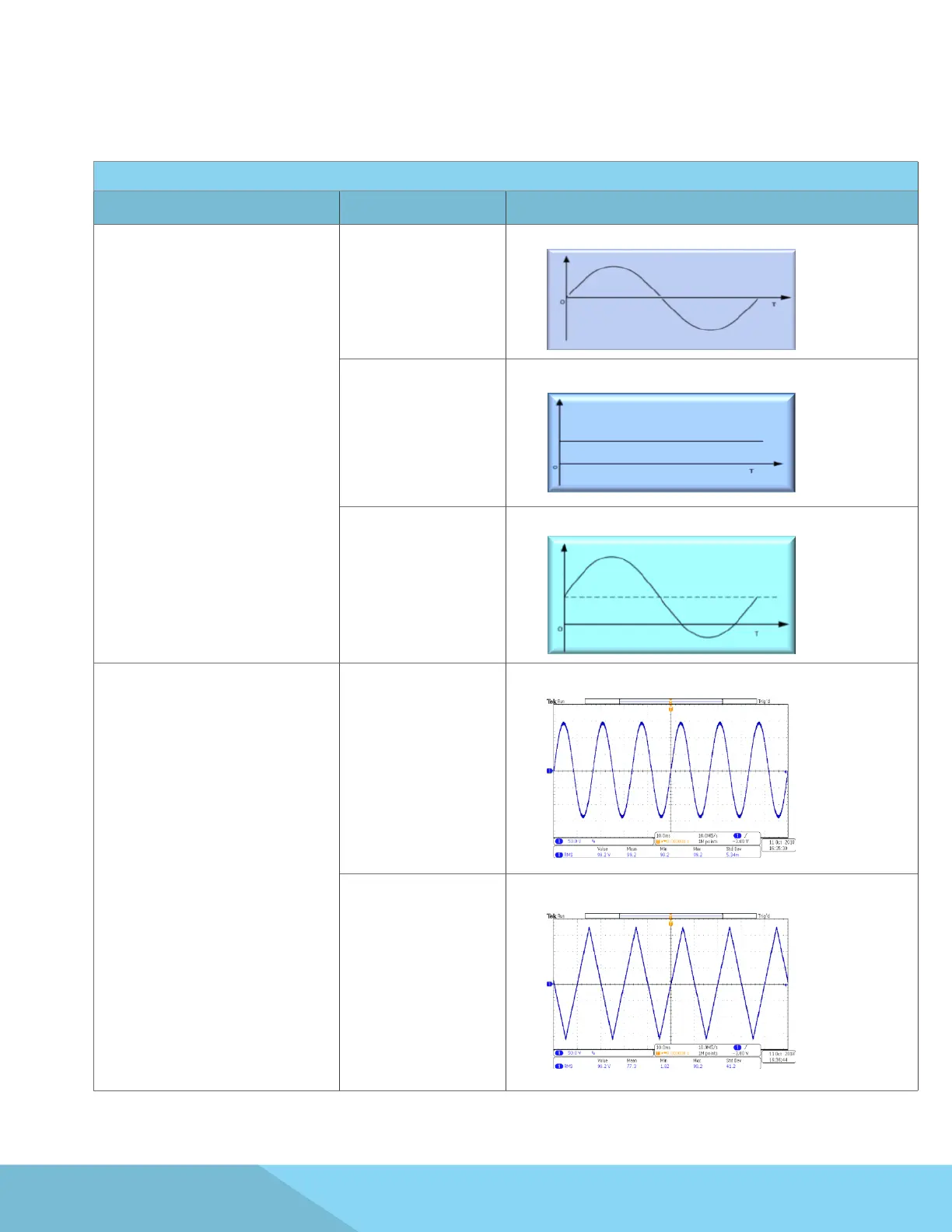

Manual Mode - Test Parameters
Parameter Setting/Range Description
Couple
AC
Sets the power source to output a simple Sine wave output:
DC
Sets the power source for a DC output:
AC+DC
Sets the power source for a coupled AC+DC output:
Wave
SINE
(0 - 155V, 0 - 310V)
Sets the powers source for a sine output waveform:
TRIANGLE
(0 - 126V, 0 - 253V)
Sets the power source for a triangle output waveform:
