5.7 Perform Test Screen Considerations

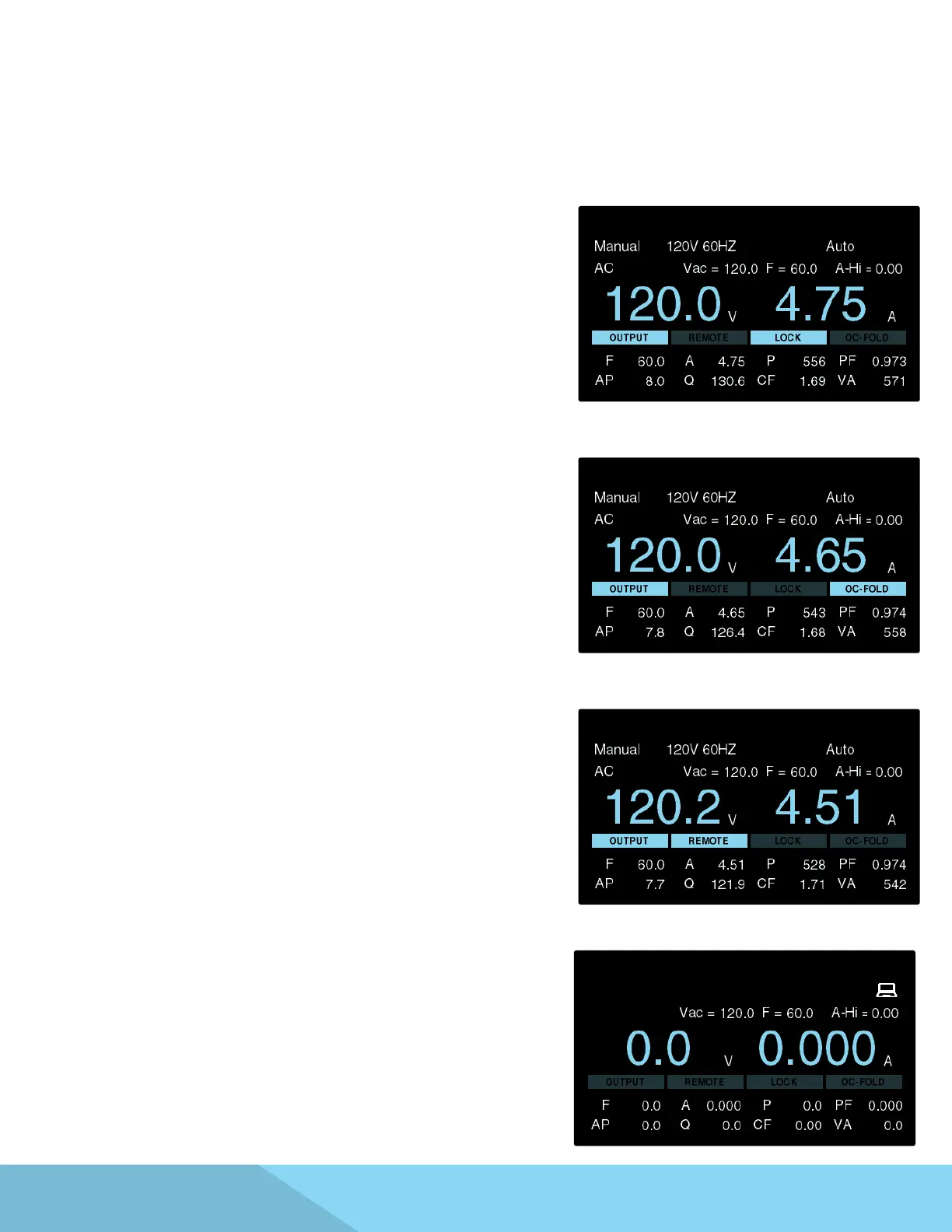

LOCK – If the Lock parameter is enabled and a test is
performed LOCK will be highlighted on the screen
The Perform Test screen displays a few select System Parameters if they were enabled by the user prior to
performing a test. If the power source is controlled using a PC an icon appears on the screen to indicate PC
control. For details on System Parameters refer to section 4.2 System Parameters.
OC – FOLD – If the OC-FOLD parameter is enabled and test is
performed OC-FOLD will be highlighted on the screen.
PLC Remote – If the PLC Remote parameter is enabled and
a test is performed via a PLC remote control REMOTE will be
highlighted on the screen.
USB, LAN or GPIB – If the test is initiated using the USB, LAN
or optional GPIB interface an icon will appear on the top right
section of the screen to indicate PC control.
