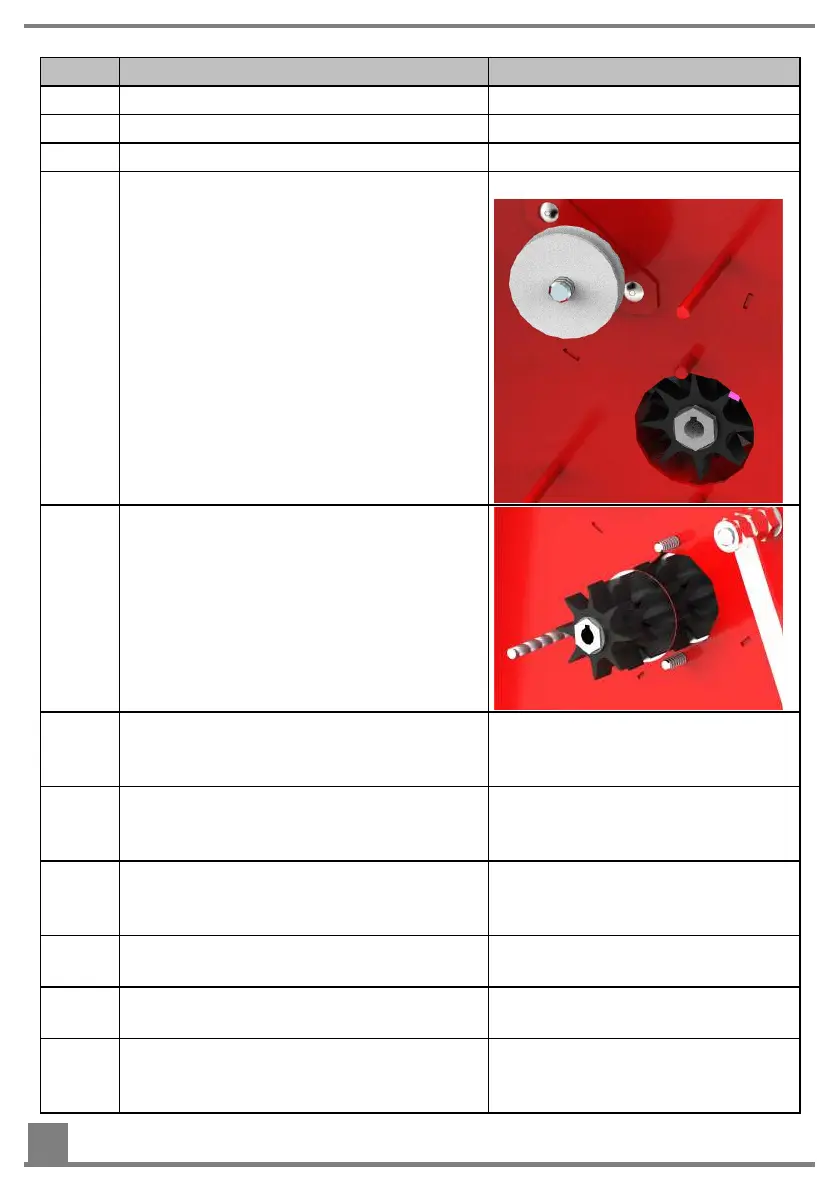

Step Description Explanation
3 Remove the bearing cover (1).
4 Remove the drive belt (4).
5 Loosen the knurled nuts (6).
6 Remove the bearing flange (5). Result:
7 Take out the seeding shaft.
NOTE: Residual seed can fall out in the
process.
8 Insert the new seeding shaft with the
free journal forwards into the steel
frame.
9 Turn the seeding shaft until the fitted
key of the gearbox motor engages in
the groove of the seeding shaft.
10 Fit the bearing flange with its fitted key
into the fitted groove of the seeding
shaft.
11 Hand-tighten the knurled nuts on the
bearing flange.
12 Place the drive belt over the two gear
wheels.
13 Fit the bearing cover on the two
threaded rods and tighten the cover
nuts with the hexagon key.
