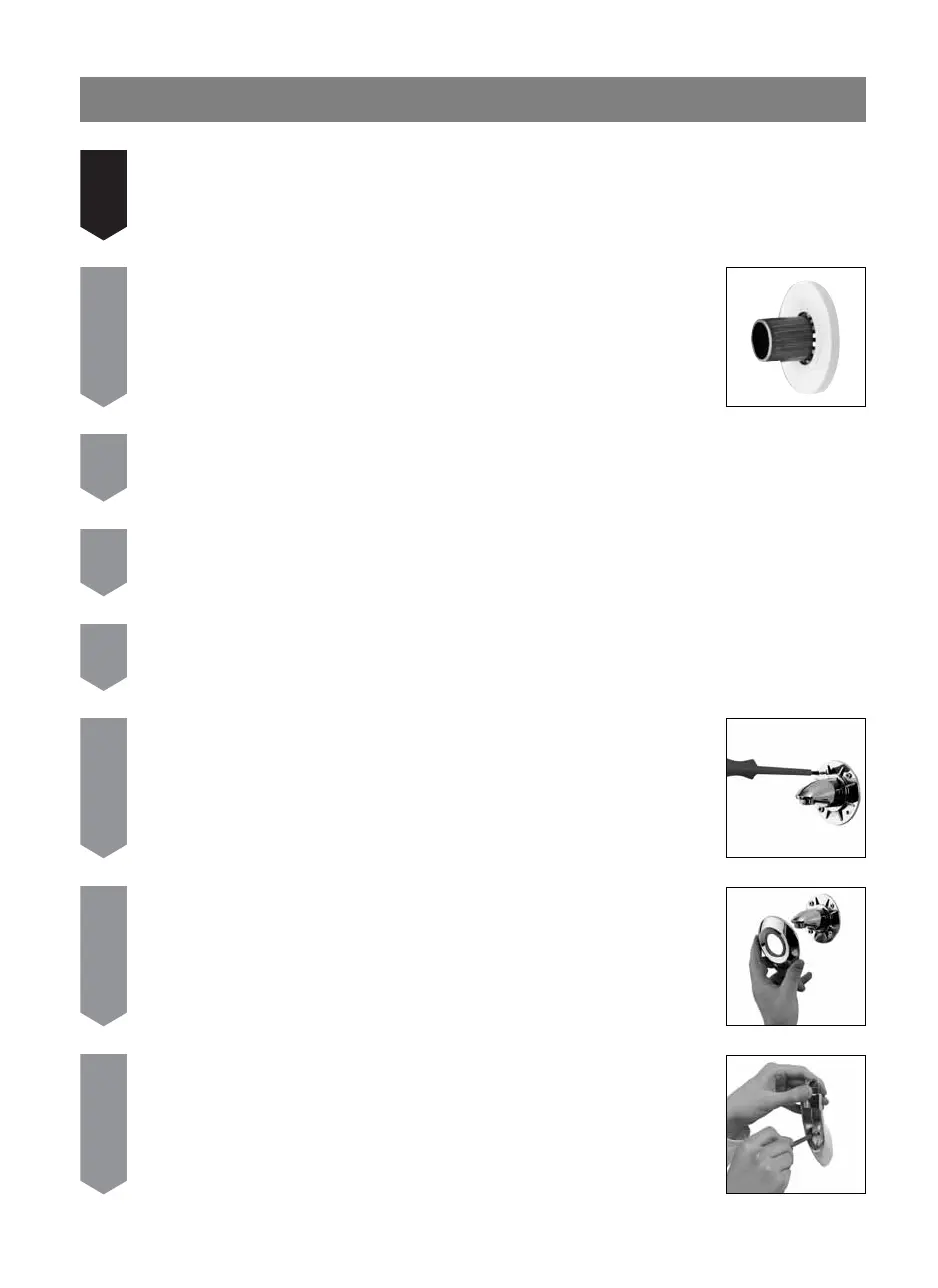

Shower head installation - Adjustable height head
!
Opto shower heads are supplied with universal fittings.
A wall outlet assembly is supplied with concealed flexible systems OP_3111. However, if installing an exposed system
OP_4111, please proceed to step 7.
1
Prepare the pipe work from the shower valve to the required position for the hose outlet using a
ø15mm copper pipe. Slide the 15mm gripper ring down the projecting pipe up to the wall face
2
Trim the projecting pipe to a length of 15-22mm using a rotary type cutter. If a hacksaw is used, the pipe end must be
carefully de-burred and chamfered.
3
Clean and lubricate the pipe using a suitable (silicone based) lubricant.
4
Remove the wall outlet cover plate and carefully slide the wall outlet onto the projecting pipe. Turn to the required position
and mark the screw holes on the wall face.
5
Remove the wall outlet and drill and prepare the wall fixings. Ensure the projecting pipe is clean
and lubricate again if necessary. Refit the wall outlet and secure it to the wall using the screws
provided.
6
Refit the wall outlet cover plate
7
Drill and plug two holes 642mm-655mm vertically apart using a spirit level if necessary.
Fit the rail end clip into position and loosely fit the lower bracket into position
