ARB RD151 - Page 20

3 Installing the Air Locker
18
Figure
11.
Figure
12.

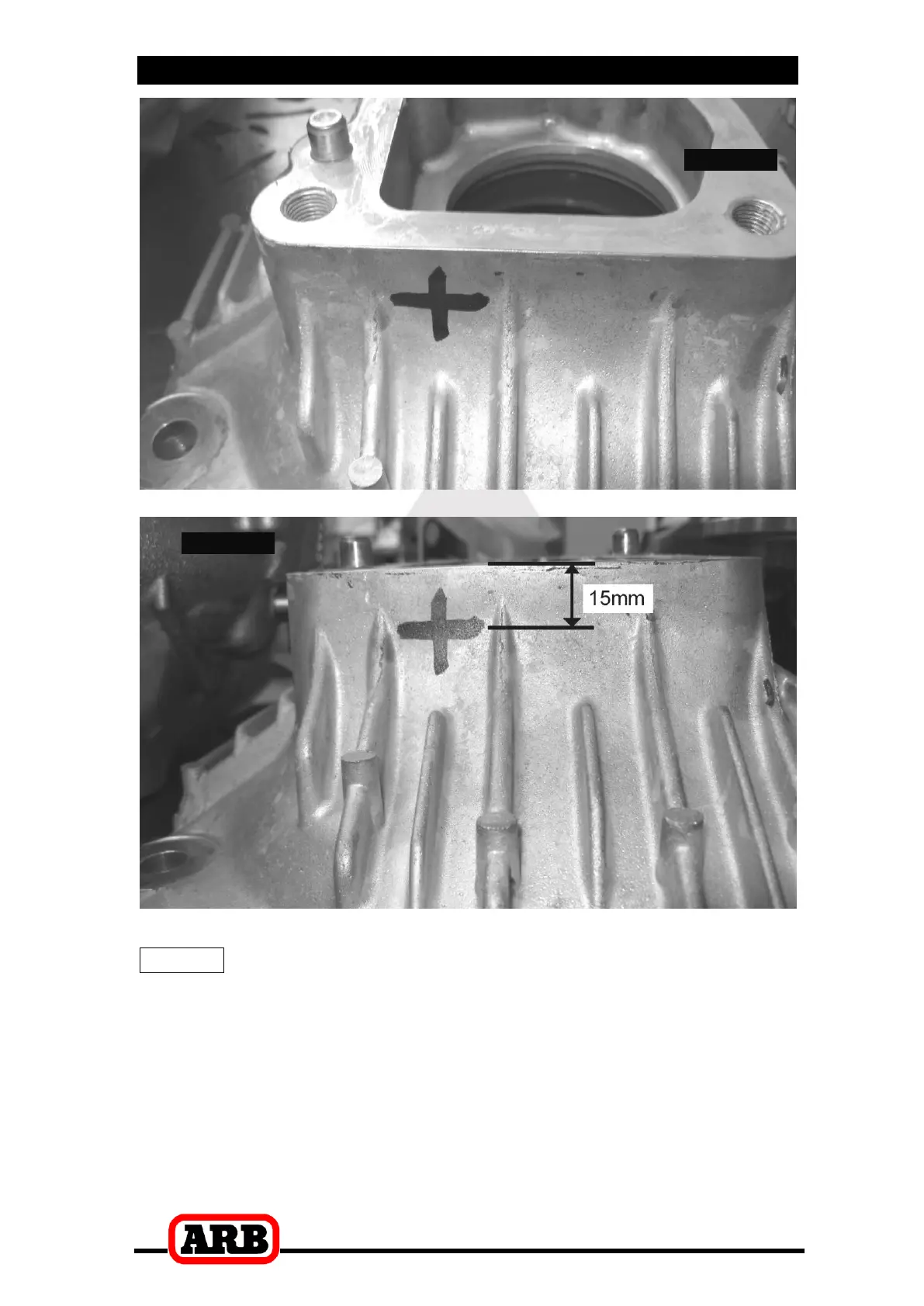

NOTE : To best determine the correct vertical position of the
drilled hole, measure down from the machined face
(shown at the top of the picture in Figure 12.) a
distance of 15mm [19/32”] and mark the horizontal line
which the hole is centered on.
