3 Installing the Air Locker
19
Cover the bearing seat area with a rag to protect the inside of the
clamshell from metal filings.
Drill through the housing square to the outside surface using an
11.2mm [7/16”] drill.
Tap the hole from the outside using a ¼” NPT pipe tap.
Remove any sharp edges from the hole that may chip-off and fall.
Carefully remove the rag and inspect with a service light inside the
clamshell to insure no metal filings are left behind.
3.8 Installing the Seal Housing
Without using sharp, jagged tools such as pliers (usually your
hands are the best tool for this job), gently bend the seal housing

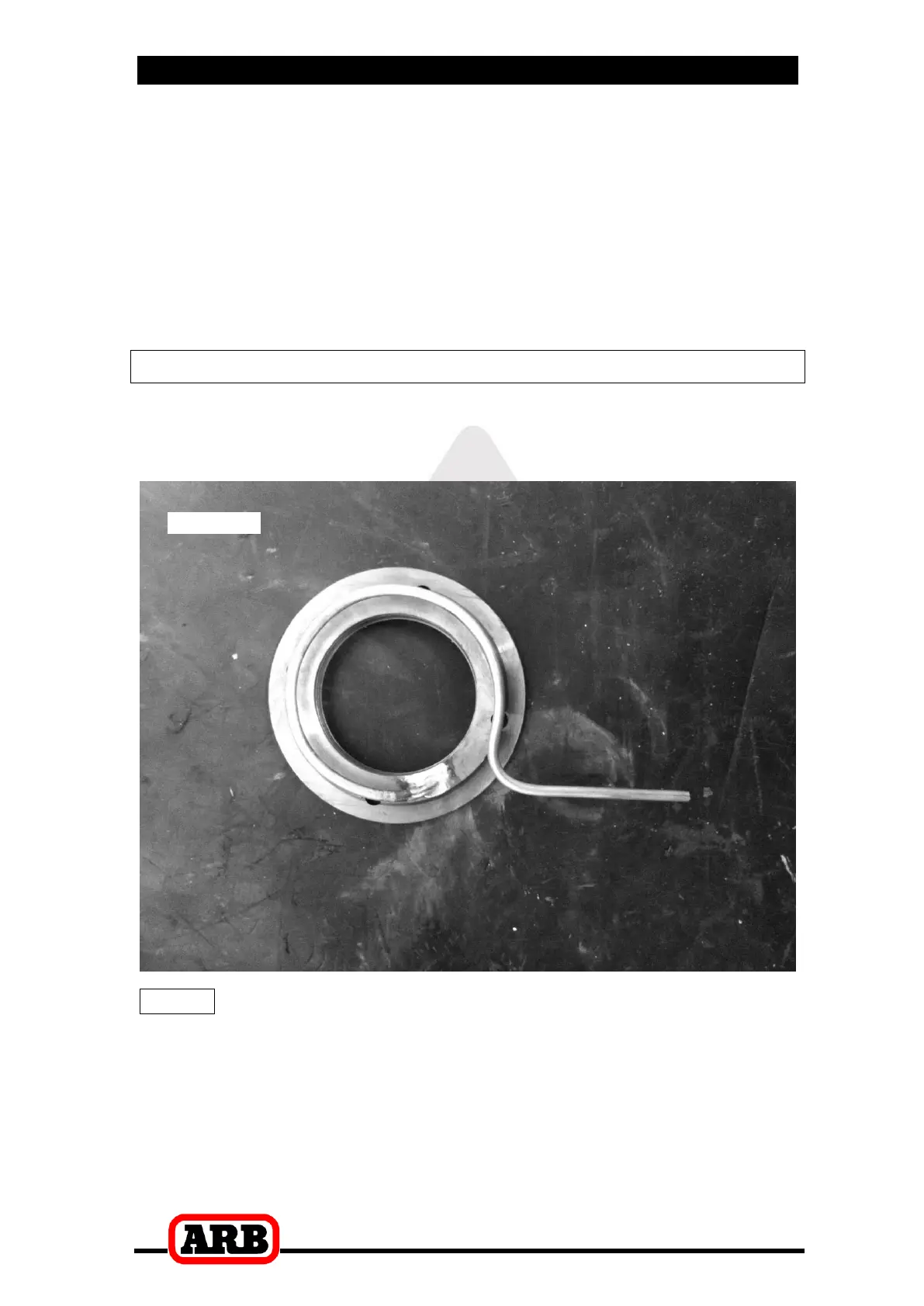

tube to approximate the shape shown in Figure 13.
Figure
HINT : Using a large socket as a mandrel to wrap the tube
around makes profiling the tube a lot easier.
