Arbiter Systems 1040C User Manual

3-15

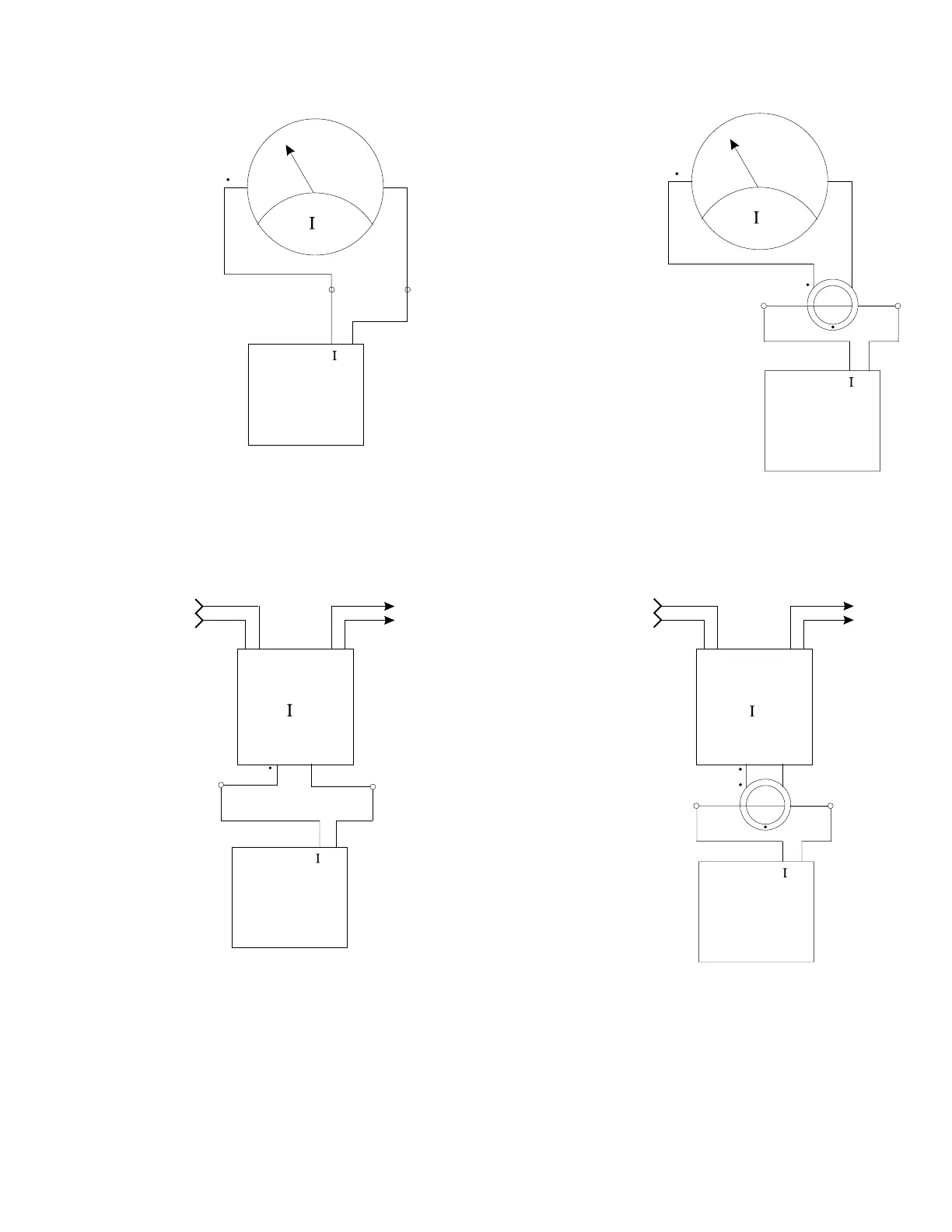

a) Current Meter Calibration Connections,
no Current Transformer
b) Current Meter Calibration Connections,
with Current Transformer
c) Current Transducer Calibration Connections,
no Current Transformer
d) Current Transducer Calibration Connections,
with Current Transformer
Figure 4
Single-Phase Current Meters and Transducers,
Calibration Connections
RB
1040C
out
1040C
out
RB
Inst.
Pwr.
+
-
Output
1040C
out
R
B
Inst.
Pwr.
+
-
Output
1040C
out
RB
