Arbiter Systems 1040C User Manual

2-14
2.5.3 AC Voltage Operating Procedure
CAUTION - Place the PMC in Standby mode. Connect the Voltmeter to the PMC as shown in
Figure 2.4 below and proceed with the following steps:
1. Press 60 HZ or 400 HZ.
2. Press VOLTAGE.
3. Enter the desired voltage using the keypad and units key.
4. Press OPER.
5. MODIFY, MEMORY, and %DEV may be used. The FREQUENCY or VOLTAGE may be
modified.
6. Press STBY when the measurement is complete to remove the output signal.
AUX. V
VOLTAGE
CURRENT
1040C PANEL METER CALIBRATOR
REMOTE
BECKMAN
3020
V
C
A
10A

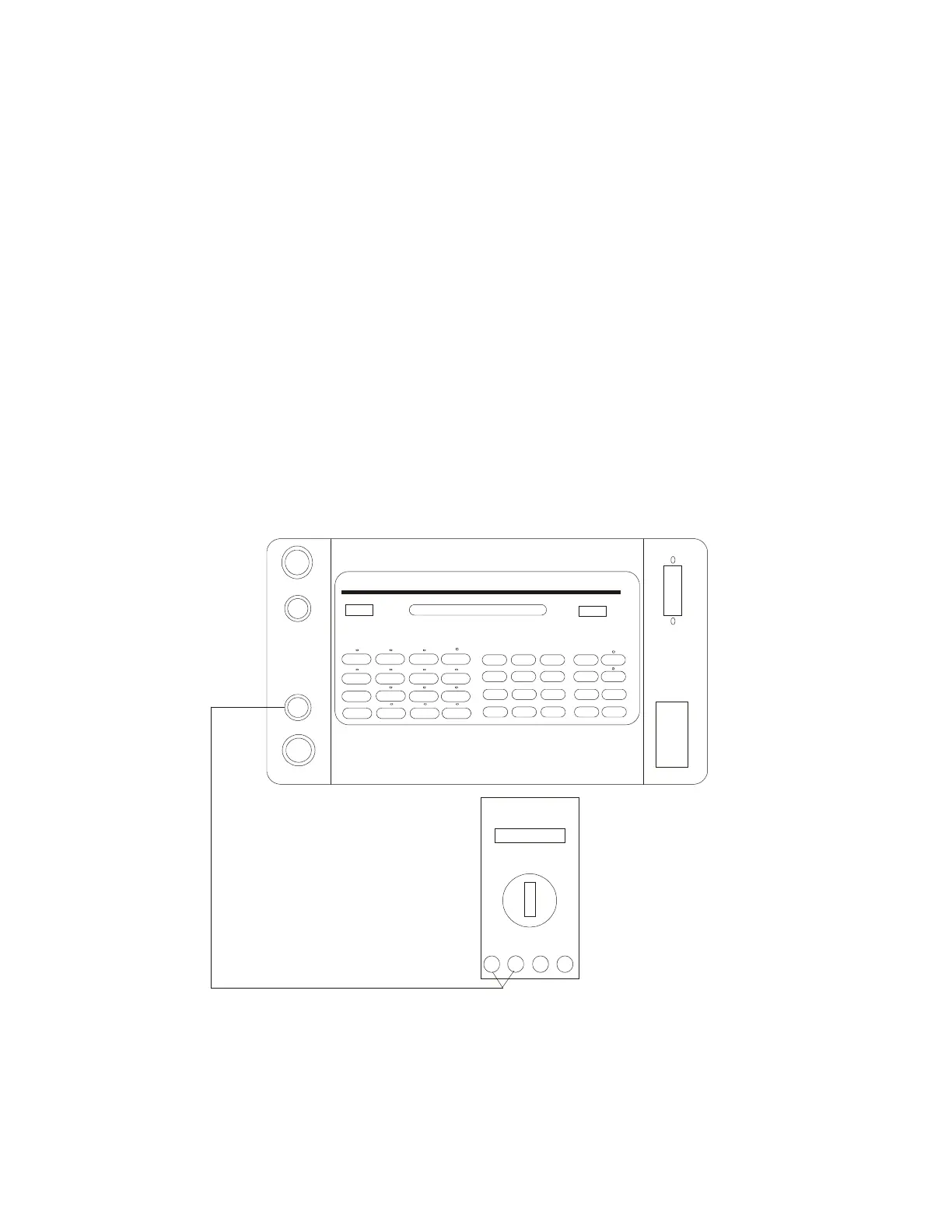

Figure 2.4 – PMC CONNECTIONS FOR TESTING AC VOLTAGE OPERATION
