2-15
2.5.4 DC Current Operating Procedure
CAUTION - Place the PMC in Standby mode. Connect the Ammeter to the PMC as shown in
Figure 2.5 below and proceed with the following steps:
1. Press DC.
2. Press CURRENT.
3. Enter desired current using the keypad and units keys.
4. Press OPER.
5. MODIFY, MEMORY, and %DEV may be used.
6. Press STBY when the measurement is complete to remove the output signal.
AUX. V
VOLTAGE
CURRENT
1040C PANEL METER CALIBRATOR
REMOTE
BECKMAN
3020
V
C
A
10A

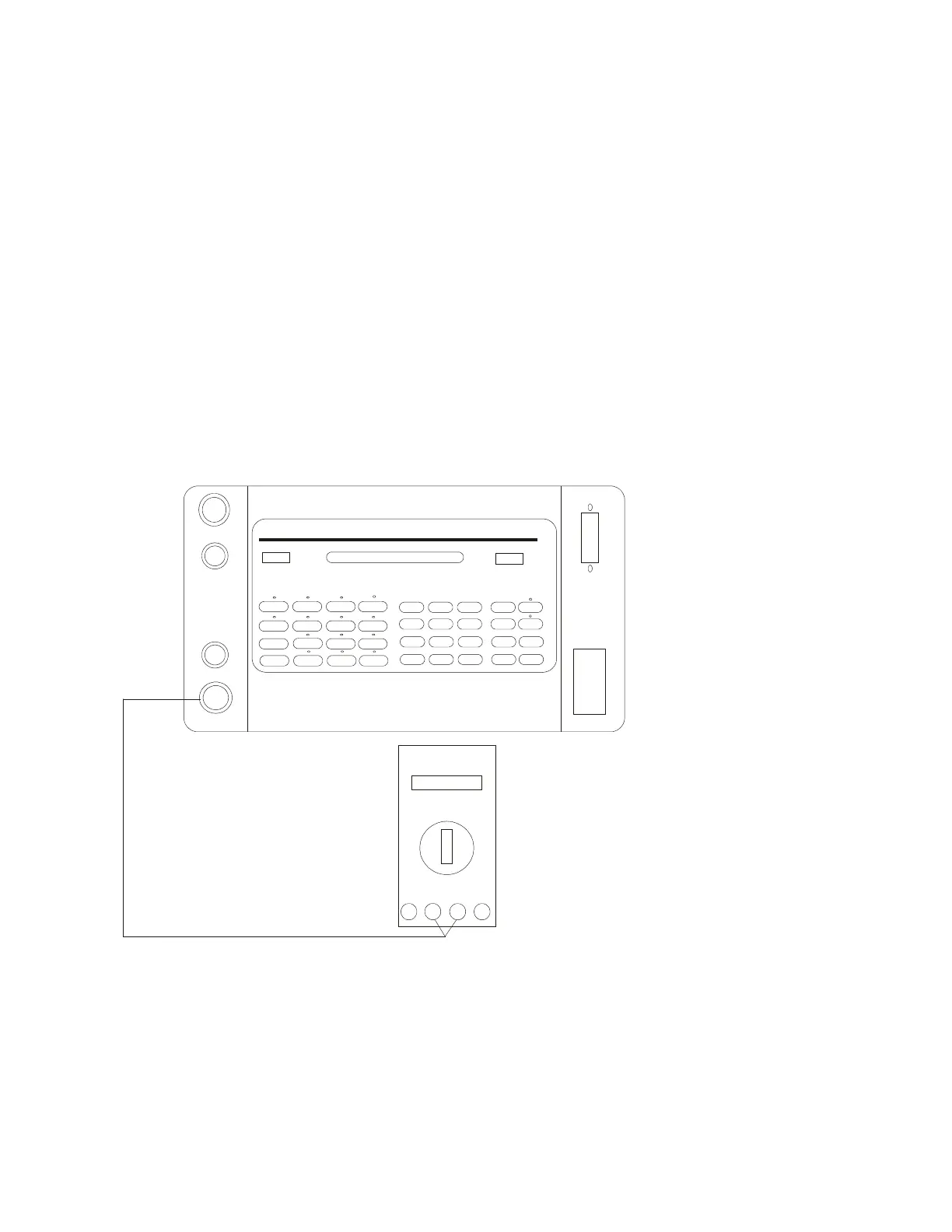

Figure 2.5 – PMC CONNECTIONS FOR TESTING DC CURRENT OPERATION
