Arbiter Systems 1040C - Page 117

3-27
1
4
3
2

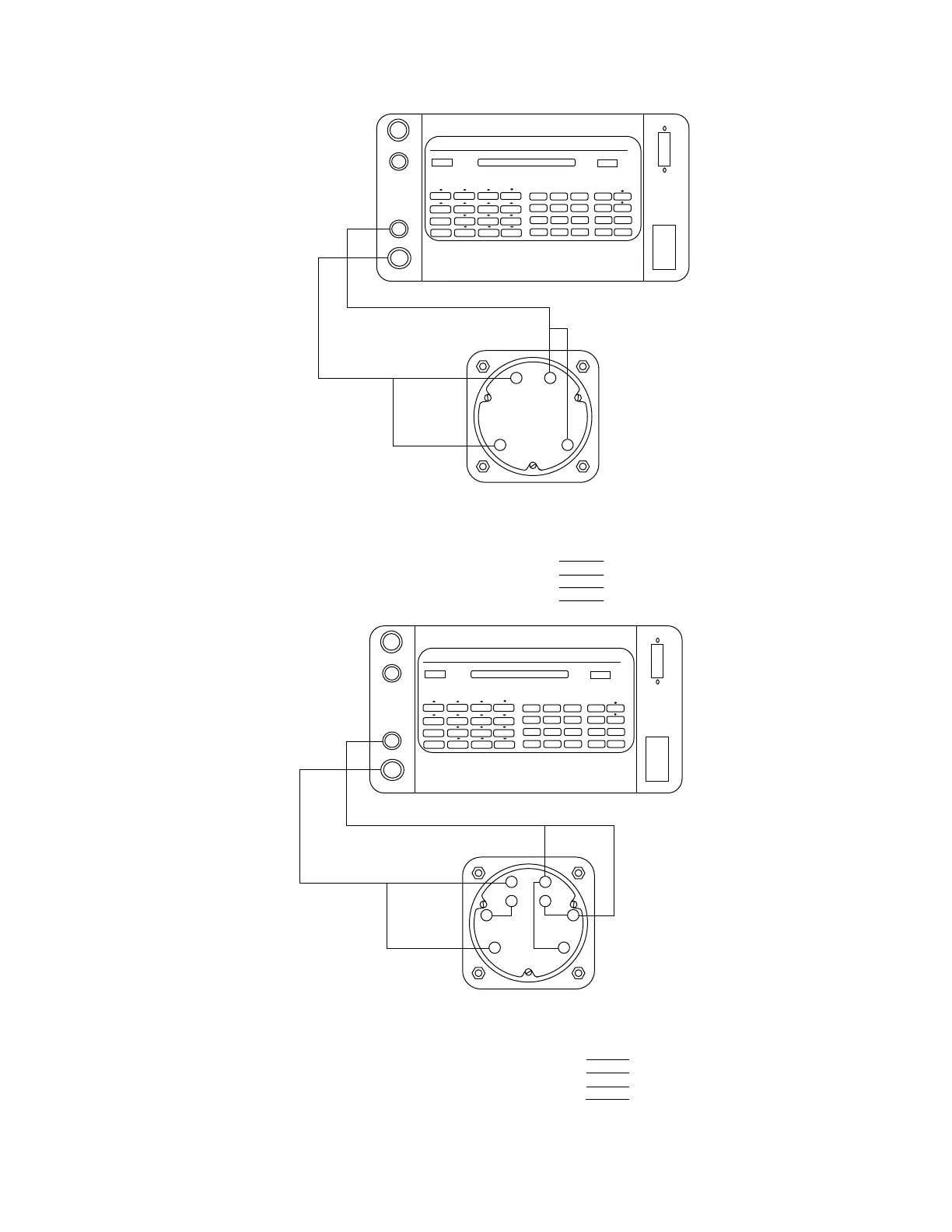

SINGLE PHASE WATTMETER AND VARMETER
AUX. V.
VOLTAGE
CURRENT
1040C PANEL METER CALIBRATOR
REMOTE
Red
Black
Black
Red
YOKOGAWA
10321
103702
10331
103762
(WATT)
(WATT)
(VAR)
(VAR)
1
4
5 6
7 8
3
2
3 WIRE, 3 PHASE VARMETER
AUX. V.
VOLTAGE
CURRENT
1040C PANEL METER CALIBRATOR
REMOTE
Black
Red
Red
Black
YOKOGAWA
103812
10328
10332
103772
