5. SYSTEM CHARACTERISTICS
1) Duty cycle
Rated duty cycle is the percentage of the ratio of operating time at rated Max output current to a
10-minute period.
220V
①：MMA load curve
②：TIG load curve
③：MIG load curve
110V
④：MMA /TIG/MIG load curve

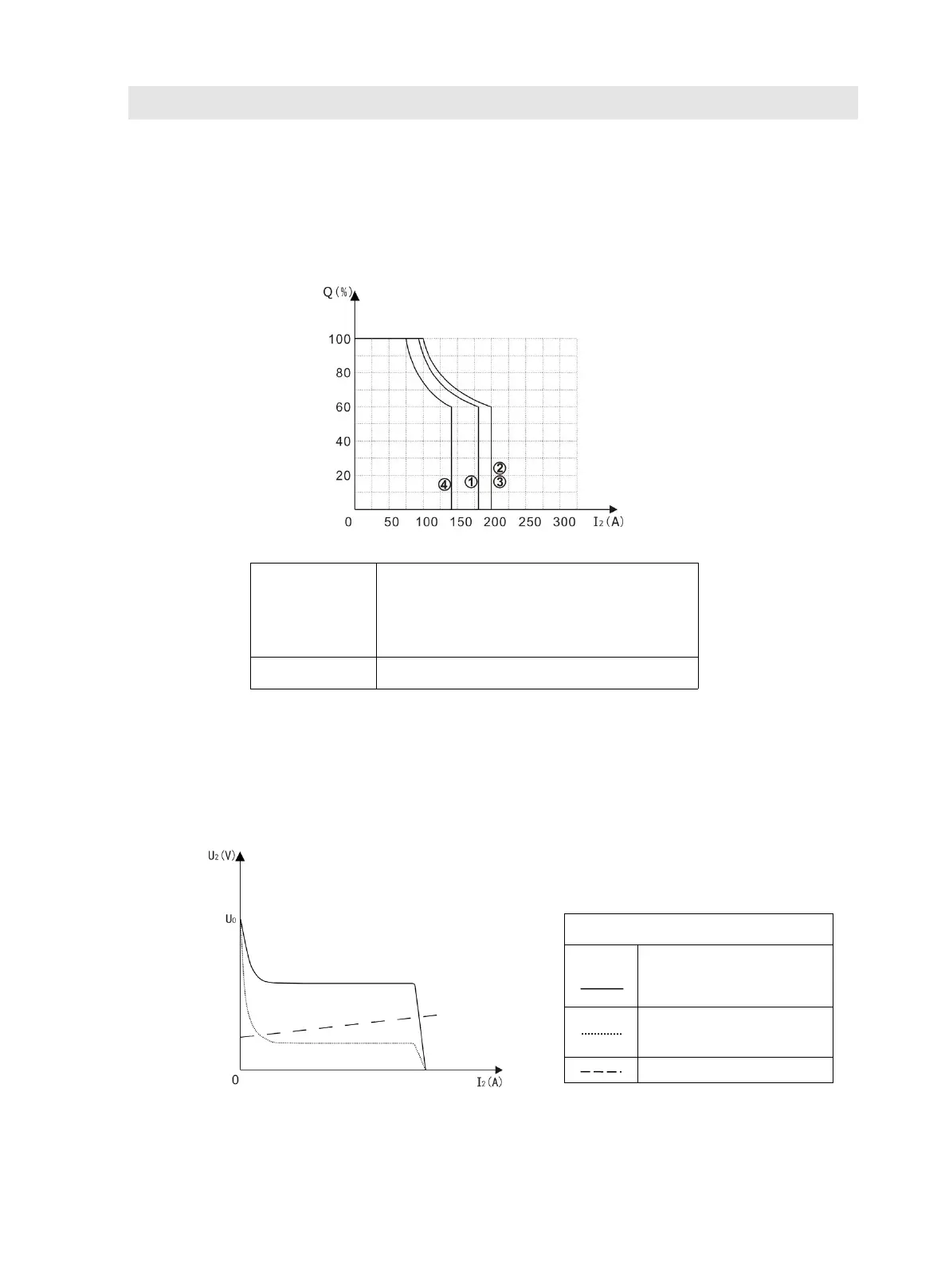

Graph of duty cycle
2) Output characteristics
Graph of output characteristic
External characteristic
curve of max output
External characteristic
curve of mini output
Rated load relationship
