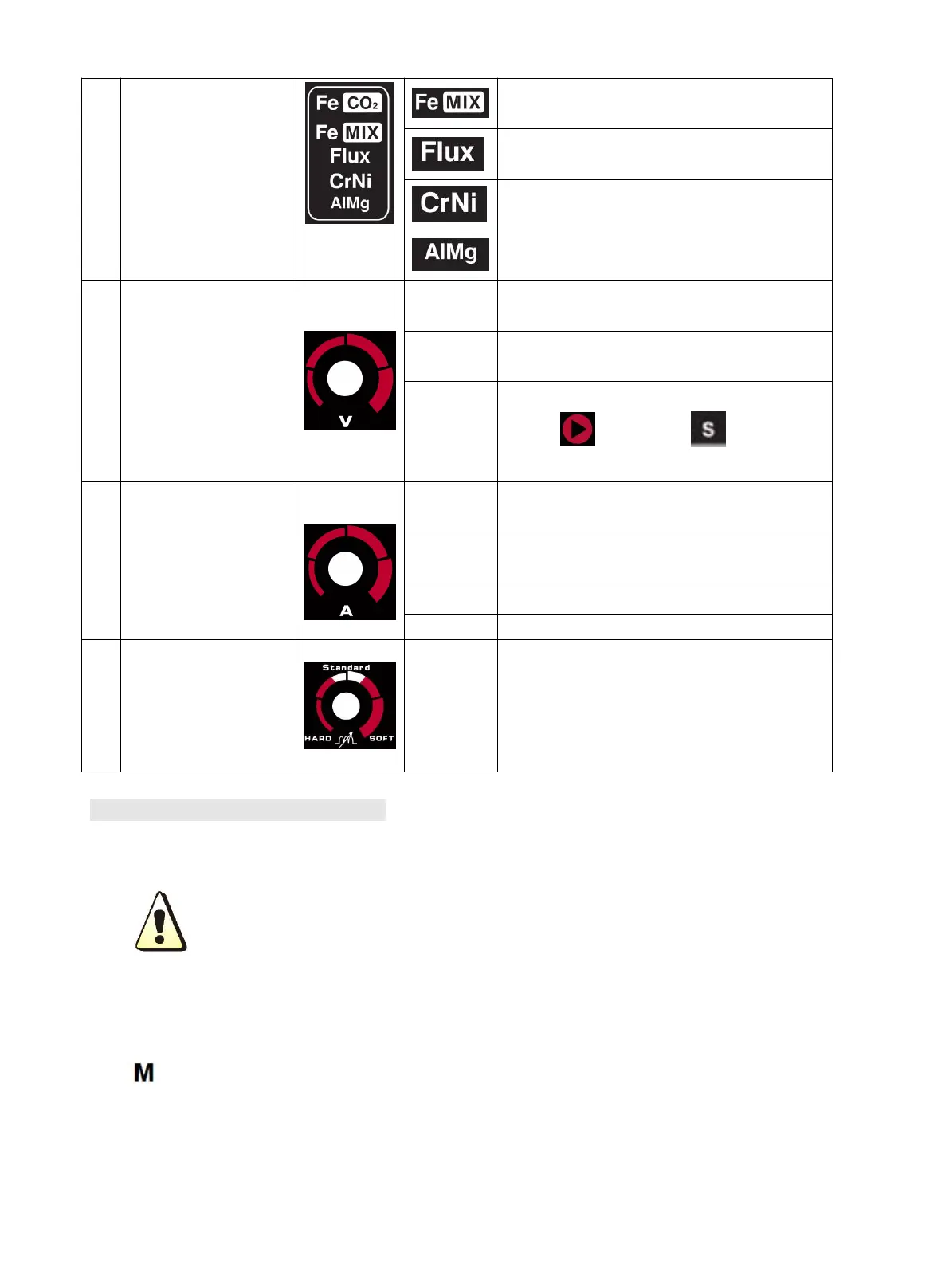

ARCCAPTAIN MIG200 - Detailed Function Description

12
Steel(carbon steel) + Ar80% CO
2
20%
+ER50S-6/ER70S-6
FCAW+gasless+E71T-GS
CrNi(stainless steel) + Ar98% CO
2
2% +
ER308
AlMg(Aluminum-magnesium alloy) +
Ar100% + ER5356
9
Voltage and spot
welding time
adjustment knob
Subtle adjustment on welding voltage in
MIG “synergic”mode
Welding voltage adjustment in MIG
“separated”mode
In MIG “spot welding”mode, press switch
button and select “ ” for spot
welding time adjustment.
10
Current and wire
feed speed
adjustment knob
Welding current adjustment in MIG
“synergic” mode
Wire feed speed adjustment in MIG
“separated” mode
Welding current adjustment in MMA mode
Welding current adjustment in TIG mode
11
Inductance
adjustment knob
Adjust soft or hard arc characteristics in
MIG all mode
9.2 Detailed function description
Attention! Please select welding functions according to welding requirements.
During welding, choose proper welding process and parameters according to
the technology requirements of workpiece. With improper welding process
and parameters, there will be unstable arc, excessive spatter and wire and
electrode sticking during welding.
9.2.1 Parameter group
“ ”, function of parameter group storage and usage, is in support of ten parameter group
storage“0~9” with one group covering all adjustable parameters on the machine panel, including welding
mode and the related conditions and settings. Prior to any other parameters, the parameter group will
automatically save the adjusted parameters(save after keeping the same parameters for 20S).The
parameter group keeps the last used parameters when the machine is turned on again.No designated
