Argo AG4HP061PH - Monobloc Unit Water Connections; Rubber Ring Usage

Air-to-water Heat Pump
22
AG4HP081PH; AG4HP101PH; AG4HP121PH; AG4HP141PH; AG4HP161PH; AG4HP103PH; AG4HP123PH;
AG4HP143PH; AG4HP163PH
Description:

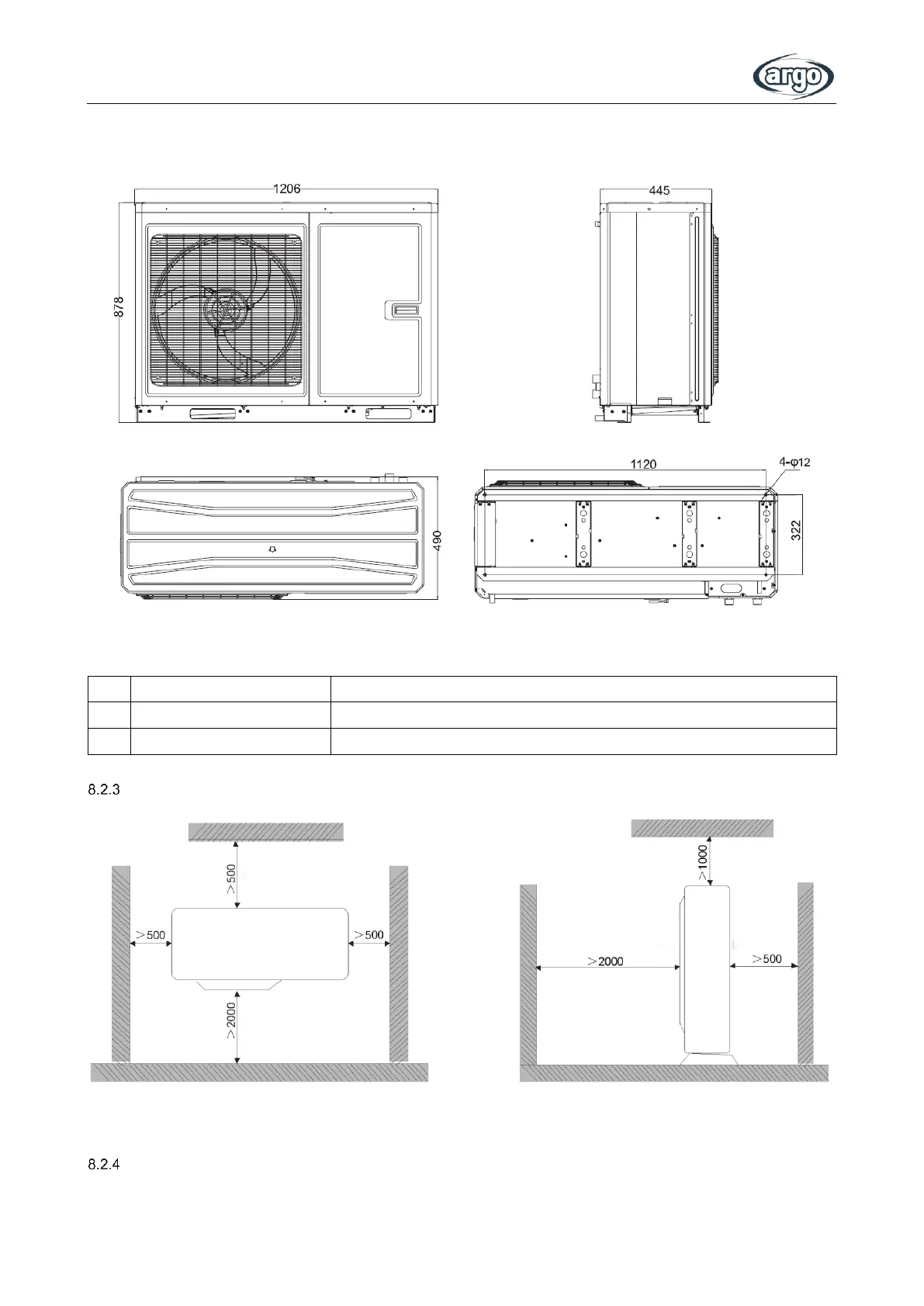

Space requirements for installation
Note: In conderation of space restriction, for the left-handed figure, except the outlet side, distance between the unit
and the nearest barrier at other three sides are allowed to be no less than 300mm; for the right-handed figure, distance
between the inlet side and the nearest barrier is allowed to be no less than 300mm.
Precautions on installation of monobloc unit
(1) When moving outdoor unit, it is necessary to adopt 2 pieces of long enough rope to hand the unit from
4 directions. Included angle between the rope when hanging and moving must be 40° below to prevent center of
N.
Name
Remarks
1
Handle
Used to cover or uncover the front case
2
Air discharge Grill
/
Inlet
Outlet
Inlet
Outlet
