Note

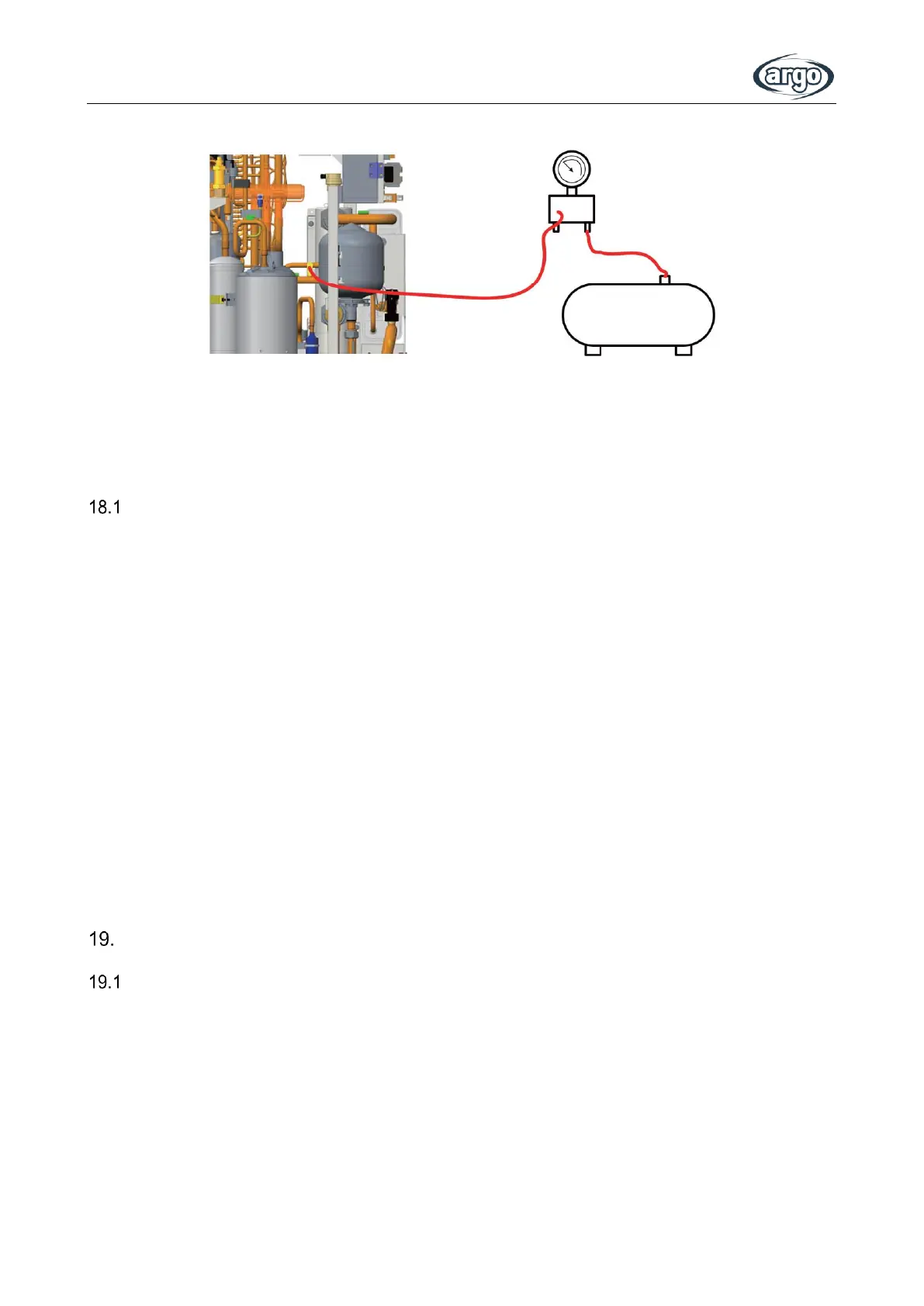

When vacuuming is finished, pressure inside the unit should be kept lower than 80Pa for at least 30 minutes to make
sure there is no leak. Either charging valve 1 or charging valve 2 can be used for vacuuming.
Charging: when vacuuming is finished and it is certain that there is no leak, charging can be done
.
Leak Detection Methods
(1) The following leak detection methods are deemed acceptable for systems containing flammable refrigerants.
(2) Electronic leak detector shall be used to detect flammable refrigerant, but the sensitivity may not be adequate, or
may need re-calibration(Detection equipment shall be calibrated in a refrigerant-free area).
(3) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used.
(4) Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the
refrigerant employed and the appropriate percentage of gas (25% maximum) is confirmed.
(5) Leak detection fluids are suitable for us with most refrigerant but the use of detergents containing chlorine shall
be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.
(6) If a leak is suspected, all naked flames shall be removed / extinguished. If a leakage of refrigerant is found which
requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves)
in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system
both before and during the brazing process.
Note. Prima e durante il funzionamento, utilizzare un rilevatore di perdite di refrigerante adeguato per monitorare l'area
operativa e assicurarsi che i tecnici siano consapevoli di eventuali perdite potenziali o effettive di gas infiammabili.
Assicurarsi che il rilevatore di perdite sia indicato per i refrigeranti infiammabili. Ad esempio, non deve generare scintille e
deve essere completamente sigillato e sicuro.
Installation of Insulated Water Tank
Installation measure
The insulated water tank should be installed and keep levelly within 5m and vertically within 3m from the indoor unit. It
can be installed in the room.
Standing water tank must be installed vertically with the bottom on the ground, never suspended. Installation place must
be firm enough and the water tank should be fixed on the wall with bolts to avoid vibration, as shown in the following figure.
Weight capacity of water tank during installation should also be considered.
