Argo AG4HP061PH - Hydraulic Unit Installation; Outlet Static Pressure Characteristics

Air-to-water Heat Pump
24

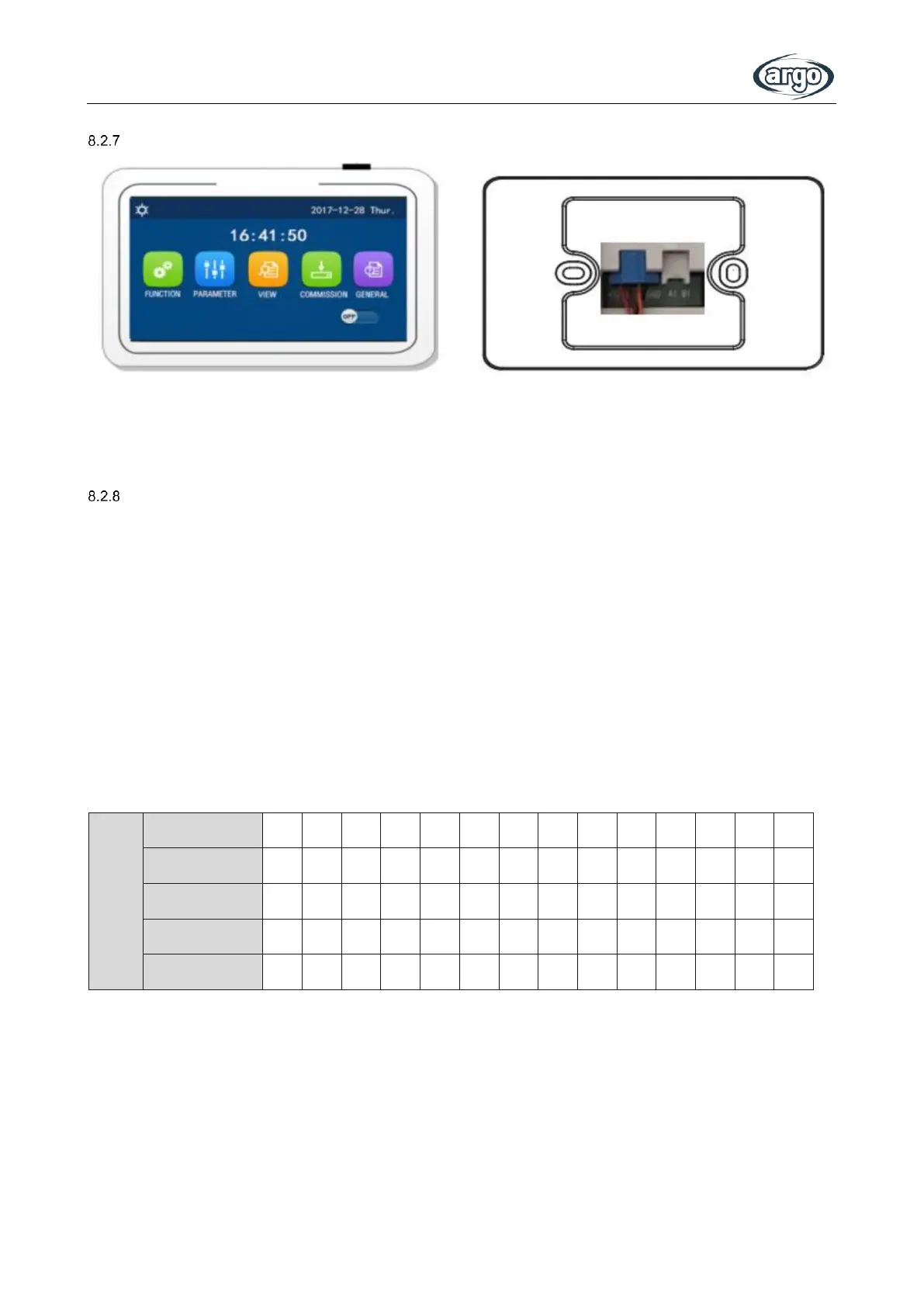

Control panel wire connection
Front view Back view
Il cavo di comunicazione comando unità monoblocco va collegato sul connettore CN22 della scheda AP5. Per eventuali
prolungamenti del cavo contattare preventivamente il servizio post-vendita.
Safety operation of flammable refrigerant
(1) Qualification requirement for installation and maintenance
All the work men who are engaging in the refrigeration system should bear the valid certification awarded by the
authoritative organization and the qualification for dealing with the refrigeration system recognized by this industry. If it
needs other technician to maintain and repair the appliance, they should be supervised by the person who bears the
qualification for using the flammable refrigerant.
It can only be repaired by the method suggested by the equipment’s manufacturer.
(2) Installation notes
The unit is not allowed to use in a room that has running fire (such as firesource, working coal gas ware, operating
heater).
It is not allowed to drill hole or burn the connection pipe.
The unit must be installed in a room that is larger than the minimum room area. The minimum room area is shown on
the nameplate or following table.
A leak test is a must after installation.
Minimum
room
area
(m
2
)
Charge amount(kg)
≤1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2
2.1
2.2
2.3
2.4
2.5
floor location
/
14.5
16.8
19.3
22
24.8
27.8
31
34.3
37.8
41.5
45.4
49.4
53.6
window mounted
/
5.2
6.1
7
7.9
8.9
10
11.2
12.4
13.6
15
16.3
17.8
19.3
wall mounted
/
1.6
1.9
2.1
2.4
2.8
3.1
3.4
3.8
4.2
4.6
5
5.5
6
ceiling mounted
/
1.1
1.3
1.4
1.6
1.8
2.1
2.3
2.6
2.8
3.1
3.4
3.7
4
(3) Maintenance notes
Check whether the maintenance area or the room area meet the requirement.
- It’s only allowed to be operated in the rooms that meet the requirement.
Check whether the maintenance area is well-ventilated.
- The continuous ventilation status should be kept during the operation process.
Check whether there is fire source or potential fire source in the maintenance area.
- The naked flame is prohibited in the maintenance area; and the “no smoking” warning board should be
hanged.nameplate.
Check whether the appliance mark is in good condition.
- Replace the vague or damaged warning mark.
