Control Panel
The control panel can be installed indoors using a 502E box. In the accessories box an 8 m long connection wire
is available for connecting the control panel to PCB AP5. The blu connector shall be wired to CN22 on AP5 and the
relevant ground wire to a grounding terminal.
Optional: 400300411 Connection wire “Panel-AP5” (15 m long)

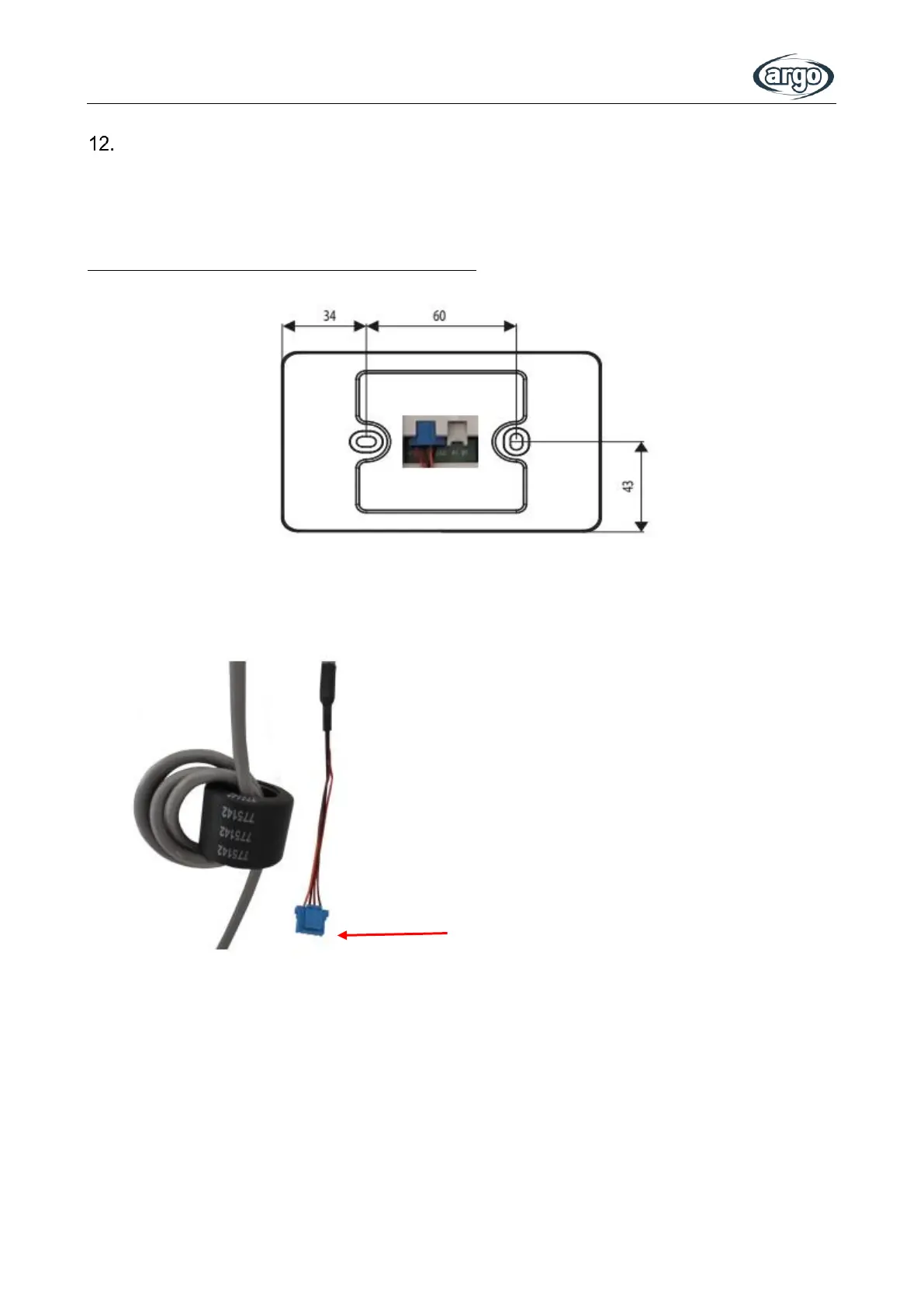

Back view
Connec to to PCB AP5, terminal CN22
