Argo AG4HP061PH - Page 45

Air-to-water Heat Pump
44
AG4HP103PH; AG4HP123PH; AG4HP143PH; AG4HP163PH

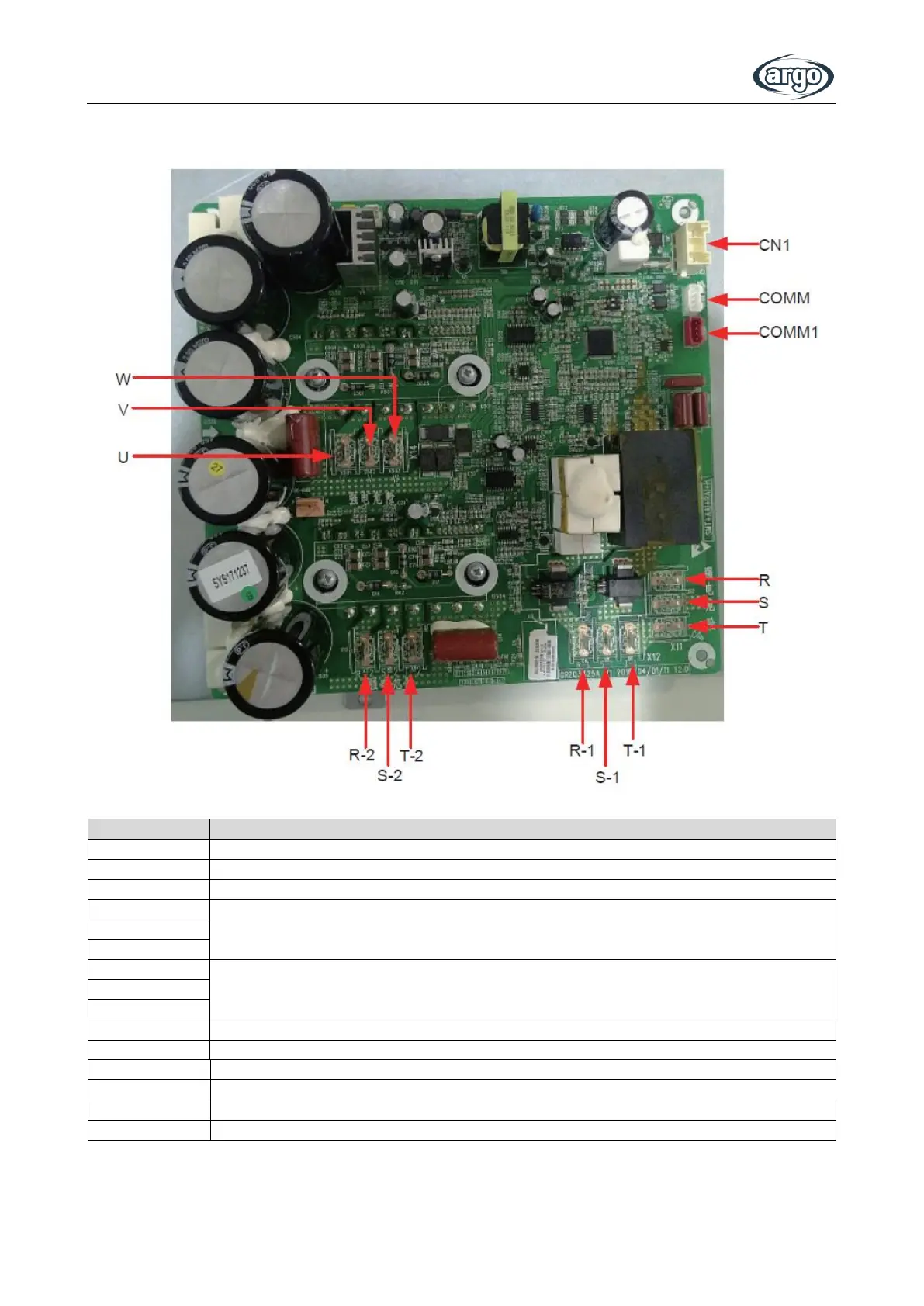

Silk Screen
Introduction
W
Connector to the compressor phase-W
U
Connector to the compressor phase-U
V
Connector to the compressor phase-V
R-2
Connector to reactor (input)
S-2
T-2
R-1
Connector to reactor (input)
S-1
T-1
R
Connector to filter L1-F
S
Connector to filter L2-F
T
Connector to filter L3-F
COMM1
Reserved
COMM
Communication
CN1
Switch power input
