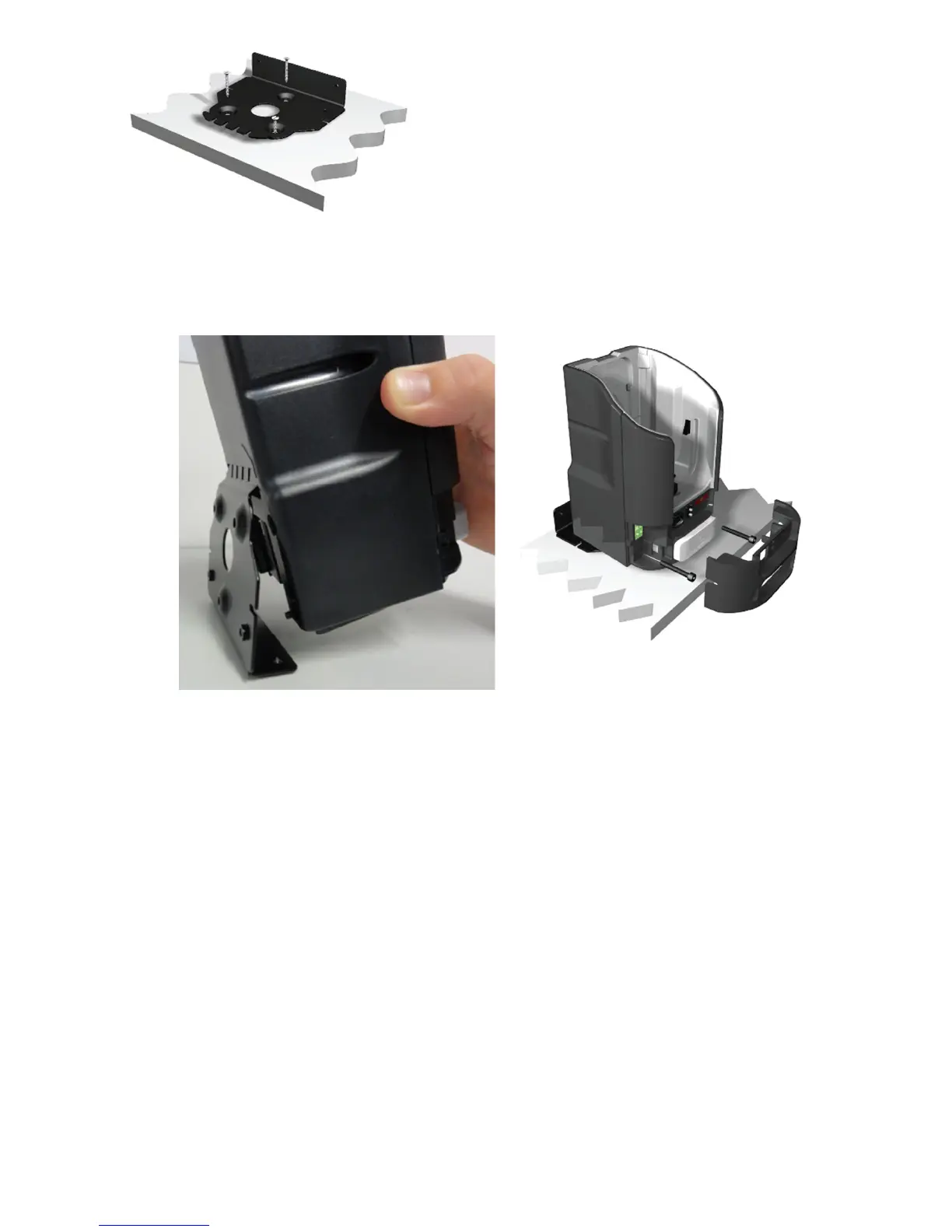

1. Using the universal mounting bracket as a template, mark out the drill-hole
positions and drill holes.
2. Using suitable fixings, attach the mounting plate to the chosen horizontal surface.
Up to six (6) charger stations can be powered in a “daisy chain” configuration. The
mounting plates are designed so they can be mounted next to each other as shown
below.
3. Remove the front panel of the charger station using a small flat tool as shown e.g.
small flat screwdriver (not supplied).
