Avon Protection 7 DAS775571AA Version 9, December 2015
GR 13313 CR121804
3 OPERATION AND USE

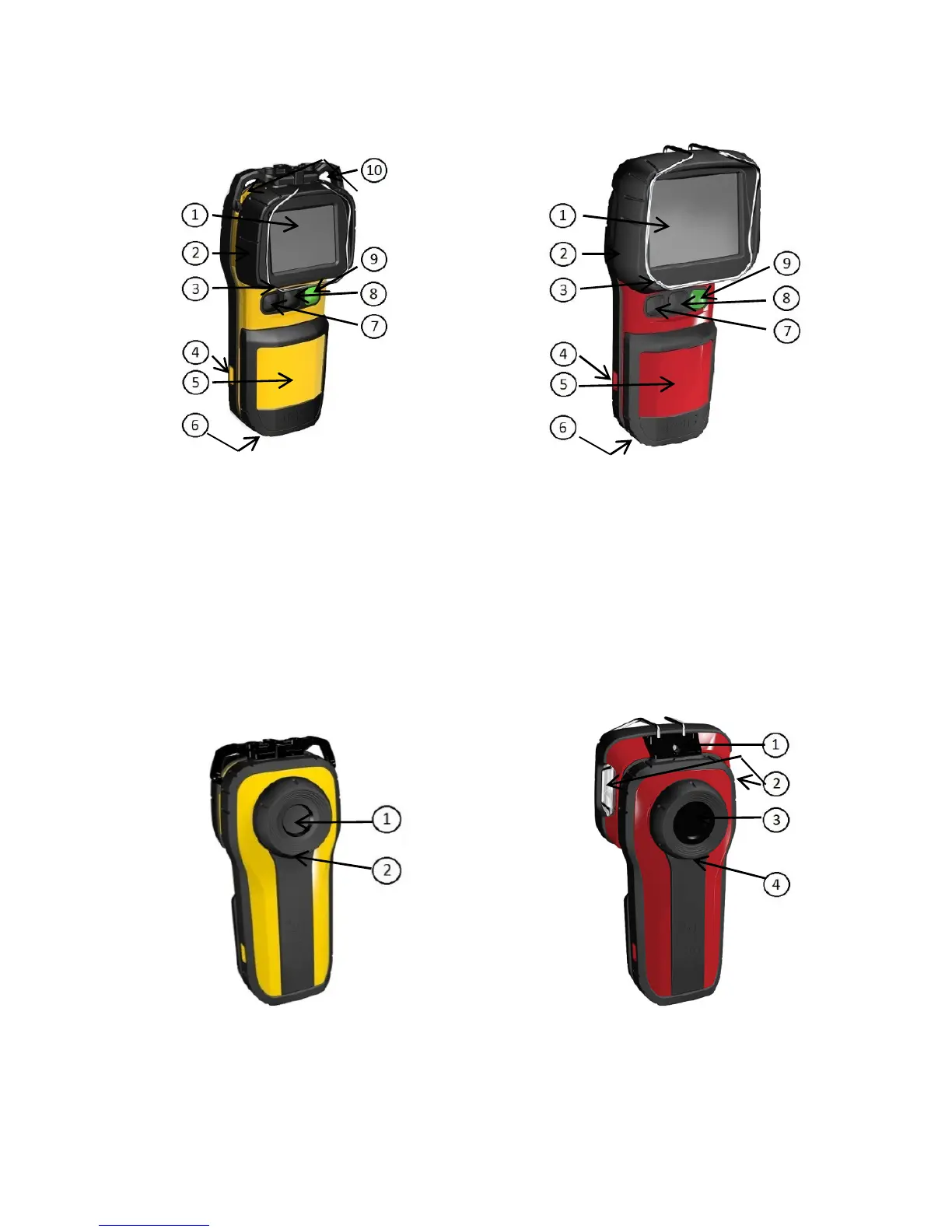

3.1 System Configuration (Camera Rear)
Mi-TIC E Mi-TIC S
1. 2.7” LCD Display 1. 3.5” LCD Display
2. Display Bumper 2. Display Bumper
3. Pocket Clip (removable) 3. Pocket Clip (removable)
4. Docking latch 4. Docking latch
5. Battery 5. Battery
6. Docking connector 6. Docking Connector
7. Function button 1 (Zoom, Video *) 7. Function button 1 (Zoom, Video *)
8. Function button 2 (Application Mode, Image*) 8. Function button 2 (Application Mode, Image*)
9. Green ON/OFF Button 9. Green ON/OFF Button
10. Lanyard Loops
*default settings
3.2 System Configuration (Camera Front)
1. Replaceable Germanium Window 1. Laser pointer
2. Window Release Latch 2. Lanyard Loops
3. Replaceable Germanium Window
4. Window Release Latch
