7.3 X-ray Tube Specifications and Characteristics
The VDT70/0.4/12CP is designed for intraoral dental imaging by an X-ray unit, and is available for
nominal tube voltage with self-rectified or constant potential circuit – manufactured by Kailong;
distributed in the U.S.A. by Vista Technology.
Nominal tube voltage
60kV
Nominal focal spot (IEC 60336:1993)
0.4mm
Maximum anode heat content
4500J
Maximum current continuous service
1.5mA x 70kV
Maximum anode cooling rate
100W
Nominal anode input power
430W
Target material
Tungsten
Target angle
12°
Filament characteristics
2.2–3.0A, 2.0–3.5V
Minimum inherent filtration (IEC 60522:1999)
0.8mm Al / 50kV
X-ray source assembly maximum heat content
6500J
X-ray source assembly (mfg by VMI)
PS454
CENTRAL X-RAY
F
C C
F
F:FILAMENT
C:CATHODE

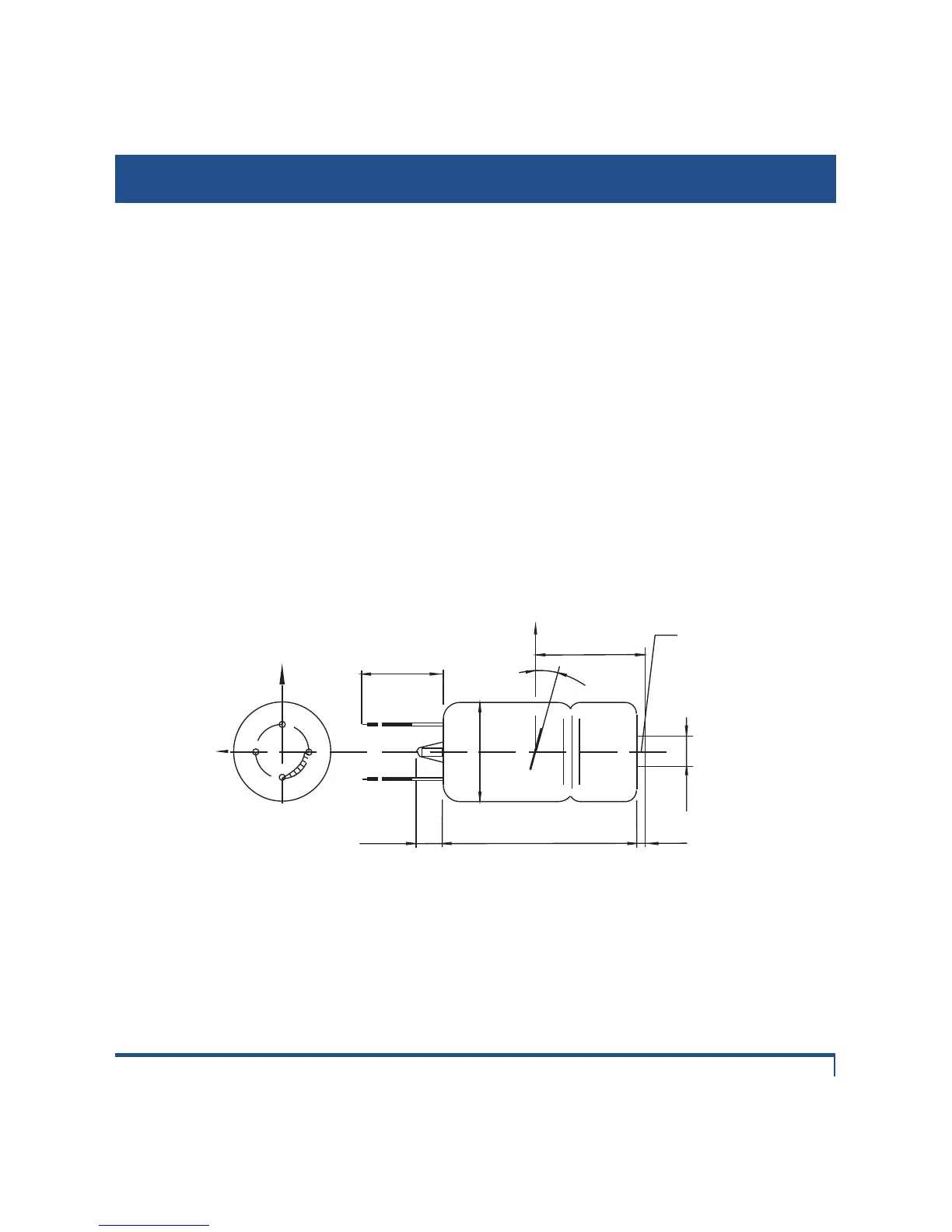

OUTLINE DRAWING
y M4Deep10
37±1
100MIN 12°
Ø30MAX
Ø12
x
10MAX 67MAX 2MIN
x axis : horizontal y axis : vertical
