EN - 24

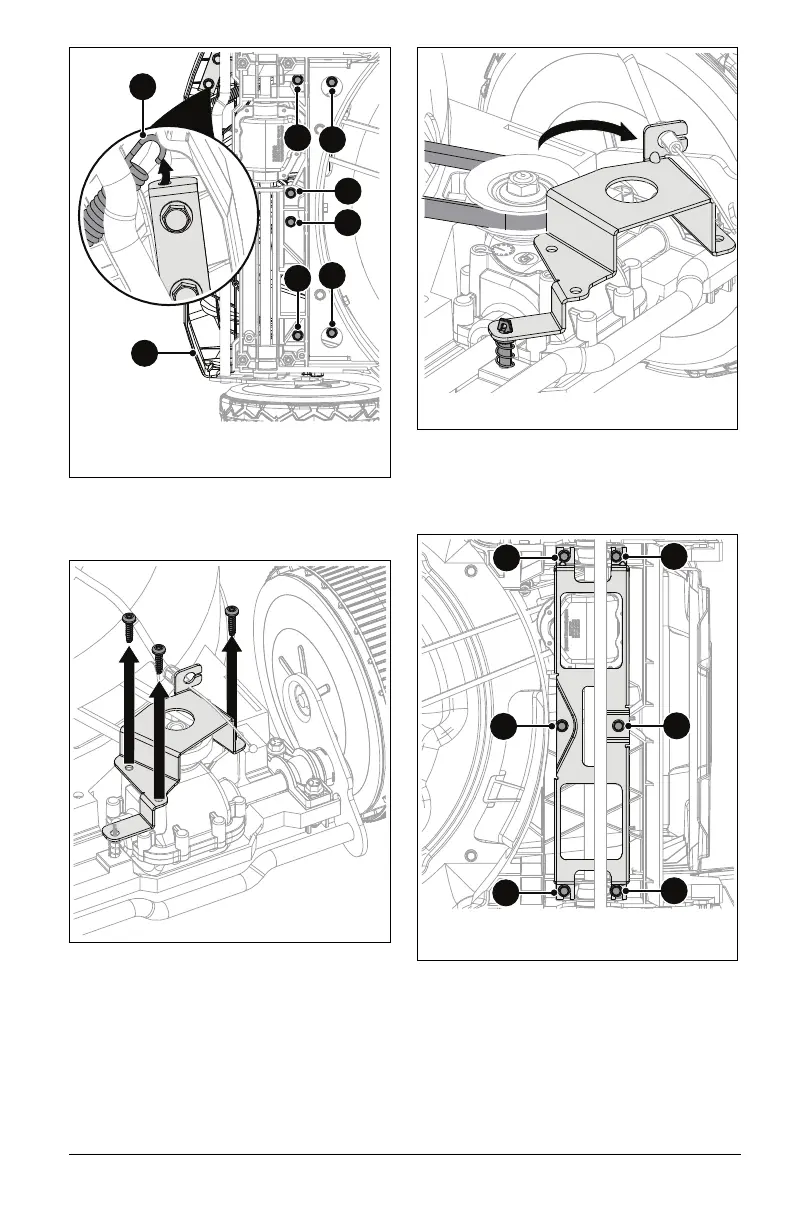

4. Remove and retain three Torx head
screws from transmission bracket. See
Figure 39.
See Figure 40.
5. Rotate transmission bracket around
return spring holder to access belt.
6. Remove drive belt.
Models 911609, 911614 only:
1. Remove and retain six hex screws from
support bracket and remove bracket. See
Figure 41.
See Figures 30 and 31.
2. Place a support, such as a wood block,
under deck rear.
3. Remove shoulder bolts retaining rear
wheels and remove wheels.
4. Remove pinion gears and dust cover.
1. Hex Screws
2. Cover
3. Extension Spring
Figure 38
1
1
1
1
1
1
2
3
Figure 39
Figure 40
Figure 41
1. Hex Screws
1
1
1
1
1
1
