5. Disconnect extension spring from
transmission bracket. See Figure 42.
6. Remove transmission assembly. See
Figure 43.
7. Remove and retain three Torx head
screws from transmission bracket and
remove bracket. See Figure 44.
8. Remove drive belt.
Install Drive Belt
Models 911609, 911614 only:
See Figures 45 and 46.
1. Install drive belt around transmission
pulley.
2. Reinstall transmission bracket using
original hardware. Torque to 5.1 N•m (45
in-lbs).
3. Position transmission assembly in
grooves of baffle.
4. Install belt around spindle pulley.

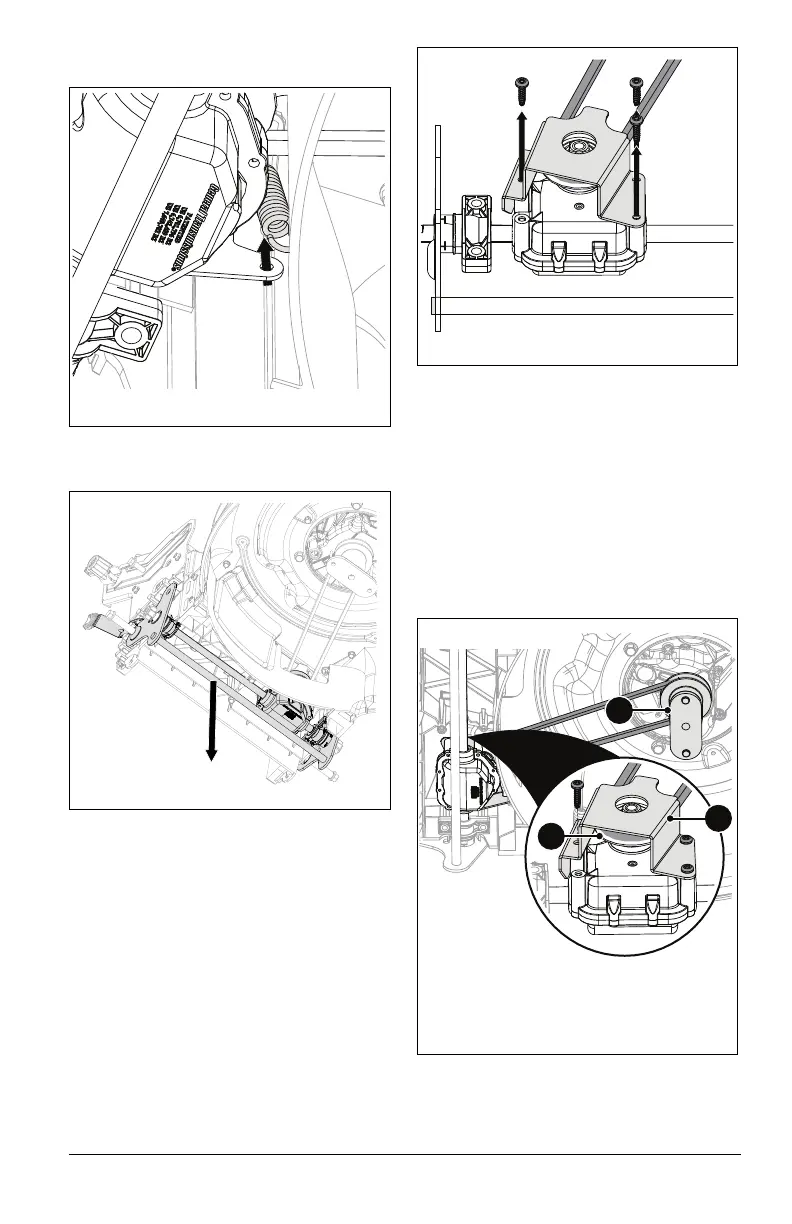

Figure 42
Figure 43
Figure 44
1. Transmission Pulley
2. Transmission Bracket
3. Spindle Pulley
Figure 45
1
2
3
Model 911614
