5. Reconnect extension spring.to
transmission bracket.
6. Reinstall support bracket using original
hardware. Torque outer hardware to
2.8 N•m (25 in-lbs).
IMPORTANT: Ensure bracket is in correct
orientation as shown in Figure 41.
7. Reinstall pinion gear and dust cover.
8. Reinstall rear wheels using original
hardware. Torque bolts to 16.3 N•m (144
in-lbs).
9. Reinstall spindle pulley cover using
original hardware. Torque to 2.8 N•m (25
in-lbs).
10. Reinstall blade(s) using original
hardware. See Install Blade on page 19
or Install Blades on page 20.
11. Reconnect spark plug wire.
Model 911608 only:
See Figure 47.
1. Install drive belt around transmission
pulley.
2. Reinstall transmission bracket using
original hardware. Torque to 5.1 N•m (45
in-lbs).
NOTICE: Ensure the return spring is properly
connected to the transmission bracket.
3. Install belt around spindle pulley.
4. Reinstall front cover using original
hardware.
5. Reconnect extension spring to
transmission bracket.
6. Reinstall spindle pulley cover using
original hardware. Torque to 2.8 N•m (25
in-lbs).
7. Reinstall flange bracket using original
hardware.
8. Reinstall blade using original hardware.
See Install Blade on page 19.
9. Reconnect spark plug wire.

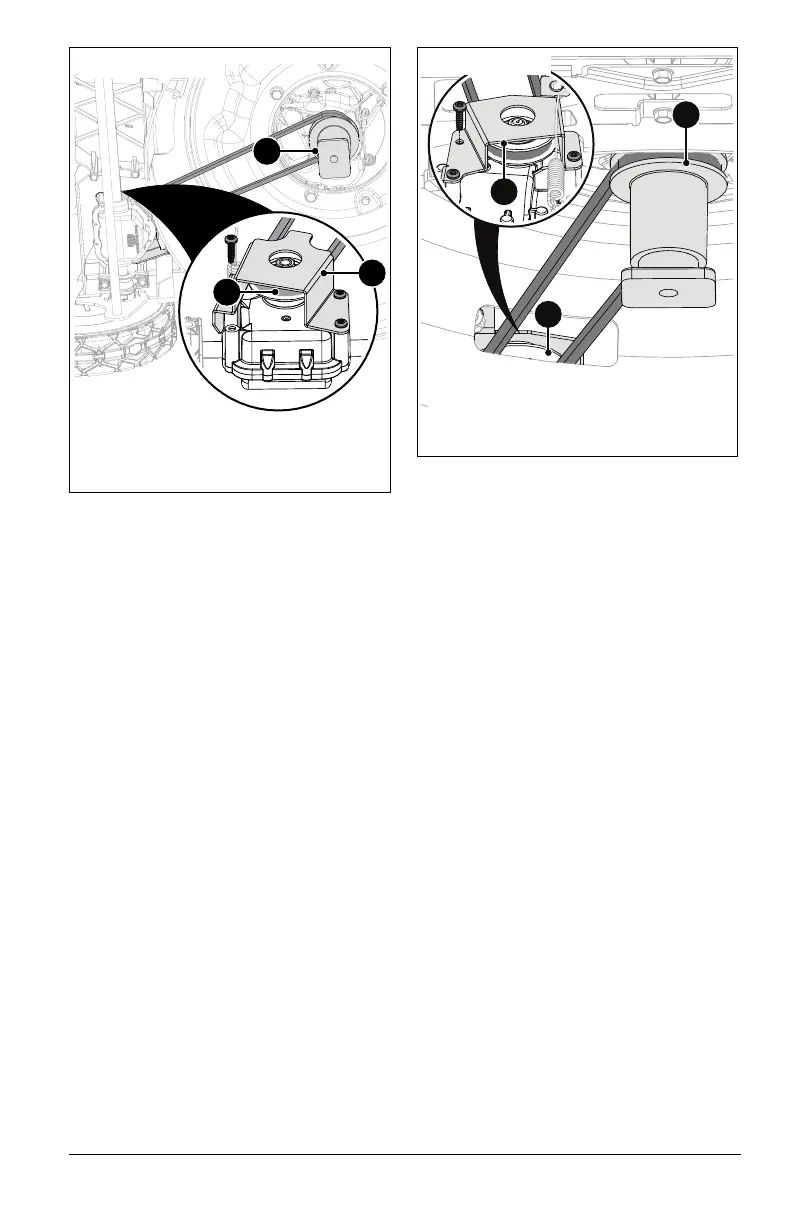

1. Transmission Pulley
2. Transmission Bracket
3. Spindle Pulley
Figure 46
1
2
3
Model 911609
1. Transmission Pulley
2. Transmission Bracket
3. Spindle Pulley
Figure 47
2
1
3
Model 911608
