Arista MicroBox-7824B-E01 - Page 13

13

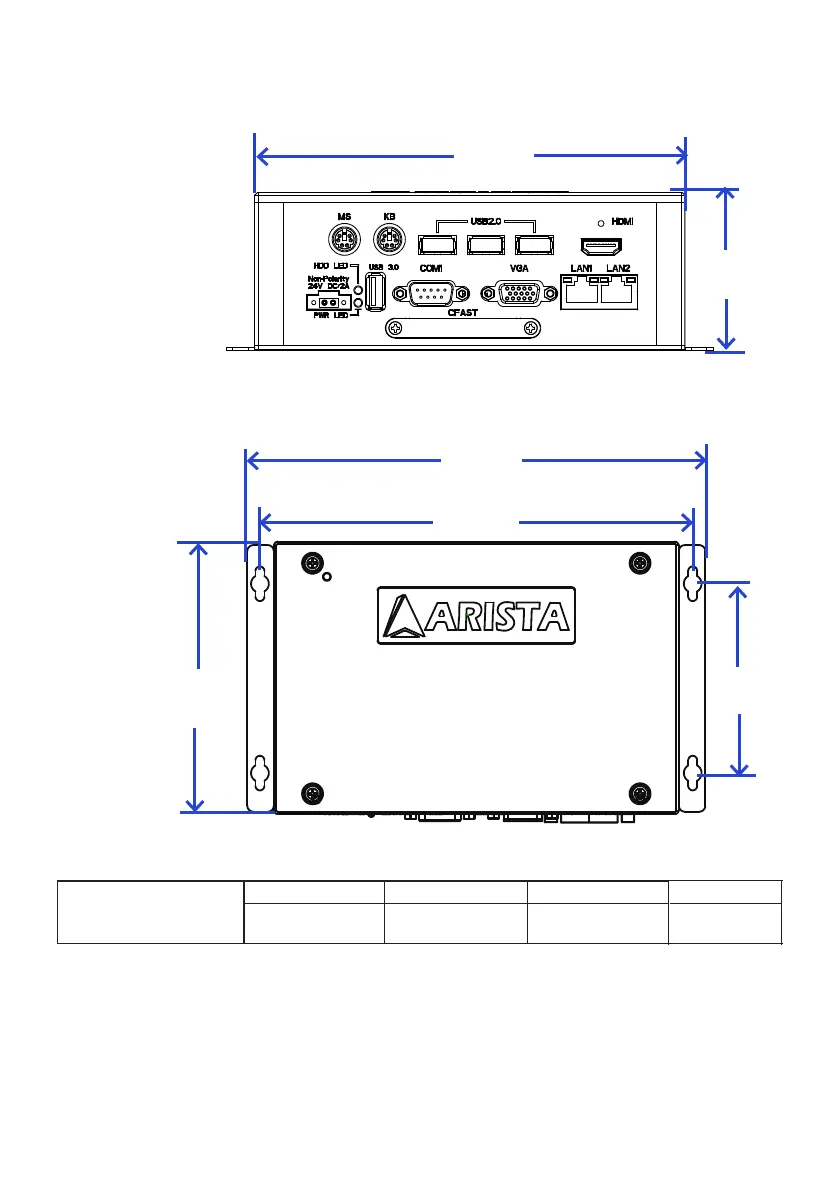

Top View
81.0mm
3.19"
116.5 mm
4.59"
195.8mm
7.71"
185.0 mm
7.28"
Front View
173.0 mm
6.81"
63.5 mm
2.50"
MicroBox-7824-E02
MicroBox-7824B-E02
L(Overall length) H(Overall height) D(Overall width) Weight
7.71”/195.8mm 2.50”/63.5mm 4.59”/116.5 mm 4.4lb/2.0 kg
