Arista MicroBox-7824B-E01 - VGA Port Pin Assignments

16

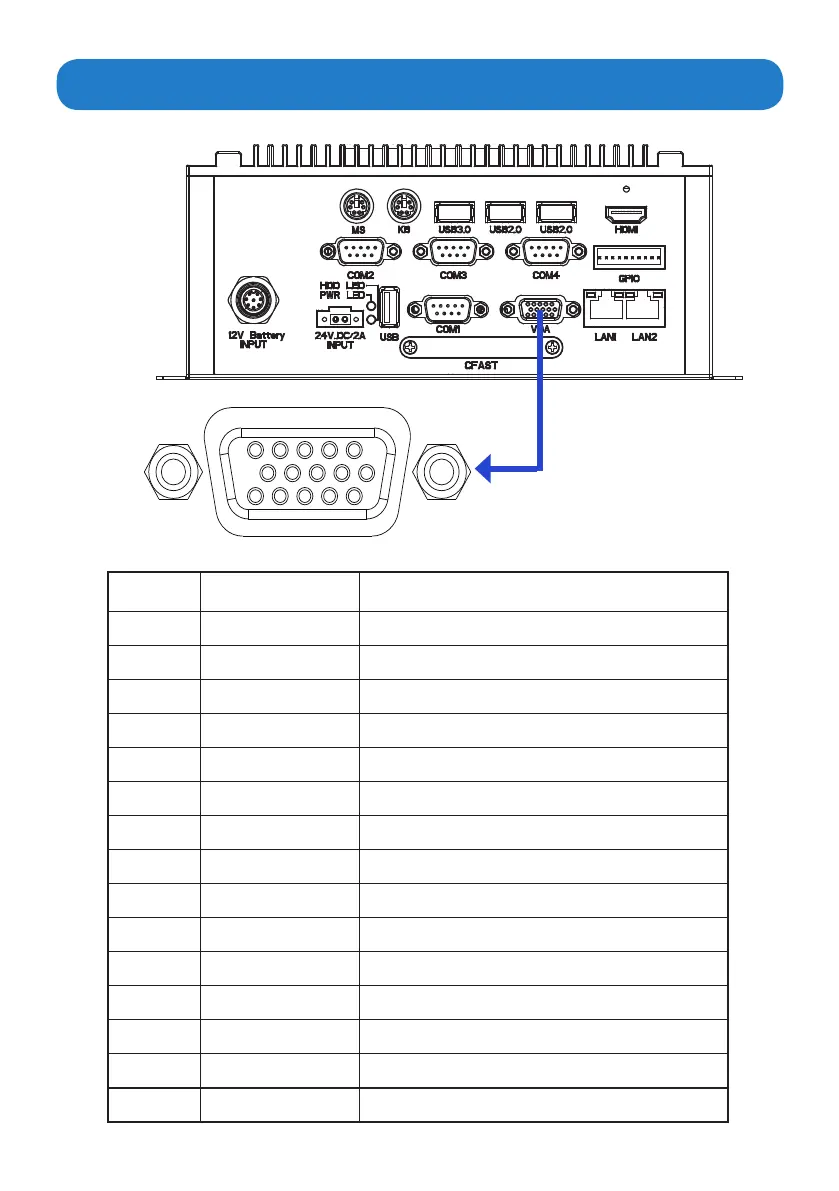

Pins in the VGA port
2345
6
78
9
10
1112131415
Pin NO. Pin Assignment Denition
1 VGA R VGA Red signal
2 VGA G VGA Green signal
3 VGA B VGA Blue signal
4 NC No connection
5 GND Ground
6 GND Ground
7 GND Ground
8 GND Ground
9 NC No connection
10 GND Ground
11 NC No connection
12 CRT DDC Data The data of display data channel
13 VGA HS VGA H-Sync signal
14 VGA VS VGA V-Sync signal
15 CRT DDC Clock The clock of display data channel
1
Pins in the GPIO port
(only for MicroBox-7824B-E01)
