Arista MicroBox-7824B-E01 - Connecting Peripherals

24
Mouse
Keyboard
Figure 1
MicroBox-7824B-E01
USB port

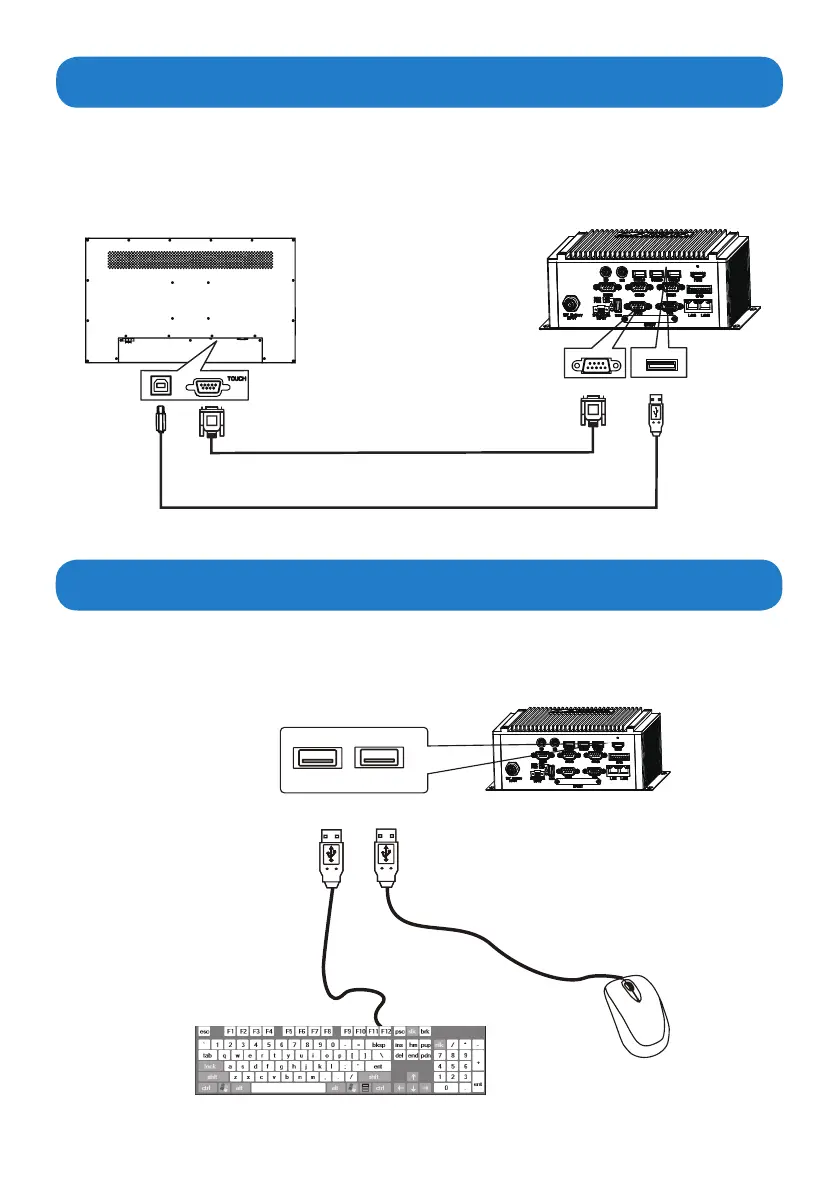

Connecting to keyboard and mouse
•InsertaUSBkeyboardandaUSBmouse(not supplied) to MicroBox-7824B E-Series for
controlling on the computer(Figure 1). You can also insert a PS2 type keyboard or a PS2
type mouse(not supplied) to your MicroBox-7824B E-Series industrial computer(Figure 2).
Connecting to touch screen
MicroBox-7824B-E01
USB port
USB port
Serial port(COM1~COM4)
Display
Serial data cable(not supplied)
USB cable
(not supplied)
• Connect one end of the USB cable(not supplied) or serial data cable(not supplied) to
the USB port or serial port(COM1~COM4 port) of the MicroBox-7824B E-Series fanless
industrial microbox computer. Connect the other end of the USB cable or serial data
cable to the USB port or serial port of a display.
