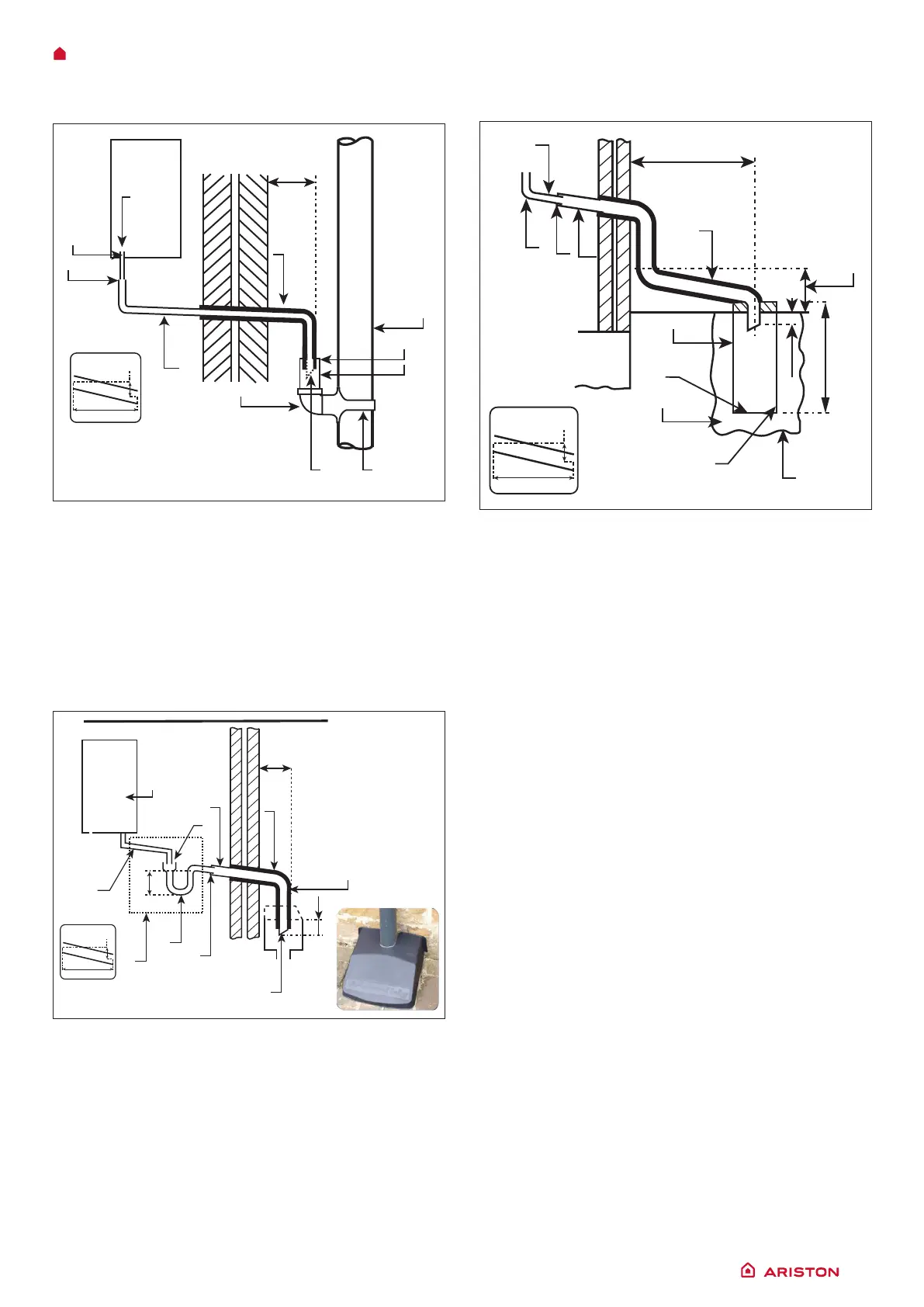

6. External drain, gully or rainwater hopper
7. Example of a purpose made soakaway
≤ 3000
8
4
7
6
5
9
2
3
1
11
10
1000
52
Minimum pipe
gradient
≤ 3000
≥25
38
3
7
2
9
4
8
6
5
10
11
1
1000
52
Minimum pipe
gradient
8
1
3
4
5
6
9
10
11
2
7
≥300
>=500 L <=3000
≥25
1000
52
Minimum pipe
gradient
1. Boiler
2. Visible air break
3. 38mm visible trap
4. Visible air break and trap
not required if there is
a trap with a minimum
condensate seal of 38mm
incorporated into the
boiler5.
External lengh of pipe 3m
maximum
6. Open end of condensate
discharge pipe direcy into
gully 25mm min below
grating but above water
level: end cut 45°
7. Minimum internal diameter
19 mmn
8. Pipe size transition point
9. Minimum internal diameter
30 mm
10. Water/weather proof
insulation.
11. Fit drain cover/leaf guard.
1. Condensate discharge
pipe from boiler
2. Ground (this section of
the condensate discharge
pipe may be run either
above or below round
level); End cut at 45°
3. Diameter 100mm minimum
plastic tube
4. Bottom of tube sealed
5. Limestone chippimgs
6. Two rows of three 12mm
holes at 25mm centres,
50mm from bottom of
tube and facing away
from house
7. Hole depth 400mm
minimum by 300mm
diameter
8. Minimum internal diameter
19 mm
9. Pipe size transition point
10. Minimum internal diameter
30 mm
11. Water/weather proof
insulation.
1. Condensate discharge
pipe from boiler
2. Pipe size transition point
3. Water/weather proof
insulation.
4. 43mm 90° male/female
bend
5. External rainwater pipe
into foul water
6. External air break
7. Air gap
8. 68mm PVCu strap on
tting
9. Minimum internal diameter
19mm
10. Minimum internal diameter
30 mm
11. End cut at 45°.
5. External termination to rainwater downpipe (NB only
combined foul/rainwater drain)
