Ariston microGENUS HE 28 MFFI Installation And Servicing Instructions

15
NOTE:SEE PAGE 19 FOR MAXIMUM AND MINIMUM FLUE
RUNS.
PART NO: 33108080 (BLACK) / 3318081 (RED)
C
ONTENTS:
1X SILICONE O-RING (60mm)
1X CONICAL ADAPTOR (60/100mm)
1
X VERTICAL FLUE KIT (80/125mm)
The vertical flue kit is supplied with a specially
designed w
eather proof terminal fitted, it can be used
either with a flat roof or a pitched roof.
The
Vertical flue kits useable lengths with the pitched
roof flashings are indicated in
Fig. 2.17.
Before proceeding to fit the flue, ensure that the
maximum flue length has not been exceeded (See
the tables on Page 19) and that all elbows and bends
have been taken into consideration, the maximum
flue length is 4 metres, for each additional 90
o
elbow
1 metre must be subtracted from the total flue length,
and for each 45
o
0.5 metres must be subtracted from
the total flue length (the height of the vertical
adaptor and a 45
o
bend can be seen in Fig. 2.18).
Mar
k the position of the flue hole in the ceiling and/or
2.9.3. FITTING
THE
CO
AXIAL
FLUE
(Ø 60 / 100 VERTICAL)

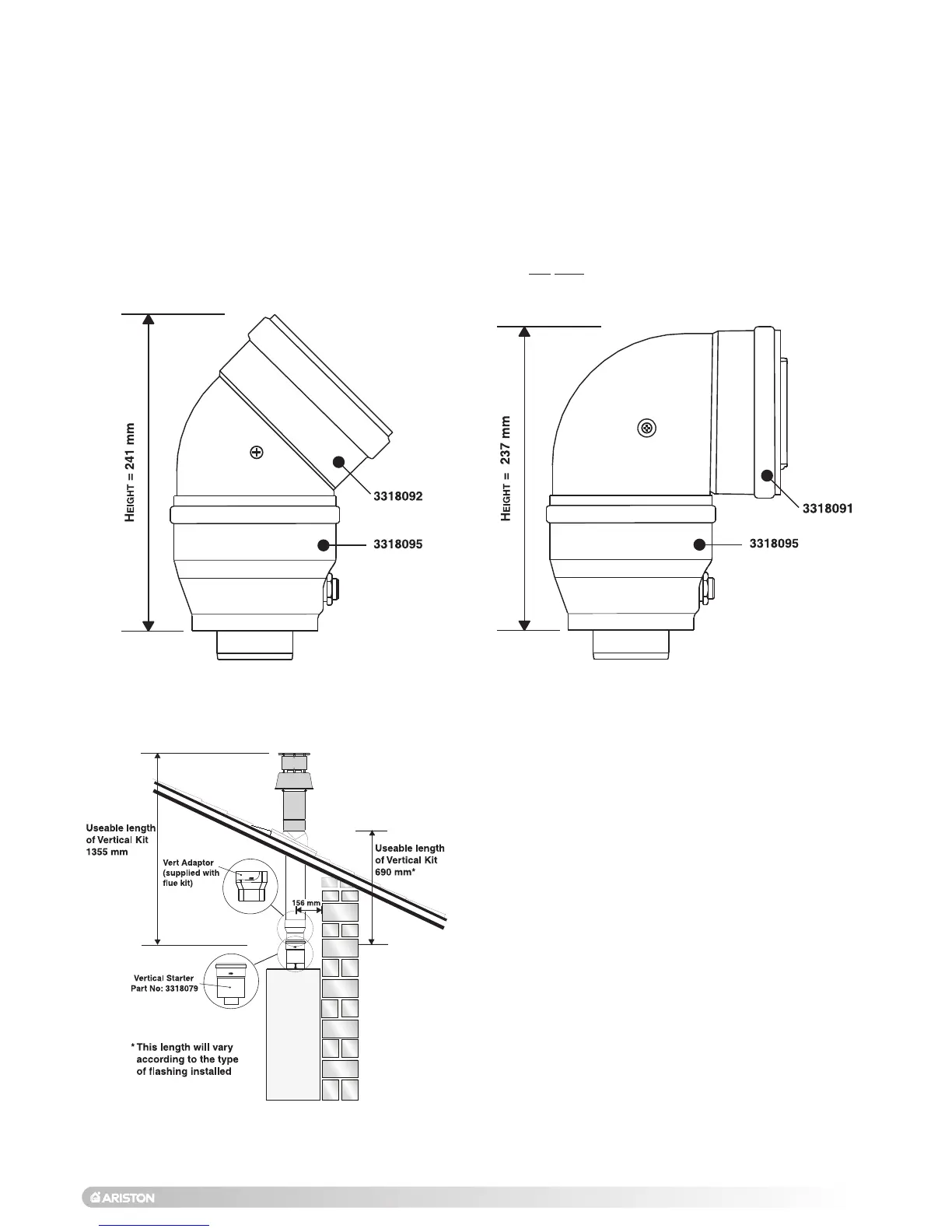

Fig. 2.15
Fig. 2.16
Fig. 2.17
clamps are necessary to secure the flue components.
B
efore proceeding to fit the flue, ensure that the
maximum flue length has not been exceeded (See the
t
ables on Page 19) and that all elbows and bends have
been taken into consideration, the maximum flue length
is 10 metres, for each additional 90
o
elbow 1 metre
must be subtracted from the total flue length, and for
e
ach 45
o
0
.5 metres must be subtracted from the total
f
lue length
(
the height of the vertical adaptor and a
45
o
bend can be seen in Fig. 2.15 and a 90
o
bend
(raised horziontal only) in Fig. 2.16).
NOTE: DO NOT CUT THE VERTICAL FLUE KIT.
