1. Remove the recuperator - see paragraph. 6.3.8
2. Unscrew the two screws “Y” (FIG.6.36);
3. Remove the recuperator housing (FIG.6.37);
4. Reassemble in reverse order.
THE SIDE COVER OF THE RECUPERATOR MUST NOT BE REMOVED,
THE TWO SCREWS ARE COVERED BY SECURITY PAINT, THERE IS A
DANGER THAT FLUE GASSES COULD LEAK INTO THE ROOM IF THE
FRONT COVER IS REMOVED
.
SHOULD IT BE NECESSARY TO REMOVE THE RECUPERATOR, THE
WHOLE UNIT MUST BE REMOVED
.
6.3.9 Removing the Recuperator Housing

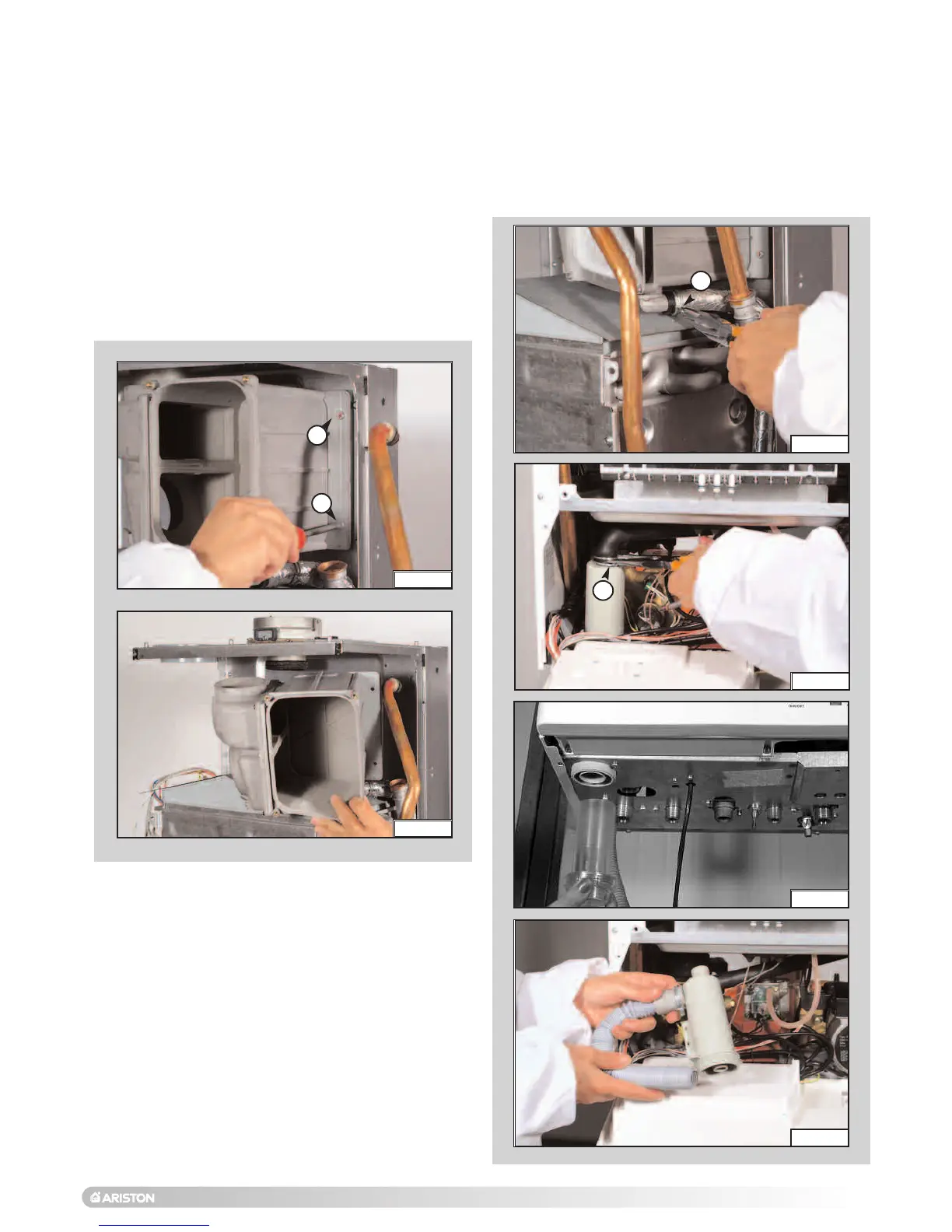

FIG. 6.36
Y
Y
FIG. 6.37
1. Remove the clamp “Z” (FIG.6.38);
2. Remove the clamp “A1” (FIG.6.39);
3. Unscrew and remove the trap from the boiler (FIG.6.40);
3. Remove the trap (FI
G
.6.41).
4
. Reassemble in reverse order
6.3.10 Removing the Condensate Trap
FIG. 6.38
Z
FIG. 6.39
FIG. 6.40
FIG.
6.41
A1
