Ariston microGENUS HE 28 MFFI

59
FI
G
. 6.91
D4
D4
FI
G
. 6.92

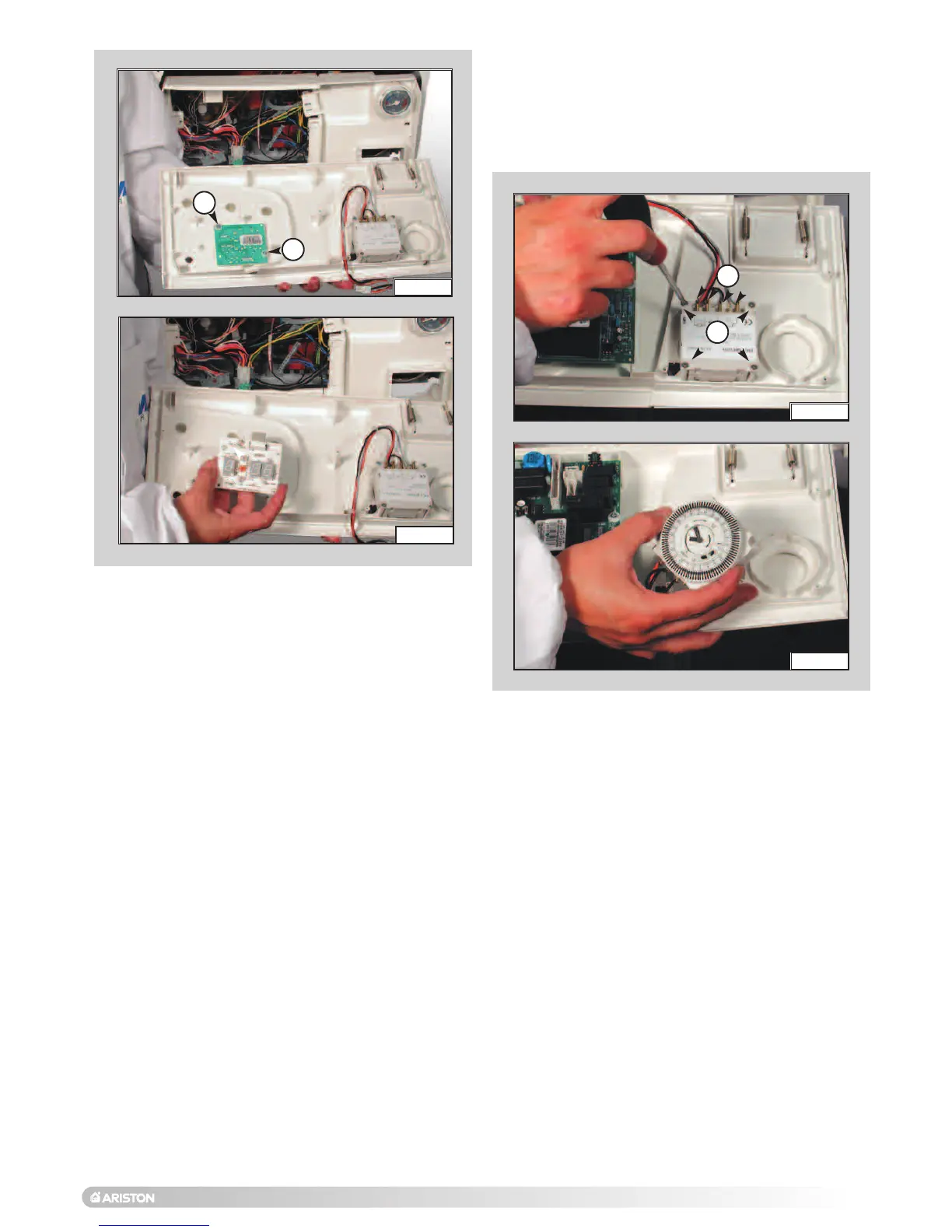

6.6.3 Removing the time clock
1. Disconnect the electrical connections “D5” from the
c
lock (F
IG.
6.93);
2. Remove screws “D6” (FIG. 6.93);
3. Lift out the time clock from the control panel (FI
G
. 6.94).
FI
G
. 6.93
FIG. 6.94
D5
D6
