12. ENCABIT-Plus Module
12.1. Description
An external ENCABIT-Plus module is mounted to the device for synchronous applications. The
absolute encoder connection and other functions used for synchronous motors are provided with
the support of ENCABIT-Plus module.
12.2. Mounting
ENCABIT-Plus module is installed to the bottom right of ADrive as ENCABIT-Plus mounting
ears comes to the appropriate slots on ADrive.

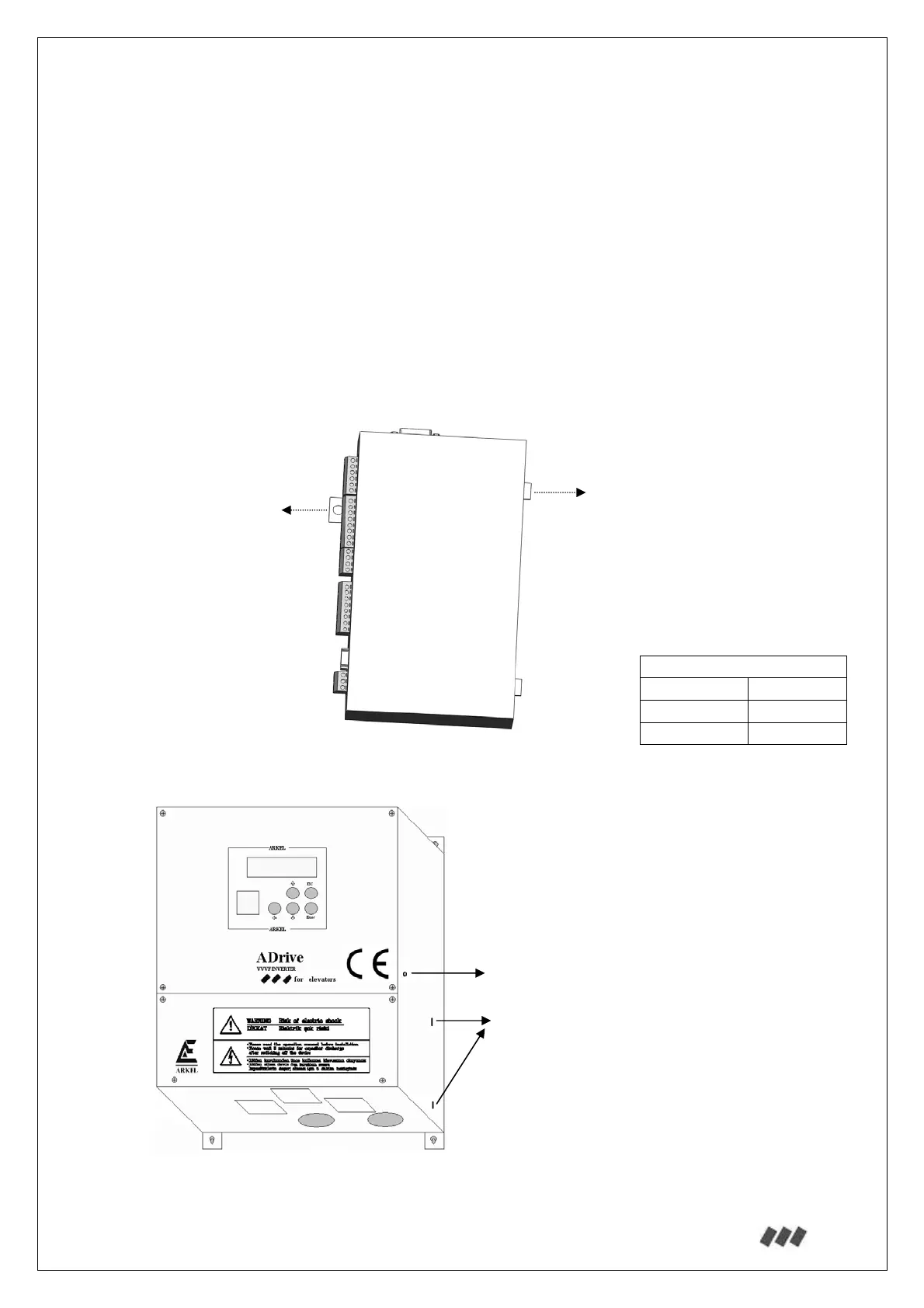

Dimensions (mm)
Height 173
Width 108
Depth 35
ENCABIT-Plus module fastening hole
(with M4x8 screw)
ENCABIT-Plus module mounting holes
Assembly of ENCABIT-Plus module to ADrive
ENCABIT-Plus module
mountin
g
ears
ENCABIT-Plus module
fastenin
g
p
late
ENCABIT-Plus
