ADrive
12
8. ADrive Line Filter (EMI)
Two types of EMI filter are used for ADrive Inverter models.
EMI Filter can be installed in a vertical or horizontal position. But it is recommended to install
the filter as load side comes close to ADrive input terminals.

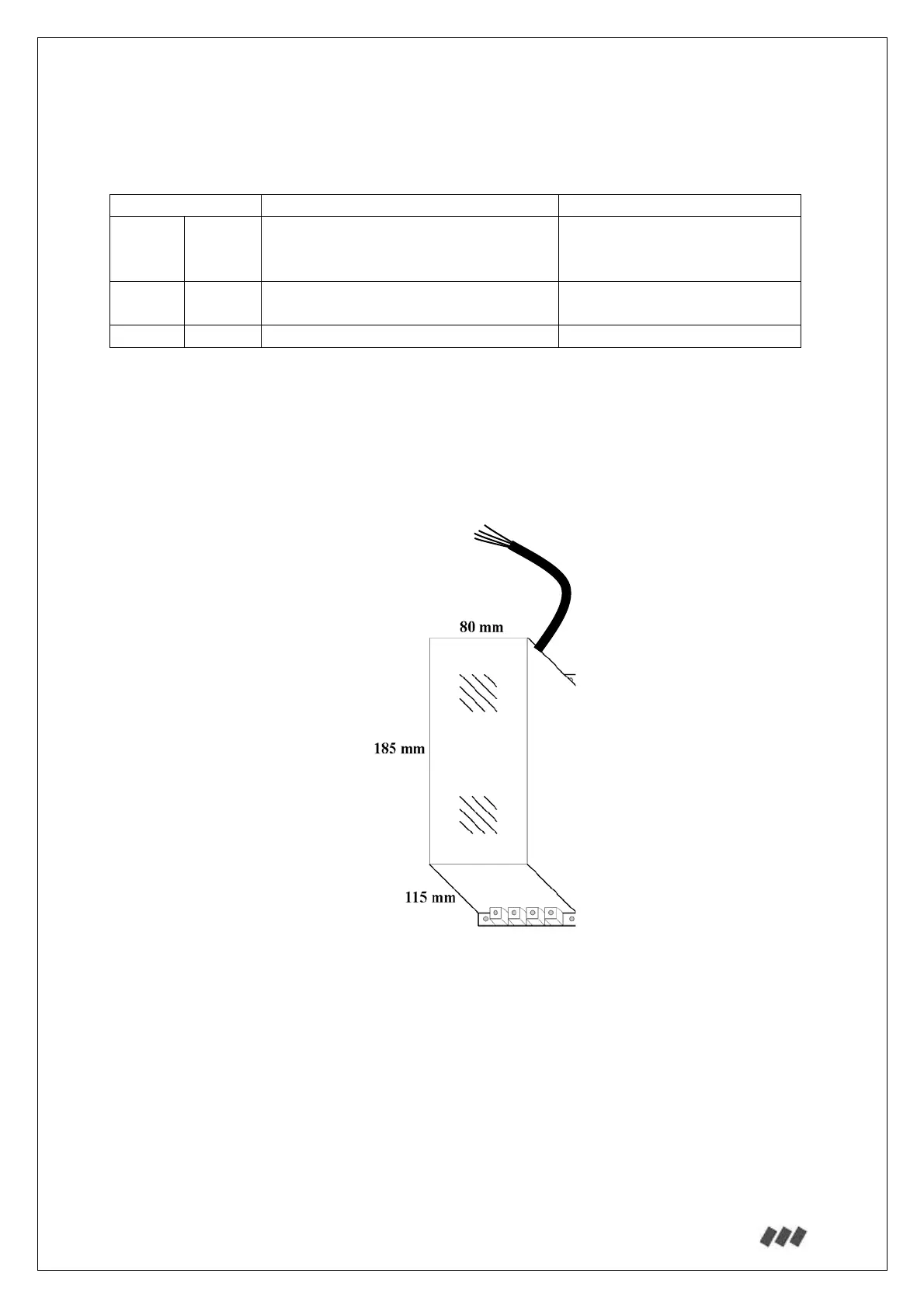

8.1. Dimensions of ADrive Line Filter
ADrive Recommended EMI Filter Description
Size-B 7.5 HP
10 HP
15 HP
EMC-30 3x400VAC, 50-60HZ, 30A
Size-C 20 HP
30 HP
EMC-50 3x400VAC, 50-60HZ, 50A
Size-D 50 HP - 3x400VAC, 50-60HZ, 80A
Cable length: 550 mm
To ADrive input terminals
(L1, L2, L3, E)
From mains supply
(L1, L2, L3, PE)
Line
Load
