ARKEL Elektrik Elektronik Ltd. Şti. www.arkel.com.tr
08.2012
ADrive
35
13.2.6. Motor & brake resistor temperature monitoring
Motor & brake resistor temperature monitoring can be carried out by ADrive (usually when the
inverter and the lift controller are located in separate places). Temperature monitoring connection
is made to PI2 input on ENCABIT-Plus module.
● If the temperature monitoring function will be used, the parameter “11.7-PTC check” must be
enabled.
13.2.7. Manual evacuation mode activation input
ADrive can be informed that the manual evacuation mode is active, through a high level at the
PI3 input on ENCABIT-Plus module.
When the input PI3 is activated, a special evacuation screen appears on ADrive display.
A similar screen is also appears on ADrive Remote Keypad display. The following information
is shown in the manual evacuation mode screen:
The direction of car
The speed of car
Over speed warning (The evacuation speed must not exceed 0.63 m/s)
SPEED : 0.4 m/s
DIR : ↑
When the manual evacuation mode is activated, the speed (m / s) is
shown on the top line and the direction (↑ or ↓) is shown on the
bottom line of the evacuation screen.
SPEED : 0.65 m/s
STOP!!! (V>0.63)
When the evacuation speed exceeds 0.63 m/s, a warning message
will be shown on the bottom line of the evacuation screen. In such a
case, the operation must be stopped.
According to EN 81-1/A2 6.6.2.c, during emergency evacuation, the following
information must be given in cases that the drive machine cannot be observed directly:
- The direction of car
- The speed of car
- Door unlocking zone
We recommend using one of ARKEL products LEVELED board for indicating the door
unlocking zone information.

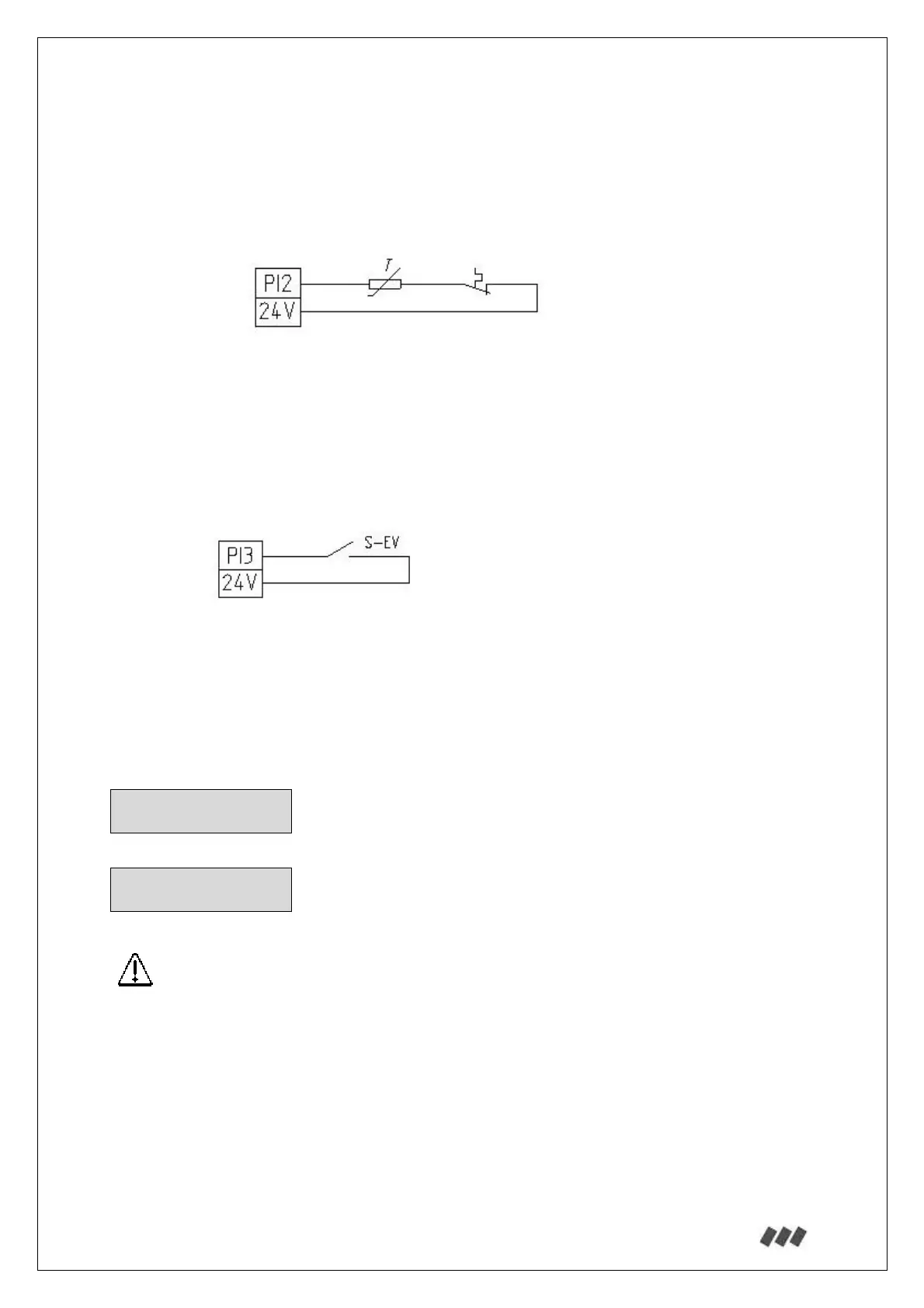

ENCABIT-Plus
PTC1
TH
S-EV: N.O. contact of manual evacuation mode
activation switch
ENCABIT
PTC1: Motor thermistor
TH : Brake resistor thermostat
PI2 = 24V: PTC circuit closed
PI2 = Open: PTC circuit open
