Arkel ADrive Size-B User Manual

ARKEL Elektrik Elektronik Ltd. Şti. www.arkel.com.tr
08.2012
ADrive
9

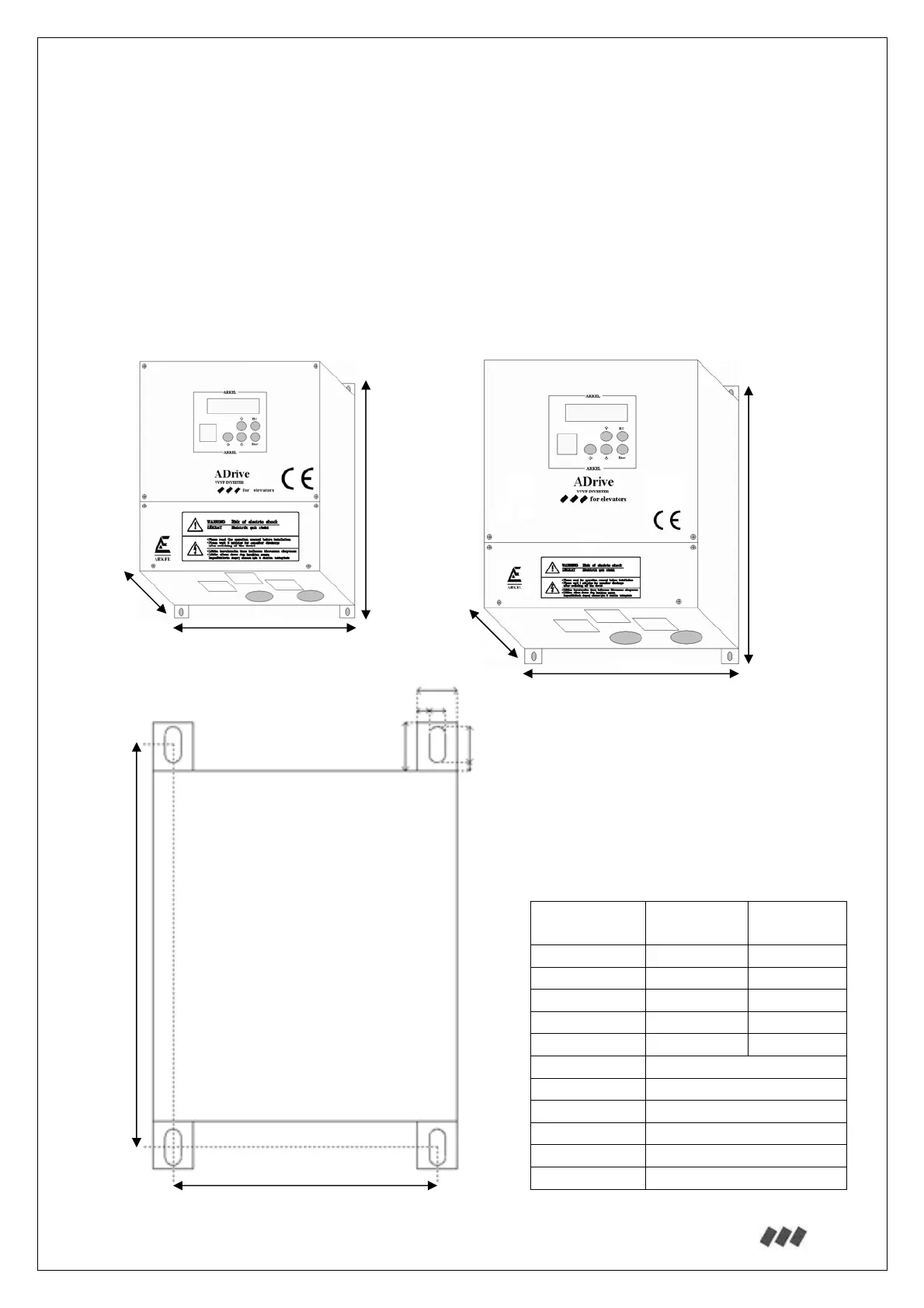

7. Dimensions and Mounting of ADrive
ADrive inverter must be installed in a vertical position and must be fitted with its terminal strips
and connecting bars to the bottom. Make sure that the cooling air intake and discharge are not
restricted in any way. To ensure this allow a gap of at least 10 cm above and underneath the unit.
Mount using the mounting holes and using at most 12 mm M6 nuts.
7.1. Physical Dimensions of ADrive Size-B and Size-C
Dimensions
(mm)
ADrive
Size-B
ADrive
Size-C
W 260 289
H 387 442
D 184 205
H1 360 420
W1 230 ± 5 250 ± 5
A 30
B 24
C 8
E 18
F 8
G 8
H
ADrive Size-B (7.5HP / 10HP / 15HP)
ADrive Size-C (20HP / 30HP)
H
W
W
D
D
H1
W1
A
B
C
E
F
G
